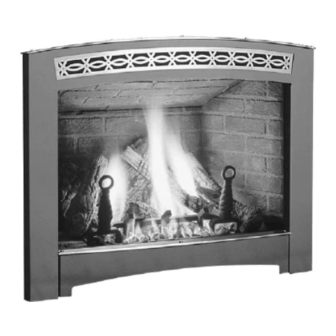

Vented gas fireplace heater
Hide thumbs Also See for DV42DX:

Advertisement

SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
OWNER'S MANUAL
WHAT TO DO IF YOU SMELL GAS
• Open windows/extinguish any open flame.
• Do not try to light any appliance.
• Do not touch any electrical switch or use
any phone in your building.
• Immediately call your gas supplier from
a neighbour's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call
the fire department.
If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
Installation and service must be performed by a qualified installer, service
Massachusetts installations (Warning): This product must be installed by a licensed plumber or
gas fitter when installed within the Commonwealth of Massachusetts. Other Massachusetts code
requirements: Flexible connector must not be longer than 36in., a shut off valve must be installed;
only direct vent sealed combustion products are approved for bedrooms/bathrooms. A carbon
monoxide detector is required in all rooms containing gas fired direct vent appliances.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARNING
agency or the gas supplier.
Do not store or use gasoline or other flammable vapours and
liquids in the vicinity of this or any other appliance.
DV42DX
B Y : S H E R W O O D I N D U S T R I E S L T D
This appliance may be installed
in an after market permanently
located, manufactured (mobile)
home, where not prohibited by
This appliance is only for use
with the type of gas indicated
on the rating plate. This
appliance is not convertible for
use with other gases, unless a
FOR YOUR SAFETY
local codes.
certified kit is used.
50-645
