3.1
Defining the VM-4HN 1:4 HDMI DA

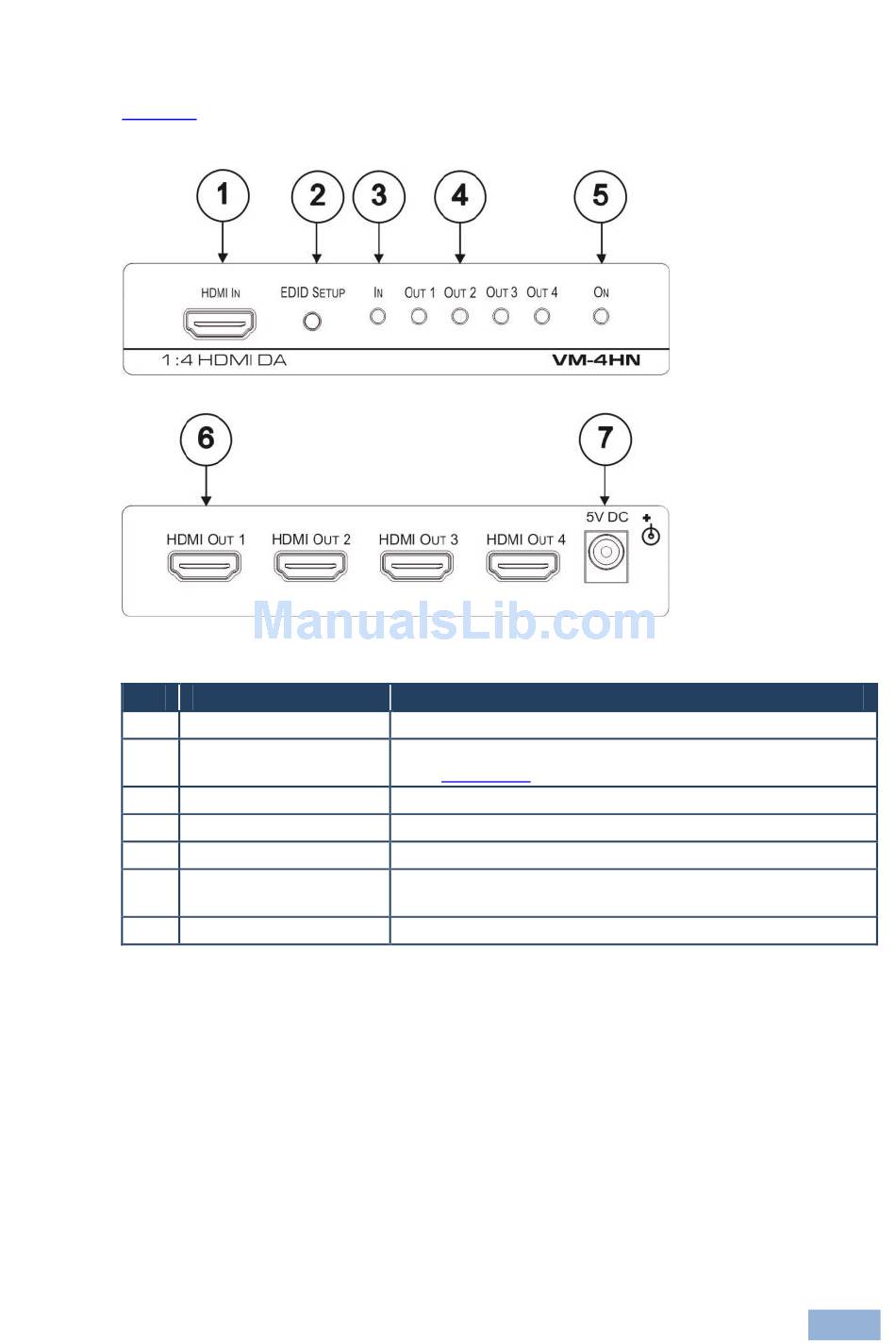

Figure 1
Figure 1: VM-4HN 1:4 HDMI DA
#
Feature
1
HDMI IN Connector
2
EDID SETUP Button
3
IN LED
4
OUT 1-4 LEDS
5
ON LED
6
HDMI OUT 1-4
Connectors
7
5V DC Connector
VM-4HN - Overview
defines the VM-4HN.
Function
Connects to the HDMI source
Press to capture the input EDID or select the default EDID
Section 4
(see
.1)
Lights when an active input signal is detected
Lights when an active output acceptor is detected
Lights when the device is powered on
Connect to up to 4 HDMI acceptors
Connects to the 5V DC power supply
5
