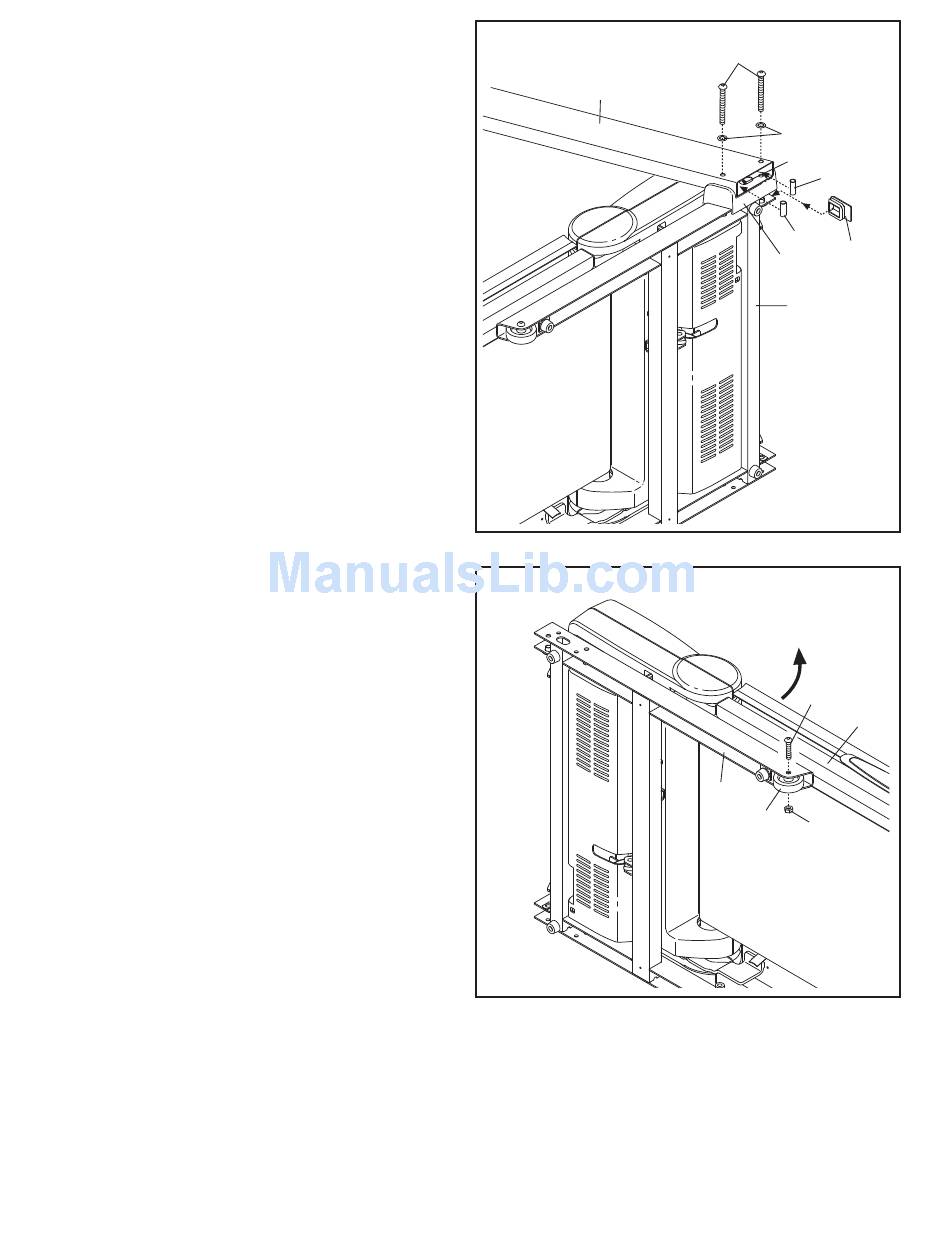

4. Hold a Bolt Spacer (95) inside the lower end of
the Right Upright (92). Insert a 3/8" x 4" Bolt (8)
with a 3/8" Star Washer (11) into the Right
Upright and the Bolt Spacer. Repeat this step
with a second Bolt Spacer (95), 3/8" x 4" Bolt
(8), and 3/8" Star Washer (11).
Hold the Right Upright (92) against the Right
Upright Spacer (100). Be careful not to pinch
the Wire Harness (91). Tighten the 3/8" x 4"
Bolts (8) until the heads of the Bolts touch the
Right Upright; do not fully tighten the Bolts
yet.
Press a Base Cap (93) into the Base (96).
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (48) so the treadmill is more stable; do
not fully fold the Frame yet.
Attach a Wheel (99) to the Base (96) with a 3/8"
x 2" Bolt (9) and a 3/8" Nut (10). Do not over-
tighten the Nut; the Wheel must turn freely.
