1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side. Partially fold the
Frame (48) so that the treadmill is more stable;
do not fully fold the Frame yet.
Cut the shipping tie securing the Wire Harness
(91) to the Base (96). Locate the plastic tie in
the indicated hole in the Base, and use the tie to
pull the Wire Harness out of the hole.
Attach two Base Feet (97) to the Base (96) in the
locations shown with two Base Foot Spacers
(98) and two #8 x 1" Tek Screws (6).
Then, attach the other two Base Feet (97) with
two #8 x 1" Tek Screws (6).

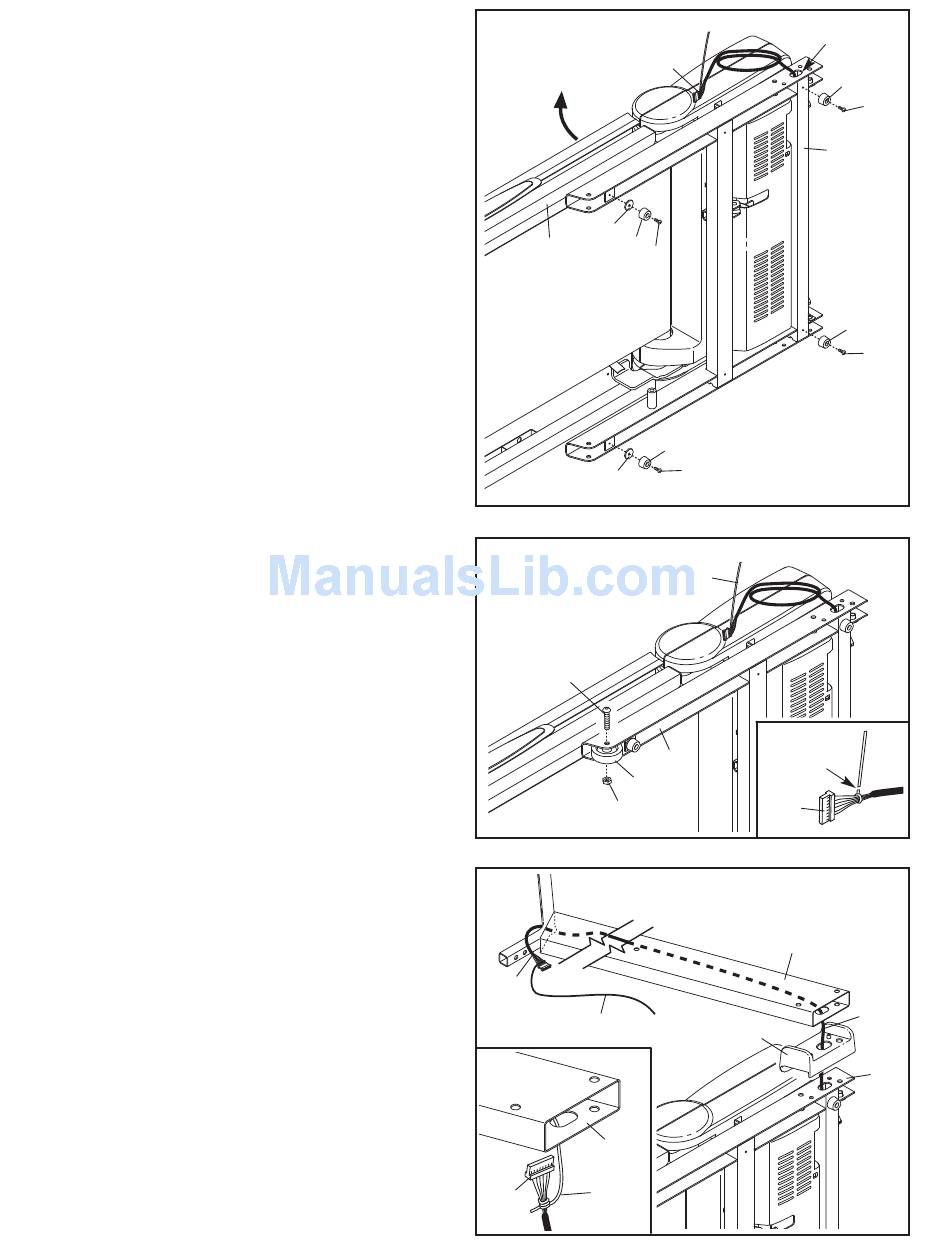

2. See the inset drawing. Cut the plastic tie near
the Wire Harness (91).
Attach a Wheel (99) to the Base (96) with a 3/8"
x 2" Bolt (9) and a 3/8" Nut (10). Do not over-
tighten the Nut; the Wheel must turn freely.
3. Identify the Right Upright (92) and the Right

Upright Spacer (100), which are marked with

stickers. Insert the Wire Harness (91) through

the Right Upright Spacer as shown. Then, set
the Right Upright Spacer on the Base (96).
Have a second person hold the Right Upright
(92) near the Base (96). See the inset drawing.
Tie the wire tie in the Right Upright securely
around the end of the Wire Harness (91). Then,
pull the other end of the wire tie until the Wire
Harness is routed completely through the Right
Upright.
