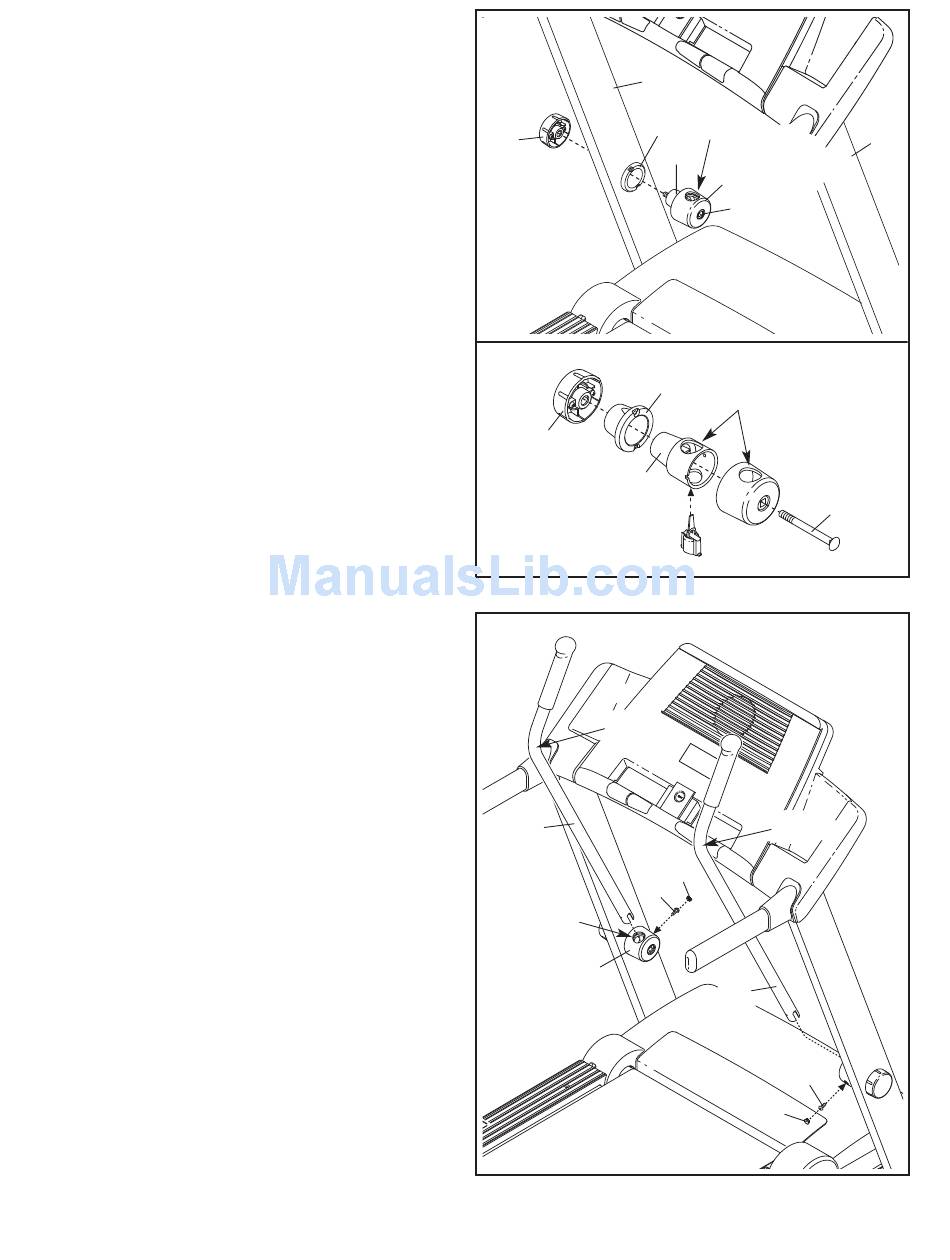

15. Remove the Resistance Knob (88) from a resis-
tance assembly. Make sure that the 3/8" x 4
3/4" Bolt (90) stays inside of the resistance
assembly and that the resistance assembly
does not come apart. Note: See the lower
drawing to reassemble the resistance assembly
if necessary.
Apply a small amount of the included grease
around the Resistance Cone (85). Insert the
Resistance Cone into the Upright Insert (84) in
the Left Upright (77), with the two large holes on
top as shown. Then, tighten the Resistance
Knob (88) onto the 3/8" x 4 3/4" Bolt (90).
Attach the other resistance assembly to the
Right Upright (92) in the same way.
16. Insert the end of a Crosswalk Arm (82) into the
hole in the top of a resistance assembly. Make
sure that the bend in the Crosswalk Arm is
positioned as shown.
Tighten the #8 x 3/4" Screw (1) into the resis-
tance assembly and Crosswalk Arm (82) from
the direction shown. Press a Small Cap (89) into
the hole for the Screw.
Attach the other Crosswalk Arm (82) in the
same way.
