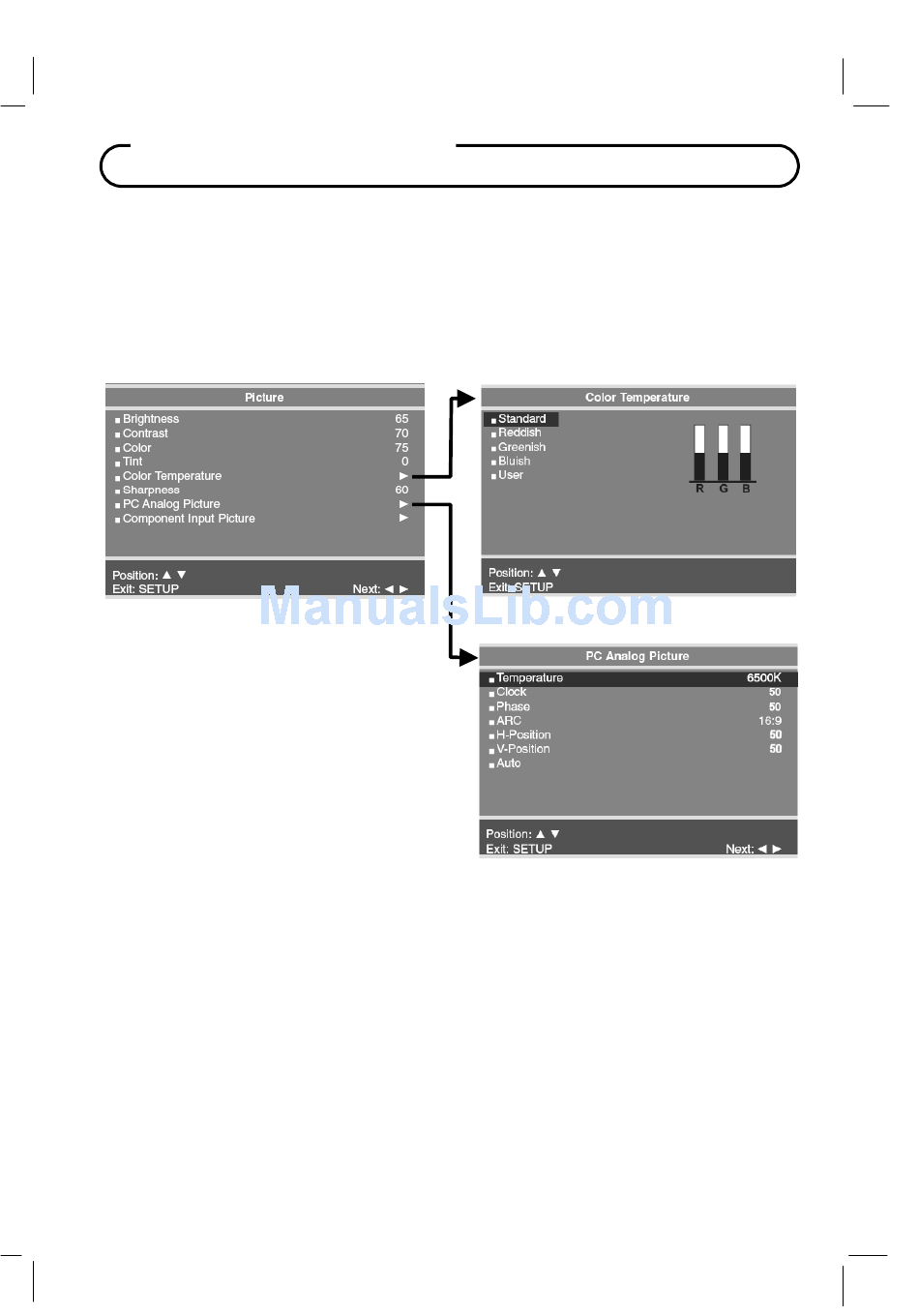

Picture Controls

Color Temperature

The color temperature menu appears only when the P22LCDC is in TV, Composite Video, or
S-Video modes. "Standard", "Reddish", "Greenish", "Bluish" color temperatures are available
for selection, however the individual colors are not adjustable. The "USER" setting allows
individual adjustment of each of the TV's primary colors. The color temperature setting is best
set using a calibrated signal source capable of generating a test signal containing both pure
white and pure black picture components.

PC Analog Picture

Adjustment of a computer's displayed picture can
be made only when the TV is in "PC-Analog"
mode.

Temperature

Temperature is a measure of the warmth of an
image. Two temperatures are available 6500K or
9300K.

Clock

The Clock adjustment is used to minimize any
vertical bars or stripes visible on the screen's
background. Adjustment of the clock setting also
changes the horizontal screen size.

Phase

The Phase adjustment removes any horizontal
noise and is helpful in sharpening text characters.

ARC (Aspect Ratio Control)

Selects the ratio of the screen size
(Horizontal : Vertical); 4:3, 14:9, or 16:9.

H-Position (Horizontal Position)

The H-Position moves the picture left or right
across the screen.

V-Position (Vertical Position)

The V-Position moves the picture up or down
across the screen.
AUTO
Automatic adjustment of screen position,
clock, and clock phase.
