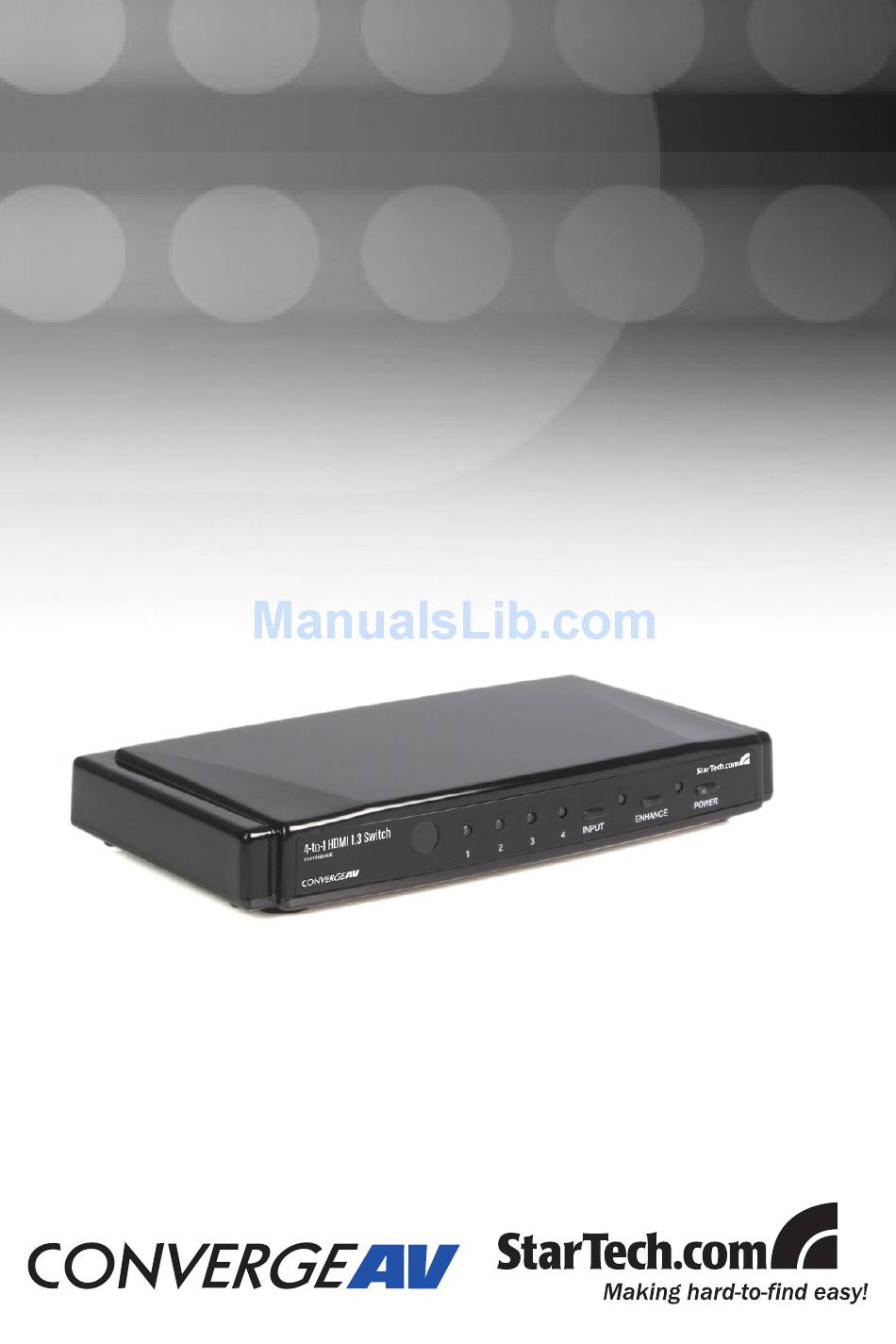

- Page 1 4-to-1 HDMI 1.3 Switch VS410HDMIE...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ................... 1 Features ..................1 Package contents ................1 Operating Controls and Functions ..........2 Front Panel ..................2 Remote Control ................3 Connection and Installation ............3 Specifications ................4 Technical Support ................. 5 Warranty Information ..............5... -
Page 4: Introduction
Instruction Manual Introduction Thank you for purchasing a StarTech.com HDMI 1.3 Switch. Now, you can connect up to four devices with HDMI output (e.g. High Definition DVD players, Blu-Ray players, Satellite Receivers, and Video Game Consoles) to a single HDMI input, and eliminate the need to manually exchange cables. -
Page 5: Operating Controls And Functions

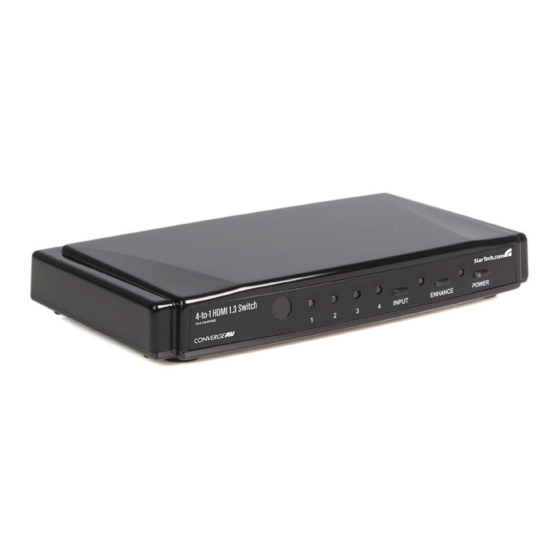

Instruction Manual Operating Controls and Functions Front Panel Remote control sensor Input select/Indicators: Press the “INPUT” button repeatedly to switch to your desired input source and the LED will illuminate to indicate which input source is selected. Signal Enhancement/Indicator: Press the “Signal Enhance” button to turn on this feature to improve signal quality after long distance transmission. -
Page 6: Remote Control
Instruction Manual Remote Control Power: Press the button to turn on/off the unit. Direct input selector: Press 1, 2, 3 or 4 to select the desired input source. Connection and Installation Input 1 Input 2 Input 3 Input 4 Display... -
Page 7: Specifications
Instruction Manual Frequency 2.25Gbps (single link) Bandwidth Input ports 4 x HDMI female ports (Type A connector) Specifications Output port 1 x HDMI female port Power Supply 5VDC/1A (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 206(W) x 111(D) x 32(H) Weight 250g Operating Operating from 0°C ~ 70°C... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 9 Cable Finder, Parts Finder and the KVM Reference Guide. StarTech.com makes it easy to complete almost any IT or A/V solution. Find out for yourself why our products lead the industry...
