StarTech.com VS424HDPIP Quick Start Manual

Quick Start Guide

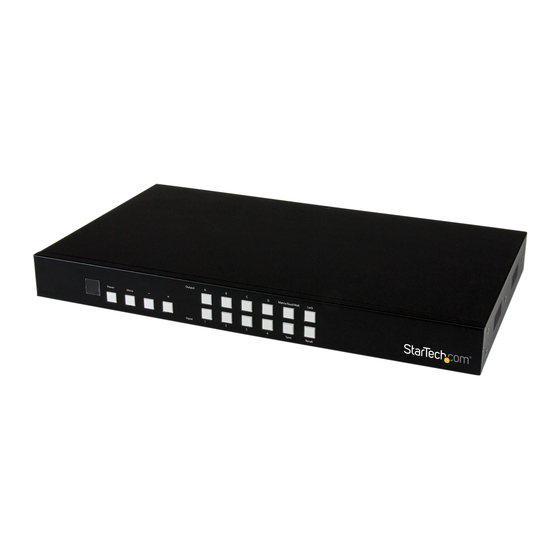

4x4 HDMI Matrix Switch with Picture-and-Picture – 1080p
VS424HDPIP
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
VS424HDPIP
Please visit www.startech.com/
Packaging Contents
• 1 x 4x4 HDMI matrix switch
• 1 x remote control
• 2 x mounting brackets
• 1 x software installation disc
• 1 x universal power dapter (NA, EU, UK, ANZ)
• 1 x instruction manual
System Requirements
• Up to 4 x HDMI-enabled Video Source Devices (i.e. computer,
Blu-ray Player)
• Up to 4 x HDMI-enabled Display Devices (i.e. television, projector)
• Up to 8 x M/M HDMI cables for displays and video sources

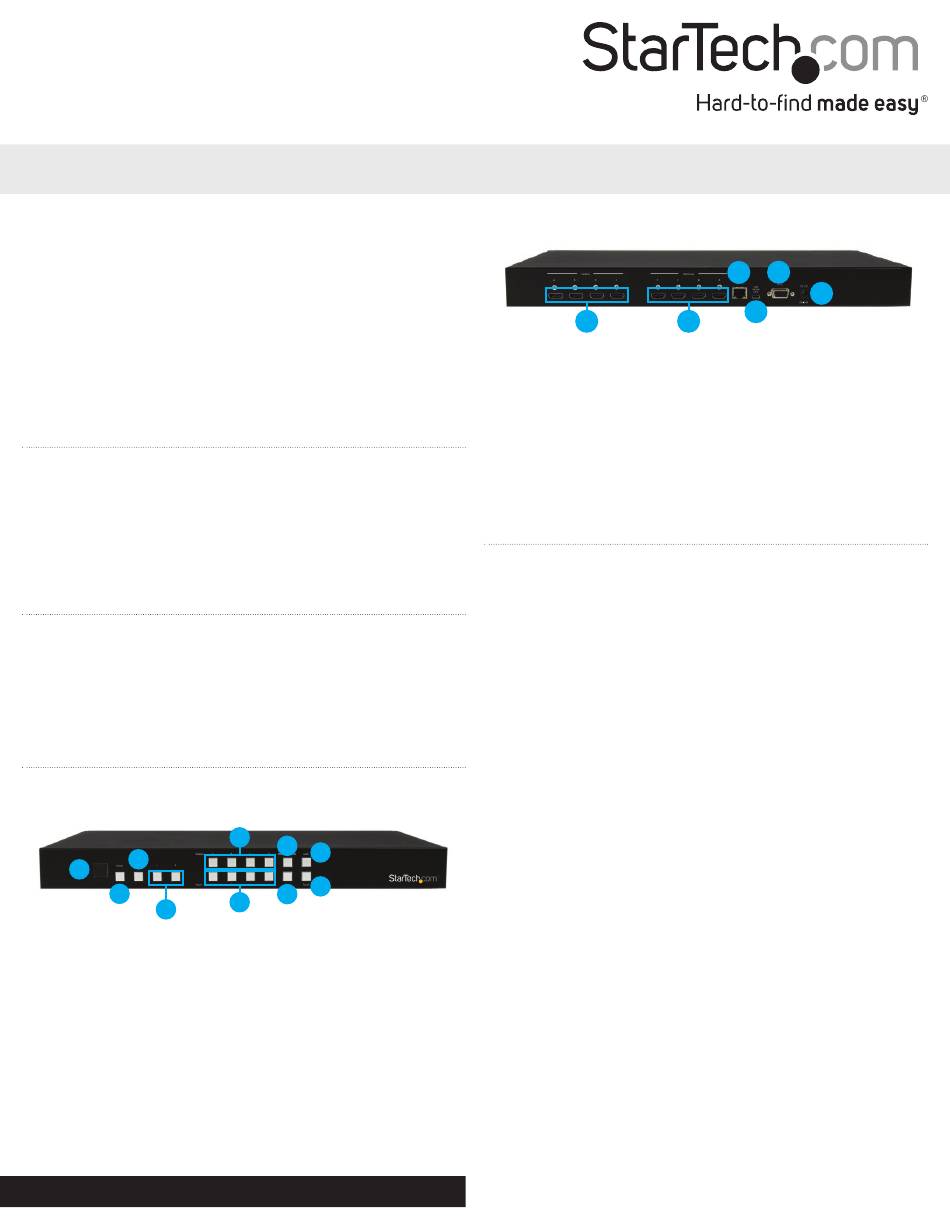

Product Overview
Front View
3
1
2
4
1. IR Sensor
2. Power Button / LED
3. Menu Button / LED
4. Menu Operation Buttons / LEDs
5. Output Selection Buttons / LEDs
6. Input Selection Buttons / LEDs
7. Mode Selection Button / LEDs
8. Save Button / LED
9. Lock Button / LED
10. Recall Button
For the most up-to-date information, please visit: www.startech.com
for full operating instructions.
5
7
9
10
8
6
Rear View
1
1. HDMI Input Ports
2. HDMI Output Ports
3. Ethernet control port
4. USB Service Port
5. RS232 Serial Port
6. Power Adapter Port
Hardware Installation
1. Connect up to four HDMI cables (not included) from each of your
HDMI video source devices (i.e. computers, Blu-ray Players) to each
of the HDMI input ports on the matrix switch.
2. Connect up to 4 HDMI cables (not included) from each HDMI
output port on the matrix switch to the HDMI input ports on your
display devices (i.e. televisions, projectors).
3. Connect the power adapter from an available power outlet to the
Power adapter port the Matrix switch.
4. (Optional) If you would like to control your Matrix Switch with
RS232, connect a DB- 9 pin serial cable (not included) from the
RS232 serial port on the matrix switch to your RS232 serial port on
your computer system.
5. (Optional) If you would like to control your Matrix Switch over your
network, connect a network cable (not included) from the Ethernet
control port on the matrix switch to an available Ethernet control
port on your network device.
3 5
6
4
2
*actual product may vary from photos
Manual Revision: 10/03/2017
