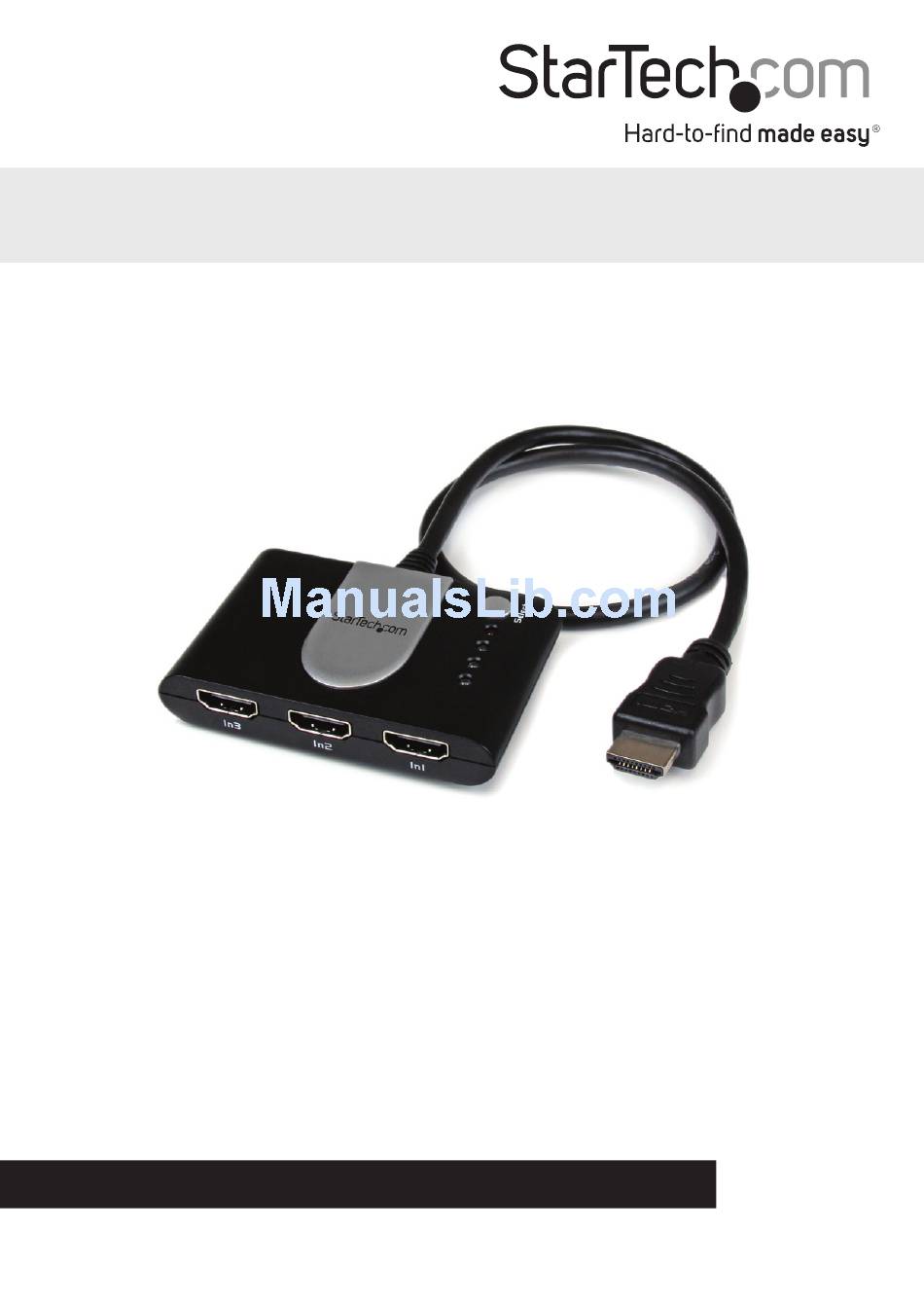

3 Port HDMI® Auto Switch
VS123HD
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/15/2013
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com VS123HD
Summary of Contents for StarTech.com VS123HD
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/15/2013...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Hardware Installation ................4 Hardware Operation ................4 Specifications ..................5 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 4: Introduction
Introduction The VS123HD 3-port HDMI® Auto Switch features three prioritized HDMI input ports. If the active HDMI source is turned off, disconnected, or otherwise lost, the switch automatically selects the next available HDMI signal as the priority output, ensuring the display is always receiving a signal. - Page 5 VS123HD 3 Port High Speed HDMI® Auto Switch 1. HDMI® Input Port #1 2. HDMI® Input Port #2 3. HDMI® Input Port #3 4. Select Button (Toggles between Ports) 5. HDMI® Output Dongle Cable 6. Power LED 7. Active Port LED Indicators...
-
Page 6: Switch To Port
Remote Control 1. Switch to Port 1 2. Switch to Port 2 3. Switch to Port 3 4. Power On/Off 5. Switch to Port Above 6. Switch to Port Below Instruction Manual... -
Page 7: Hardware Installation
Port #3, and your Blu-ray player to Port#2. When the Blu-ray player is turned on to watch a movie the VS123HD will automatically switch to the Blu-ray player. When the movie is over, simply turn off your Blu-ray player and the VS123HD will automatically switch back to your set top box. -
Page 8: Specifications
Specifications Ports AV Input 3x HDMI® AV Output 1x HDMI® Interface HDMI® Audio Industry Standards High Speed HDMI®, HDCP Max Distance 10m/33ft Max Resolution 1080p / 1920x1200 Instruction Manual... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
