Instruction Manual

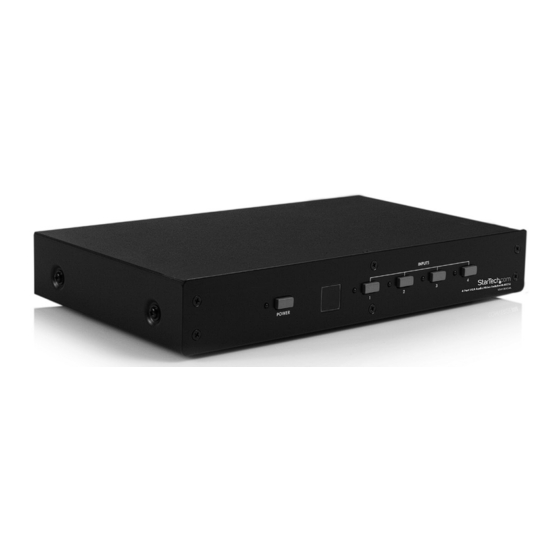

4 Port VGA Video Audio Switch with RS232 control
VS410RVGAA
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 04/11/2012
Advertisement
Table of Contents
Related Manuals for StarTech.com VS410RVGAA
Summary of Contents for StarTech.com VS410RVGAA
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 04/11/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements .........................1 Front View ...............................2 Rear View ..............................2 Remote Control .............................2 Installation ....................3 Hardware Installation ..........................3 How to Use ....................4 RS232 Serial Control ..........................4 RS232 Pinout ............................4 Commands ..............................4 Troubleshooting ..................5 Specifications ....................7 Technical Support ..................8 Warranty Information ................8... -
Page 4: Introduction
Introduction This 4 Port VGA Video and Audio Switch lets you switch between four separate VGA signals, as well as the corresponding audio, for output to a single display or projector. An ideal solution for situations where VGA and audio input ports are scarce, the VGA switch eliminates the hassle of having to swap out connections to your display and audio receiver, while letting you select the video source at the push of a button. -
Page 5: Front View
Front View Rear View Remote Control Instruction Manual... -
Page 6: Installation
Installation Hardware Installation Make sure all devices are powered off before beginning the installation. Connect a male/male VGA cable from the “Output” connector on the switch to the VGA connector on the display device (e.g. monitor). Connect a male/male VGA cable from one of the VGA video sources (e.g. computer) to input 1 on the video switch. -
Page 7: How To Use
A regular PC should be connect via straight-through male/female serial cable. Baud Rate: 9600 bps Data Bits: 8 Parity: None Stop Bits: 1 RS232 Pinout VS410RVGAA Signal Commands Command Description “I” + “1” Select Port 1 “I” + “2”... -
Page 8: Troubleshooting
Troubleshooting Symptom Solution Make sure the front panel of the video switch is not blocked or obscured by other objects. Make sure you are pointing the remote control directly at the front panel of the video switch. Remote Control does not work/ Try switching using the buttons on the front panel stopped working of the video switch:... - Page 9 Symptom Solution Turn the display off, then back on. Look for an auto adjust button or setting on the display. Make sure the video source is outputting a Image is not centered properly on standard video resolution that is supported by the the monitor/display video switch and the display.
-
Page 10: Specifications
Specifications VGA (RGBHV): 0.7Vp-p or 1Vp-p with sync Video Signal 75 Ohm 4 x DE-15 VGA female 4 x 3.5mm Audio mini-jack female External Connectors (Input) 1 x DB9 female 1 x DC Power female 1 x DE-15 VGA female External Connectors (Output) 1 x 3.5mm Audio mini-jack female 1 x Power... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 Hard-to-find made easy. At StarTech.com, that isn’t a slogan. It’s a promise. StarTech.com is your one-stop source for every connectivity part you need. From the latest technology to legacy products — and all the parts that bridge the old and new — we can help you find the parts that connect your solutions.
