StarTech.com VS421HDDP Manual

4x1 HDMI +DP to HDMI Converter Switch - 4K 60Hz

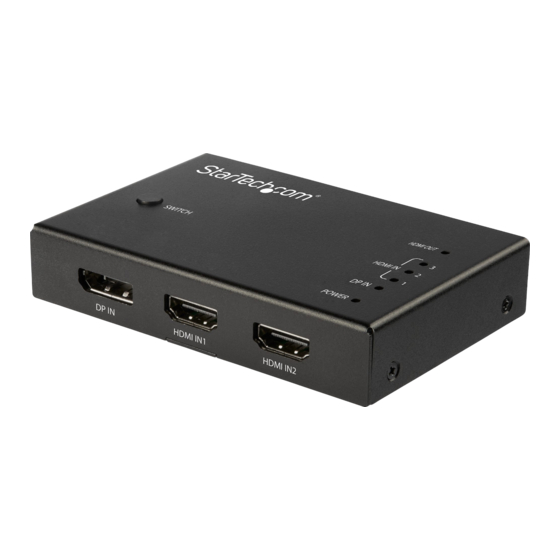

Product Diagram (VS421HDDP)
1
2
3
4
6
7
8
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
5
9
Port
1 SWITCH Button • Cycle through HDMI and DisplayPort Sources
2 DP IN Port
3
HDMI IN1 Port
4 HDMI IN2 Port
5 LED Indicators • Indicates the current status of the Device and Ports
6 IR EXT. Port
7
HDMI IN3 Port
8 HDMI OUT Port
9 DC 5V Power Port
Requirements
• HDMI Source Devices (up to 4K @ 60Hz) x 3
• HDMI M/M Cables (sold separately) x 4
• DisplayPort Source Device (up to 4K @ 60Hz) x 1
• DisplayPort M/M Cable (sold separately) x 1
• HDMI Display Device x 1
Note: Premium High Speed HDMI and DisplayPort 1.2 Cables are required for optimal
performance at 4K 60Hz.
For the latest requirements, please visit
www.startech.com/VS421HDDP.
Installation
Note: Ensure your HDMI and DisplayPort Source Devices and the HDMI Display are
powered off before you begin the installation.
1. Connect an HDMI Cable (sold separately) to an Output Port on the HDMI Source
Device and to one of the HDMI IN Ports on the Converter Switch.
2. Repeat step #1 for each of your remaining HDMI Source Devices.
Note: Each HDMI Port is numbered, please take note of which number is assigned to
each HDMI Source Device.
Quick-Start Guide
Function
Front
• Connect a DisplayPort Source Device
• Connect an HDMI Source Device
• Connect an HDMI Source Device
Rear
• Connect the IR Receiver
• Connect an HDMI Source Device
• Connect an HDMI Display Device
• Connect a Power Source
Manual Revision: June 3, 2019 3:29 PM
