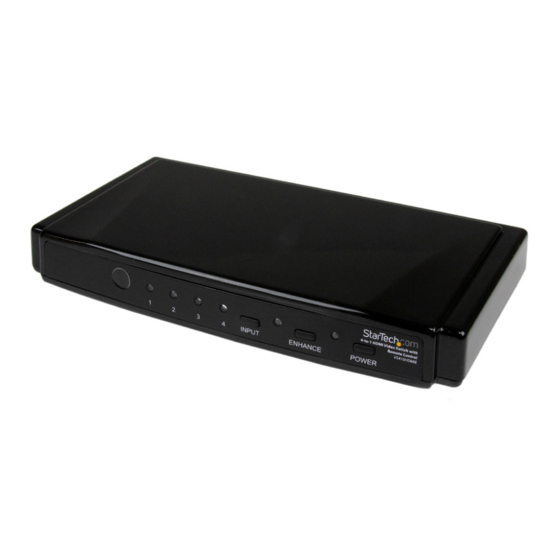

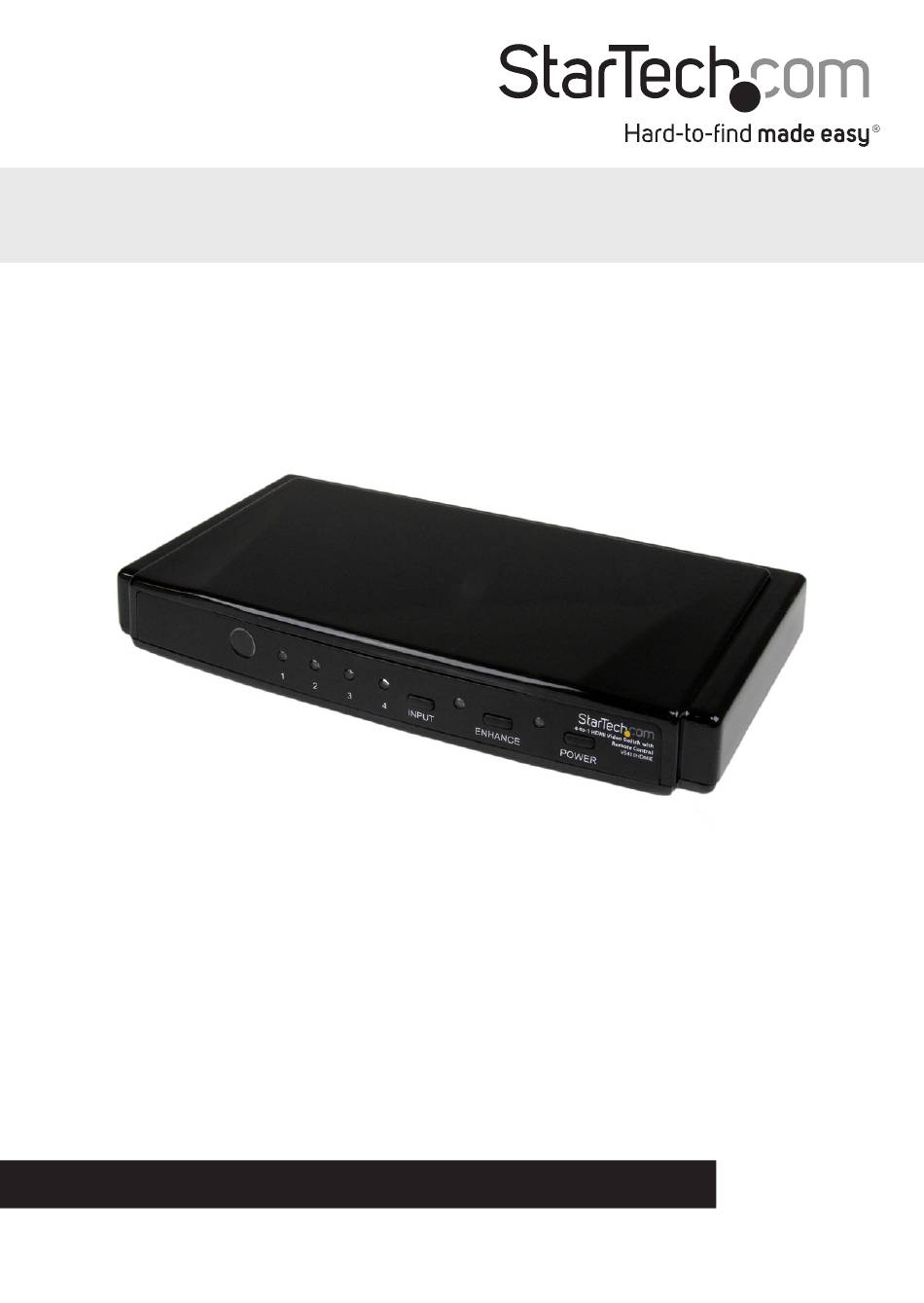

4 Port HDMI® Switch
VS410HDMIE
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/31/2016
Advertisement
Table of Contents
Related Manuals for StarTech.com VS410HDMIE
Summary of Contents for StarTech.com VS410HDMIE
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 08/31/2016...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ...................1 Features ................................ 1 Package contents ............................1 Operating Controls and Functions ............2 Front Panel ..............................2 Rear Panel ..............................2 Remote Control ............................3 Connection and Installation ..............3 Specifications ..................4 Technical Support ..................5 Warranty Information ................5 Instruction Manual... -
Page 4: Introduction
Introduction Thank you for purchasing a StarTech.com HDMI 1.3 Switch. Now, you can connect up to four devices with HDMI output (e.g. High Definition DVD players, Blu-Ray players, Satellite Receivers, and Video Game Consoles) to a single HDMI input, and eliminate the need to manually exchange cables. -
Page 5: Operating Controls And Functions
Operating Controls and Functions Front Panel 1. Remote control sensor 2. Input select/Indicators: Press the “INPUT” button repeatedly to switch to your desired input source and the LED will illuminate to indicate which input source is selected. 3. Signal Enhancement/Indicator: Press the “Signal Enhance” button to turn on this feature to improve signal quality after long distance transmission. -
Page 6: Remote Control
Remote Control 1. Power: Press the button to turn on/off the unit. 2. Direct input selector: Press 1, 2, 3 or 4 to select the desired input source. Connection and Installation Input 1 Input 2 Input 3 Input 4 Display Instruction Manual... -
Page 7: Specifications
Specifications Frequency 2.25Gbps (single link) Bandwidth Input ports 4 x HDMI female ports (Type A connector) Output port 1 x HDMI female port Power Supply 5VDC/1A (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 206(W) x 111(D) x 32(H) Weight 250g Operating Operating from 0°C ~ 70°C Temperature Instruction Manual... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 9 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
