VGA+HDMI® to VGA Audio/Video Converter
Switch
VS221HD2VGA
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 10/17/2014
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com VS221HD2VGA
Summary of Contents for StarTech.com VS221HD2VGA
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 10/17/2014...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Front View ..............................1 Rear View ..............................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Hardware Installation ................2 Mode Selection and Switch Operation ..........3 Manual Mode.............................. 3 Priority Mode .............................. 3 Automatic Mode ............................ -
Page 4: Product Diagram

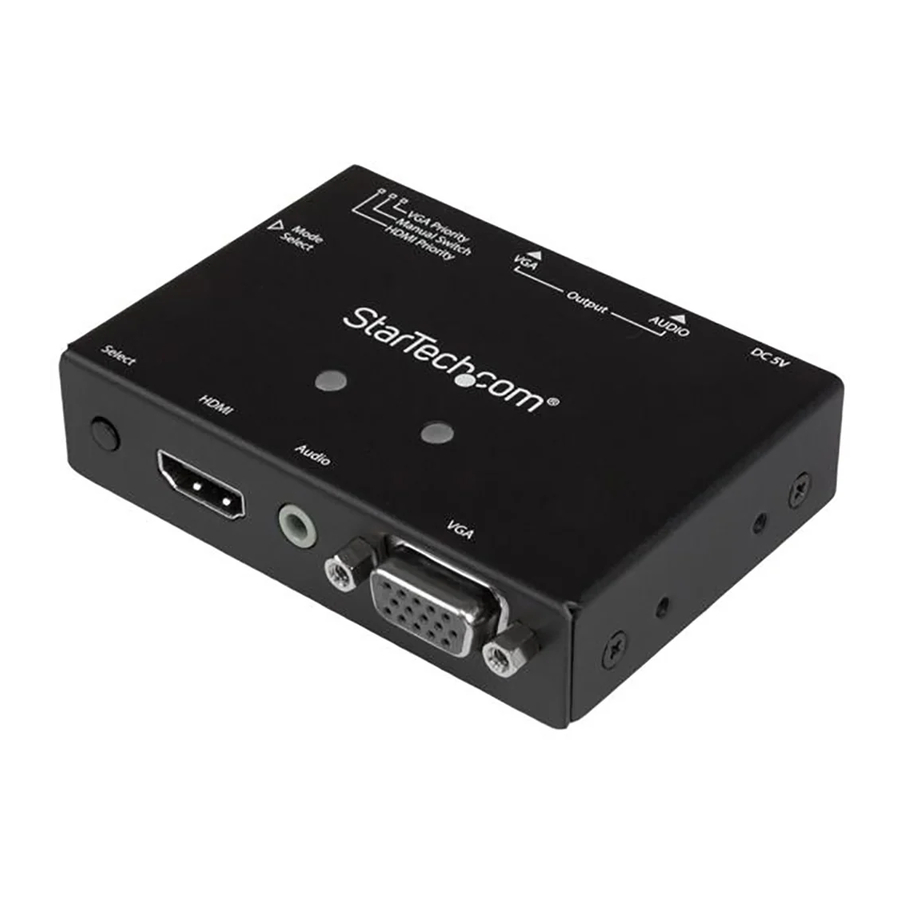

Product Diagram Front View Input Selection Button HDMI Audio/Video Input#1 Port Active Port LED Indicators 3.5mm Audio Input#2 Port VGA Input #2 Port EDID Selection Rear View Power Adapter Port VGA Video Output Port 3.5mm Audio Output Port Mode Selection Switch Instruction Manual... -
Page 5: Introduction
VS221HD2VGA. 5. (Optional) If your VGA-enabled Display Device supports audio, connect a 3.5mm audio cable (not included) from the VS221HD2VGA to the Audio input port on your Display Device. Note: You can alternatively use a separate audio output device such as PC speakers, or a Home Theatre system. -
Page 6: Mode Selection And Switch Operation
Manual Mode Manual Mode enables you to switch between video sources with push button operation. 1. Set the Mode Selection Switch to “Manual Switch” to place the VS221HD2VGA into Manual Mode. 2. Press the Input Selection Button to toggle between each Video Source Device. The Active Port LED Indicator will light as video sources are switched, indicating which port is selected. -
Page 7: Edid Copy
Using a small flat-headed screw driver (not included), set the EDID dial to position 0 EDID Copy Using EDID copy, the VS221HD2VGA will save the EDID settings of your video display locally and communicate these settings to your video source devices. This configuration is ideal if your video source devices and your video display intermittently experience issues due to EDID communication, such as signal loss. - Page 8 Complete Available EDID Settings Table EDID Dial Position Resolution Settings EDID Pass-Through EDID Copy 1024 x 768 1280 x 720 1280 x 1024 1366 x 768 1440 x 900 1600 x 900 1600 x 1200 1660 x 1050 1920 x 1080 1920 x 1200 Not Active 2048 x 1152...
-
Page 9: Specifications
Specifications 1 x HDMI Video Input Signals 1 x VGA Video Output Signals 1 x VGA Maximum Video Resolution 1920x1200 (WUXGA) 7.1 Digital Audio (HDMI) Audio Support 3.5mm Stereo Audio (VGA) Supported Switch Modes Priority, Manual Instruction Manual... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
