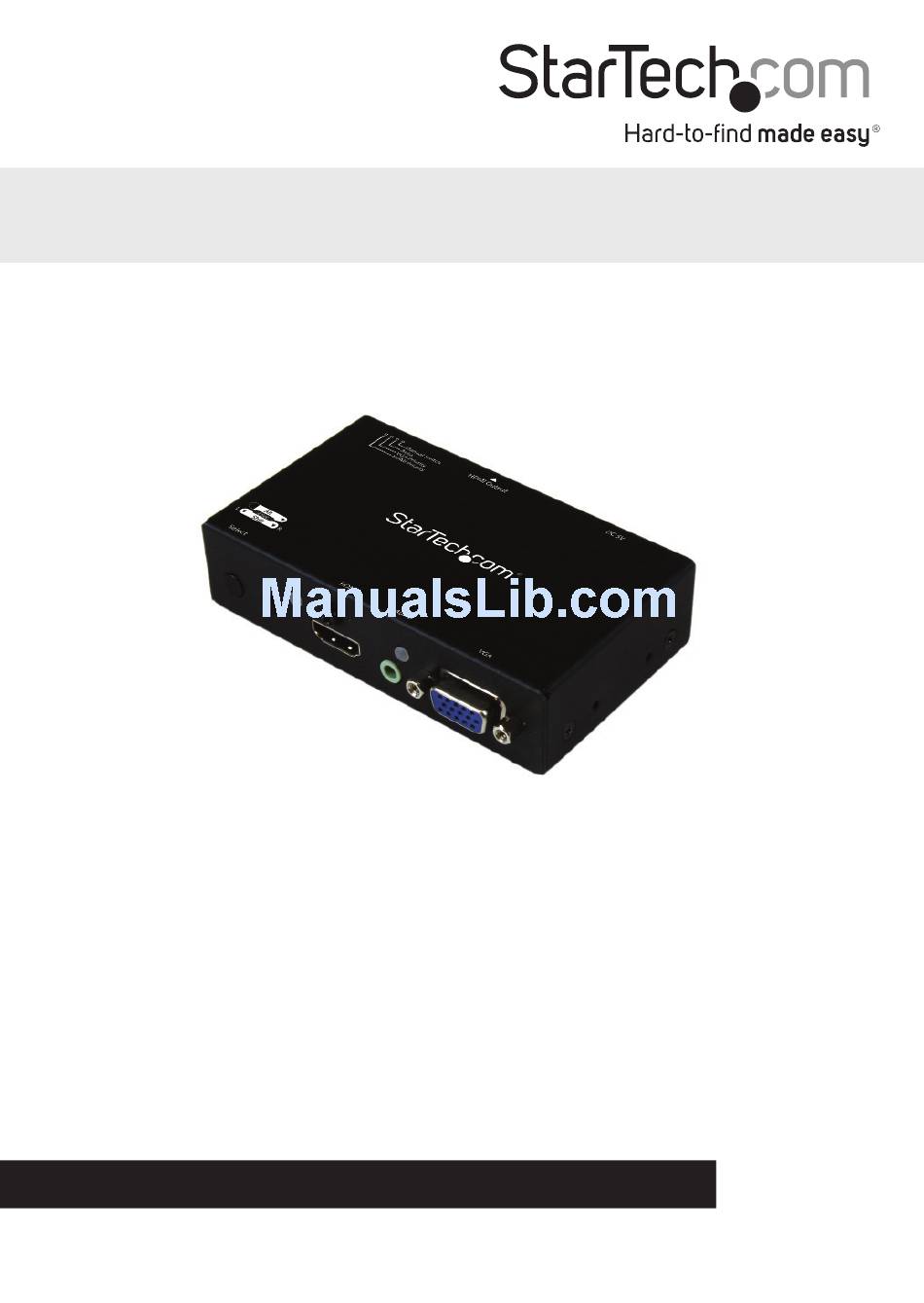

VGA+HDMI® to HDMI Audio/Video
Converter Switch
VS221VGA2HD
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 10/27/2016
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com VS221VGA2HD
Summary of Contents for StarTech.com VS221VGA2HD
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 10/27/2016...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Diagram ..................1 Front View ..............................1 Rear View ..............................2 Hardware Installation ................3 Mode Selection and Switch Operation ..........3 Manual Mode.............................. 3 Priority Mode .............................. 4 Automatic Mode ............................ -
Page 4: Introduction
Introduction Packaging Contents • VGA+HDMI to HDMI converter switch • mounting kit • universal power adapter (NA, EU, UK, ANZ) • instruction manual System Requirements • HDMI-enabled source device w/ HDMI cable (i.e. computer, Blu-ray player) • VGA-enabled source device w/ VGA cable (i.e. computer) •... -
Page 5: Product Diagram
Product Diagram Front View 1. Input Selection / Screen Left Adjustment Button 2. Resolution adjustment / screen right adjustment button 3. HDMI audio/video Input Port #1 4. HDMI LED Indicator 5. VGA LED Indicator 6. 3.5mm Audio Input Port #2 7. -
Page 6: Rear View
Rear View 1. Power Adapter Port 2. HDMI Output Port 3. Mode Selection Switch Instruction Manual... -
Page 7: Hardware Installation
Manual mode enables you to switch between video sources with push button operation. 1. Set the mode selection switch to “Manual Switch” to place the VS221VGA2HD into manual mode. 2. Press the Input Selection Button to toggle between each video source device. -
Page 8: Priority Mode
Automatic Mode enables the VS221VGA2HD to automatically select the most recently turned on video source device. 1. Set the mode selection switch to “Auto” to place the VS221VGA2HD into automatic mode. 2. The VS221VGA2VHD will now automatically switch to the most recently turned on video source device. -
Page 9: Resolution Alteration Mode
If the resolution output from your video source device is not supported by your video display device, the VS221VGA2HD will alert you through the VGA input LED by emitting blue and flashing orange three times. This will be accompanied by your video source not being displayed on the video display device. -
Page 10: Led Indicators
LED Indicators Video Source VGA LED Indicator Type of Monitor Connected Device Active Emit Green and Flash Blue (3 Times) HDMI Emit Green and Flash Blue (2 Times) DVI w/ adapter (not included) Emit Blue and Flash Green (3 Times) HDMI Emit Blue and Flash Green (2 Times) DVI w/ adapter (not included) -
Page 11: Specifications
Specifications 1 x VGA Video Input Signals 1 x HDMI Video Output Signals 1 x HDMI Maximum Video Resolution 1920x1200 (WUXGA) Audio Support 3.5mm Stereo Audio Supported Switch Modes Automatic, Priority, Manual Instruction Manual... -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
