StarTech.com VS221HD20 Quick Start Manual

Quick-start guide
2 / 4-Port HDMI® Video Switch - 4K @ 60 Hz
VS221HD20 / VS421HD20
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
JP: 取扱説明書 - jp.startech.com

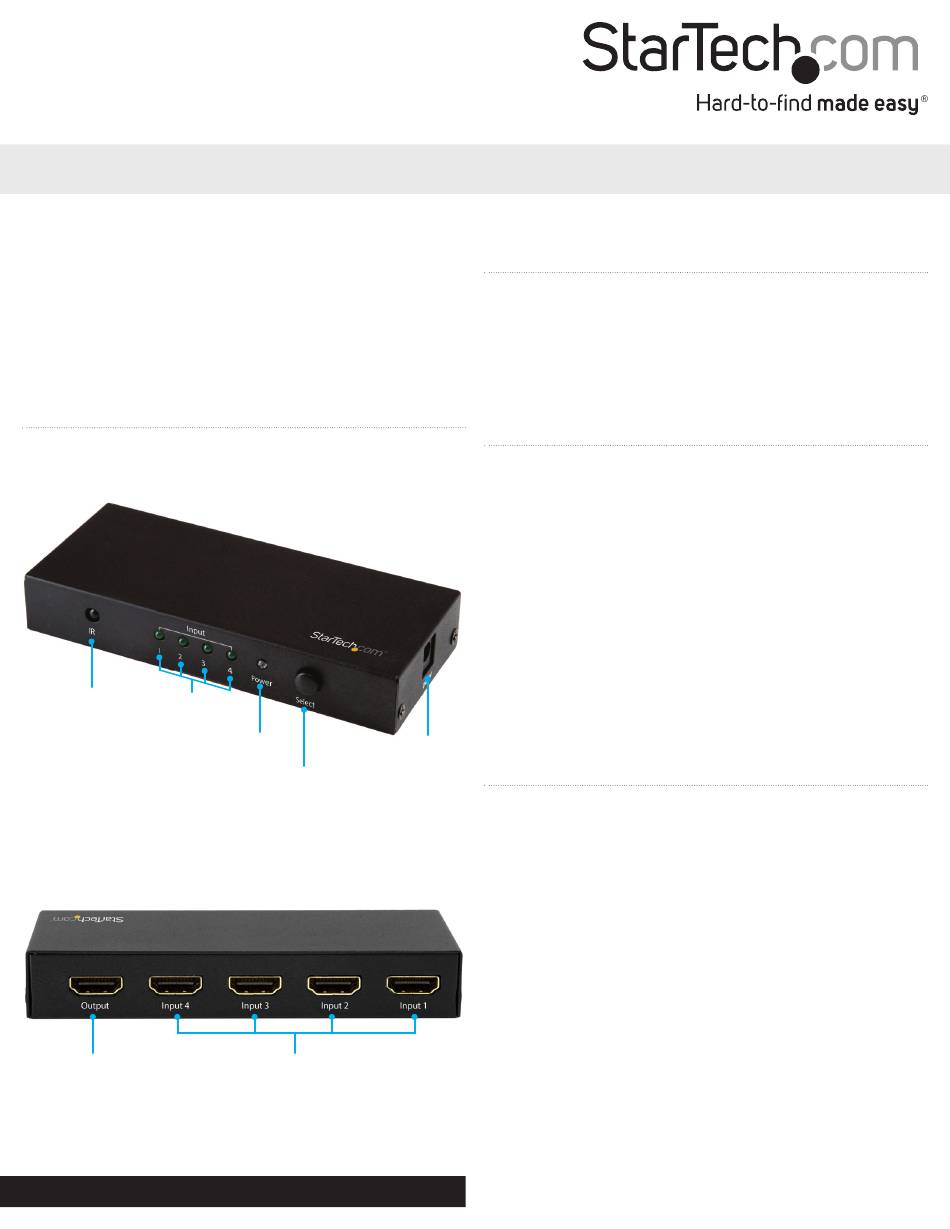

Product diagram

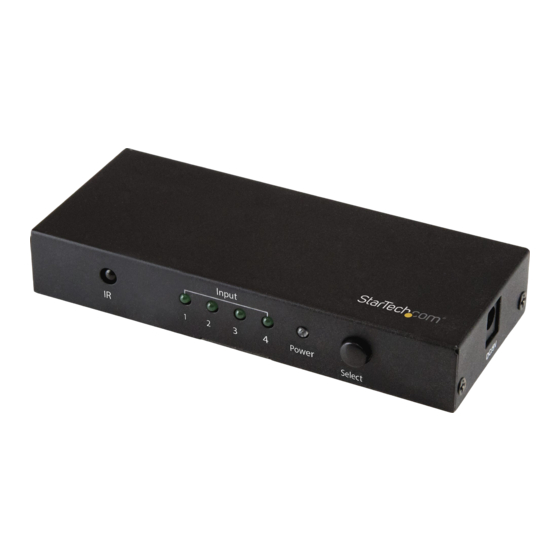

Front View - VS421HD20
IR sensor
LED indicators
Rear View - VS421HD20
HDMI output
port
For the latest information, technical specifications, and support for
this product, please visit www.startech.com.
Power LED
adapter
Input selection
button
HDMI input
ports
*actual product may vary from photos
Package contents
• 1 x HDMI video switch
• 1 x IR remote control (with CR2025 battery)
• 1 x universal power adapter (NA, EU, UK, ANZ)
Requirements
• 1 x HDMI display device (up to 4K @ 60 Hz)
VS221HD20
• 2 x HDMI source devices (up to 4K @ 60 Hz)
• 3 x HDMI M/M cables (sold separately)
VS421HD20
• 4 x HDMI source devices (up to 4K @ 60 Hz)
• 5 x HDMI M/M cables (sold separately)
Note: premium High Speed HDMI cables are required for optimal
performance at 4K 60Hz.
Power
Installation
port
Note: ensure your HDMI video source devices and the HDMI display
are powered off before you begin installation.
1. Connect an HDMI cable (sold separately) to an output port on
your HDMI source device and to one of the HDMI input ports on
the HDMI switch.
2. Repeat step #1 for each of your remaining HDMI source devices.
Note: each port is numbered, please take note of which number is
assigned to each HDMI source device.
3. Connect an HDMI cable (sold separately) to the HDMI output port
on the video switch and to an HDMI input port on your HDMI
display device.
4. Connect the universal power adapter to an available power
source and to the Power adapter port on the HDMI switch.
5. Power on your HDMI display, followed by each of your HDMI
source devices.
Manual Revision: 02/21/2018
