Summary of Contents for Telematrix 2802MWD

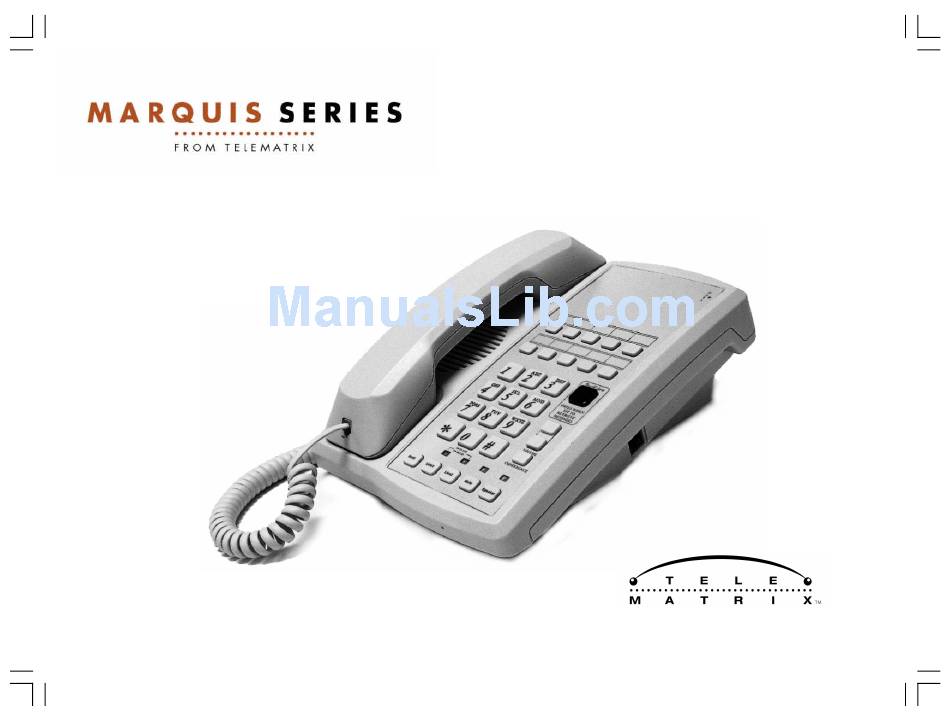

- Page 1 INSTALLATION ® AND USER GUIDE 2802MWD 2 LINE - 10 MEMORY Copyright TeleMatrix Inc. 2000...
- Page 2 As specified by FCC regulation, we are required to inform you of specific governmental and compliance regulatory requirements, safety notices, safety instructions and other informative information. TeleMatrix, Inc. provides this information in a separate manual. We pack the separate Compliance and Safety Manual within each outer box or product box when shipped.
-
Page 3: Table Of Contents
CONTENTS Features ...........………..……………………………………........Controls ................……………………………………………….. Switch Settings ........….......……………………………………………..Installation ..............……………………………………………..Wall Mounting ........….......……………………………………………..Programming Speed Dial Memory .........……………………………………………..Operation ................……………………………………………..Care and Maintenance ..........……………………………………………..Service …………………………………………………..……………………………………….………… Warranty ...............…………………………………………….. -
Page 4: Features
FEATURES Two Line Convenient Data Port 10 Single Button Memory Locations With Secure Programming Tone Dialing Speaker Key Conference Key Mute Key Handset Volume Control TouchLite™ Message Waiting Retrieval NEON/LED Message Waiting Switch Store Key (submerged)) Storable Flash Function (600 mS) (submerged) Storable Pause Function (3.6 seconds) (submerged) HI/LOW Ringer Volume Control Switch Desk or Wall Mountable... -
Page 5: Controls
CONTROLS (13) (12) (16) ( 4 ) (11) ( 3 ) (14) (10) ( 5 ) 2 4 V (15) -
Page 6: Definition Of Controls
DEFINITION OF CONTROLS Handset ..…………..…………..…... Hearing aid compatible, low profile styling. Ringer Controls ………………….……………. Adjusts the volume of the ringers to HI/LOW setting. Handset Clip …………………………………... Retains the handset when the phone is wall mounted. Handset Jack ……………………………….… Modular receptacle where handset cord plugs into the base unit. Dial Pad ………………………………….…….. -
Page 7: Switch Settings
To locate, remove the plastic covers using a sharp pointer or paper clip as shown. Message Waiting Selector Figure 5 The 2802MWD can support 90VDC neon or low-voltage LED message waiting systems. Simply slide the switch to the desired position that is compatible with your PBX messaging system. -
Page 8: Installation
INSTALLATION Parts Check List The following parts are included in this package: 1. 15’ modular telephone line cord. 2. Modular coiled handset cord. 3. Base unit 4. Handset Caution Never install telephone wiring during a lightning storm. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Never touch uninstalled telephone wires or terminals unless the telephone line has been disconnected at the network interface. - Page 9 INSTALLATION Figure 3 Connecting The Handset Cord A 10’ modular coil handset cord is provided. To install, simply plug one end of the handset cord into the modular jack on the handset. The remaining end of the handset cord plugs into the jack labeled “Handset”...
-
Page 10: Wall Mounting
Wall Mounting Your 2802MWD ROTATE 180 . SNAP INTO PLACE. The 2802MWD was designed to be conveniently wall mounted. There is no additional hardware required. Follow these easy steps: 1. The handset retaining clip must be engaged to secure the handset when hanging up. -
Page 11: Programming Speed Dial Memory
PROGRAMMING SPEED DIAL Figure 9 A. The “STORE”, “FLASH”, and “PAUSE” function keys are located underneath the clear plastic overlay and paper faceplate. To access, lift off the overlay and paper faceplate using a paperclip or sharp pointer. (figure 9 and 10) Flash Store (Redial) - Page 12 C. Storing “PAUSE” Into Memory D. FLASH Hook Function Up to 10 phone numbers can be stored into If you are using your 2802MWD anywhere The Flash function is used to access PBX memory. Each location can store up to 15...
- Page 13 PROGRAMMING THE TouchLite™ FEATURE DESCRIPTION PROGRAMMING TouchLite™ TouchLite™is a new innovation that integrated 1. Check the position of the tone/pulse switch. the visual message waiting lamp and a speed 2. Select line 1 dial key into one. It allows easy access for 3.
-
Page 14: Operation
OPERATION LINE STATUS INDICATORS HANDSET VOLUME CONTROL The Marquis Telephone is equipped with LED indicators to The handset volume control increases the volume of show the current status of the telephone lines. They are: the handset. ?? Ringing Line—Ringing LED turns red on incoming When the handset is off hook, press the volume ringing signal. - Page 15 OPERATION USING THE CONFERENCE KEY The “Conference” key is used to establish a 3- way conversation. The conference feature is activated by a “soft” key that will automatically reset when hanging up. A 3-way “Conference” call can be established while using either the PQRS WXYZ handset or Speakerphone.
- Page 16 OPERATION Placing A Call Using The Speakerphone The 2802MWD is equipped with a high quality CONFERENCE speakerphone feature to allow for hands free IN USE HOLD operation. To use, simply press the “Speaker On/Off” key when Hold Line1 Line2 Mute Speaker placing or answering a call.
-
Page 17: Care And Maintenance
CARE AND MAINTENANCE Keep the telephone dry. If it gets wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits. Use and store the telephone only in normal temperature environments. Temperature extremes can shorten the life of electronic devices, damage batteries, and distort or melt plastic parts. -
Page 18: Service
Fax: 719-638-8815 www.telematrixusa.com Many times a problem is either installation or user related. Please contact TeleMatrix PRIOR to sending a telephone to our service center for repair. In the unlikely event that a factory repair be necessary: 1. Include a brief description of the trouble that you are experiencing. -
Page 19: Warranty
STATEMENT OF LIMITED WARRANTY TeleMatrix, Inc. and TeleMatrix Equipment, LLC (TMX) warrants to its [original end customer] [purchaser] that Spectrum, Spectrum Plus and Marquis branded products manufactured by TMX are free from defects in materials and workmanship for five (5) years after the date of purchase, and Regency branded products manufactured by TMX are free from defects in materials and workmanship for three (3) years, other than the following products for which the warranty period shall be one (1) year: handset batteries, either NiCd or NiMH, used in TMX cordless products. - Page 20 252-0275 (2802MWD) Revision May 1, 2003...
