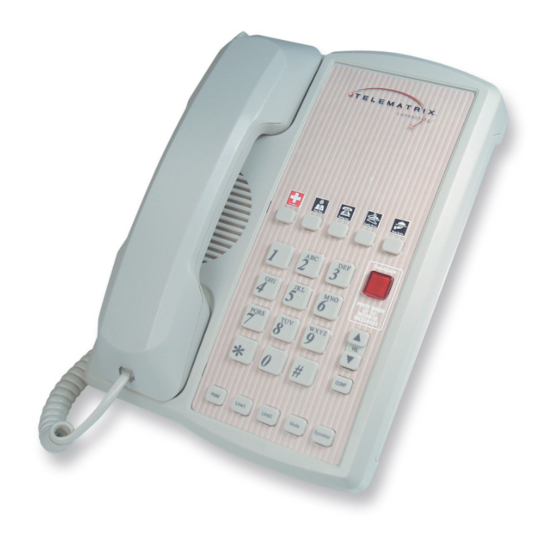

- Page 1 INSTALLATION ® AND USER GUIDE 2802MWD5 TWO LINE DELUXE FEATURE TELEPHONE TeleMatrix Copyright 2005 ©...
- Page 2 COMPLIANCE AND SAFETY As specified by FCC regulation, we are required to inform you of specific governmental and compliance regulatory requirements, safety notices, safety instructions and other informative information. TeleMa- trix, Inc. provides this information in a separate manual. We pack the separate Compliance and Safety Manual within each outer box or product box when shipped.
-
Page 3: Table Of Contents
CONTENTS Features ...........………..……………………………………........Controls ................……………………………………………….. Installation ..............……………………………………………..Switch Settings ........….......……………………………………………..Wall Mounting ........….......……………………………………………..Programming Speed Dial Memory .........……………………………………………..Programming The TouchLite™ F eature ......……………………………………………..Operation ................……………………………………………..Care and Maintenance ..........……………………………………………..Service …………………………………………………..……………………………………….………… Warranty ...............…………………………………………….. -
Page 4: Features
FEATURES • Two Line • TouchLite™ Message Waiting—Combination Visual Message Waiting Indicator / Speed Dial Key • No Battery Maintenance • Convenient Data Port • Hold Feature With Remote Release • 5 Single Button Memory Locations With Secure Programming • 2-Way Speakerphone •... -
Page 5: Controls
CONTROLS... -
Page 6: Definition Of Controls
DEFINITION OF CONTROLS Handset Hanger ………….…………………..… Temporarily holds the handset when the unit is wall mounted. 2. Handset ..…………..…………..…... Hearing aid compatible, low profile styling. 3. Ringer Controls ………………….……………. Adjusts the volume of the ringers to HI/LOW setting for line 1 or line 2. 4. -
Page 7: Installation
INSTALLATION Parts Check List The following parts are included in this pack- age: 1. 15’ modular telephone line cord. 2. Modular coiled handset cord. 3. Base unit 4. Handset Caution • Never install telephone wiring during a lightning storm. • Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. - Page 8 INSTALLATION Connecting The Handset Cord A 10’ modular coil handset cord is pro- vided. To install, simply plug one end of the handset cord into the modular jack on the handset. The remaining end of the hand- set cord plugs into the jack labeled “Handset”...
-
Page 9: Switch Settings
To locate, remove the plastic covers using a sharp pointer or paper clip as shown. Message Waiting Selector The 2802MWD5 can support 90VDC neon or low-voltage LED message waiting systems. Simply slide the switch to the desired position that is compatible with your PBX messaging system. -
Page 10: Wall Mounting
WALL MOUNTING Wall Mounting Your 2802MWD5 The 2802MWD5 was designed to be conveniently wall mounted. There is no additional hardware required. Follow these easy steps: 1. The handset retaining clip must be engaged to secure the handset when hanging up. To engage the clip, unsnap the clip, rotate the clip 180º... -
Page 11: Programming Speed Dial Memory
PROGRAMMING SPEED DIAL The “STORE”, “FLASH”, and “PAUSE” function keys are located underneath the clear plastic overlay and paper faceplate. To access, lift off the overlay and paper faceplate using a paper- clip or sharp pointer. (figure 9 and 10) - Page 12 C. Storing “PAUSE” Into Memory D. FLASH Hook Function Up to 5 phone numbers can be stored If you are using your 2802MWD5 any- The Flash function is used to access into memory. Each location can store up where that requires and access code for PBX features or Telco line features such to 32 digits in tone mode.
-
Page 13: Programming The Touchlite™ F Eature
PROGRAMMING THE TouchLite™ FEATURE DESCRIPTION PROGRAMMING TouchLite™ TouchLite™is a new innovation that inte- 1. Select line 1 grated the visual message waiting lamp 2. Lift the handset. and a speed dial key into one (handset and 3. Press the “STORE” key. speaker can work only at off hook status). -
Page 14: Operation
OPERATION LINE STATUS INDICATORS PLACING A CALL USING THE SPEAKERPHONE • Select line 1 or 2.. The Marquis Telephone is equipped with LED • Press the speaker key. The LED will light to show indicators to show the current status of the telephone lines. They the speakerphone is on. - Page 15 OPERATION Using The Mute Feature Using The Hold Feature Handset Volume Control A “Mute” key is provided to allow The “Hold” key is used to place a The handset volume control increases for privacy during a background caller on hold. To use, simply press the volume of the handset.
- Page 16 OPERATION Using the Conference Key The “Conference” key is used to establish a 3- way conversation. The conference feature is activated by a “soft” key that will automatically reset when hanging up. A 3-way “Conference” call can be established while using either the handset or Speakerphone. To use the “Conference”...
-
Page 17: Care And Maintenance
CARE AND MAINTENANCE Keep the telephone dry. If it gets wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits. Use and store the telephone only in normal temperature environments. Temperature extremes can shorten the life of electronic devices, damage batteries, and distort or melt plastic parts. -
Page 18: Service
Fax: 719-638-8815 www.telematrixusa.com Many times a problem is either installation or user related. Please contact TeleMatrix PRIOR to sending a telephone to our service center for repair. In the unlikely event that a factory repair be necessary: 1. Include a brief description of the trouble that you are experiencing. -
Page 19: Warranty
STATEMENT OF LIMITED WARRANTY TeleMatrix, Inc. (TMX) warrants to its [original end customer] [purchaser] that Spectrum, Spectrum Plus and Marquis branded products manufactured by TMX are free from defects in materials and workmanship for five (5) years after the date of purchase, and Regency branded products manufactured by TMX are free from defects in materials and workmanship for three (3) years, other than the following products for which the warranty period shall be one (1) year: handset batteries, either NiCd or NiMH, used in TMX cordless products. - Page 20 252-0298-2 (2802MWD5) Revision June 1, 2005...
