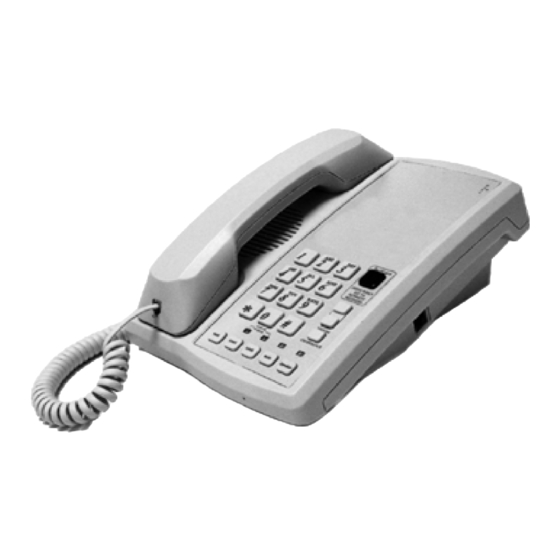

- Page 1 INSTALLATION AND USER GUIDE 2802MWS TWO LINE SPEAKERPHONE TELEPHONE TeleMatrix Copyright 2005 ©...
- Page 2 As specified by FCC regulation, we are required to inform you of specific governmental and compliance regulatory requirements, safety notices, safety instructions and other informative information. TeleMatrix, Inc. provides this information in a separate manual. We pack the sepa- rate Compliance and Safety Manual within each outer box or product box when shipped.
-
Page 3: Table Of Contents
CONTENTS Features ...........………..……………………………………........Controls ................……………………………………………….. Installation ..............……………………………………………..Switch Settings ........….......……………………………………………..Wall Mounting ........….......……………………………………………..Programming The TouchLiteÒ F eature ......……………………………………………..Operation ................……………………………………………..Care and Maintenance ..........……………………………………………..Service …………………………………………………..……………………………………….………… Warranty ...............…………………………………………….. -
Page 4: Features
FEATURES • Two Line • TouchLite Message Waiting—Combination Visual Message Waiting Indicator / Speed Dial Key • No Battery Maintenance • Convenient Data Port • 2-Way Speakerphone • Microphone Mute Function For Handset and Speakerphone • Line Status Indicators For Speaker and Mute. •... -
Page 5: Controls
CONTROLS... -
Page 6: Definition Of Controls
DEFINITION OF CONTROLS Handset Hanger ………….…………………..… Temporarily holds the handset when the unit is wall mounted. Handset ..…………..…………..…... Hearing aid compatible, low profile styling. Ringer Controls ………………….……………. Adjusts the volume of the ringers to HI/LOW setting . Handset Jack ……………………………….… Modular receptacle where handset cord plugs into the base unit. -
Page 7: Installation
INSTALLATION Parts Check List The following parts are included in this package: 1. 15’ modular telephone line cord. 2. Modular coiled handset cord. 3. Base unit 4. Handset Caution • Never install telephone wiring during a lightning storm. • Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. •... - Page 8 INSTALLATION Figure 3 Connecting The Handset Cord A 10’ modular coil handset cord is provided. To install, simply plug one end of the handset cord into the modular jack on the handset. The remaining end of the handset cord plugs into the jack labeled “Handset”...
-
Page 9: Switch Settings
Figure 5 Message Waiting Selector The 2802MWS can support 90VDC neon or low-voltage LED (FSK compatible) message waiting systems. Simply slide the switch to the desired position that is compatible with your PBX messaging system. Note: the phone is factory preset to the “Neon” setting. -
Page 10: Wall Mounting
Wall Mounting Your 2802MWS ROTATE 180 . SNAP INTO PLACE. The 2802MWS was designed to be conveniently wall mounted. There is no additional hardware required. Follow these easy steps: 1. The handset retaining clip must be engaged to secure the handset when hanging up. -
Page 11: Programming Speed Dial
PROGRAMMING SPEED DIAL A. The “STORE”, “FLASH”, and “PAUSE” Figure 9 function keys are located underneath the cleat plastic overlay and paper faceplate. To access, lift off the overlay and paper faceplate using a paperclip or sharp pointer. (figure 9 and 10) Flash Store (Redial) - Page 12 TouchLite PROGRAMMING THE FEATURE DESCRIPTION PROGRAMMING TouchLiteÒ TouchLiteÒis a new innovation that integrated 1. Check the position of the tone/pulse switch. the visual message waiting lamp and a speed 2. Select line 1 dial key into one. It allows easy access for 3.
-
Page 13: Operation
OPERATION LINE STATUS INDICATORS PLACING A CALL USING THE SPEAKERPHONE • Select line 1 or 2.. The Marquis Telephone is equipped with LED • Press the speaker key. The LED will light to show the indicators to show the current status of the tele- speakerphone is on. - Page 14 OPERATION Using The Mute Feature Handset Volume Control A “Mute” key is provided to allow The handset volume control for privacy during a background increases the volume of the conversation. When the “Mute” handset. key is activated, the microphone in the handset and the speaker- When the handset is off hook, phone becomes disabled.
-
Page 15: Care And Maintenance
CARE AND MAINTENANCE Keep the telephone dry. If it gets wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits. Use and store the telephone only in normal temperature environments. Temperature extremes can shorten the life of electronic devices, damage batteries, and distort or melt plastic parts. -
Page 16: Service
Fax: 719-638-8815 www.telematrixusa.com Many times a problem is either installation or user related. Please contact TeleMatrix PRIOR to sending a telephone to our service center for repair. In the unlikely event that a factory repair be necessary: 1. Include a brief description of the trouble that you are experiencing. -
Page 17: Warranty
STATEMENT OF LIMITED WARRANTY TeleMatrix, Inc. and TeleMatrix Equipment, LLC (TMX) warrants to its [original end customer] [purchaser] that Spectrum, Spectrum Plus and Marquis branded products manufactured by TMX are free from defects in materials and workmanship for five (5) years after the date of purchase, and Regency branded products manufactured by TMX are free from defects in materials and workmanship for three (3) years, other than the following products for which the warranty period shall be one (1) year: handset batteries, either NiCd or NiMH, used in TMX cordless products. - Page 18 252-(2802MWS) Revision June 1, 2005...
