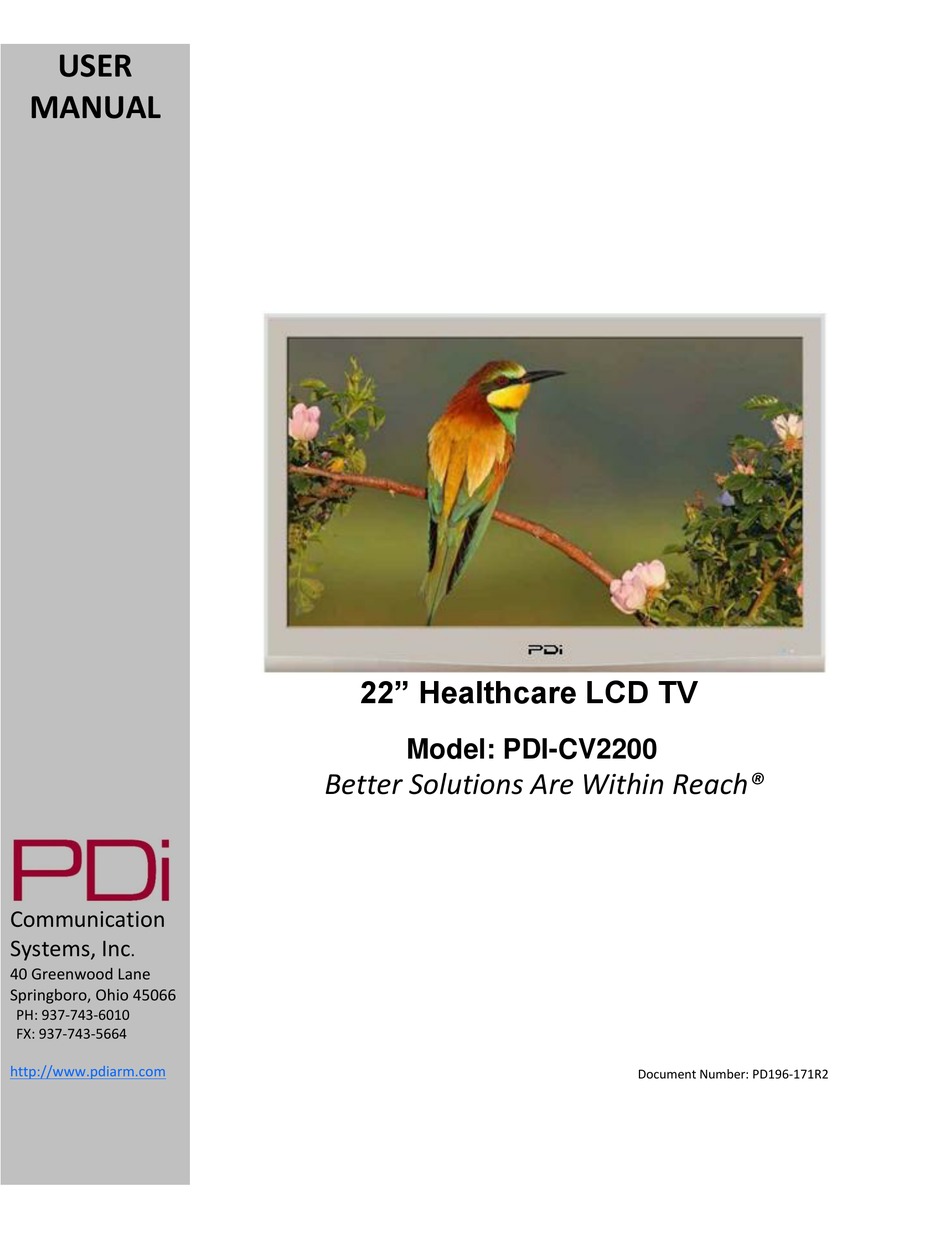

- Page 1 USER MANUAL 22” Healthcare LCD TV Model: PDI-CV2200 Better Solutions Are Within Reach® Communication Systems, Inc 40 Greenwood Lane Springboro, Ohio 45066 PH: 937-743-6010 FX: 937-743-5664 http://www.pdiarm.com Document Number: PD196-171R2...
-
Page 2: Graphic Symbols
Any changes or modifications made to this device that are not expressly approved by PDI Communications, Inc may void the user’s authority to operate the equipment. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 3: Important Safety Instructions
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 4: Table Of Contents
TV Menu Explanations ..................................19 TV Menu Explanations Continued .................................20 TV Menu Explanations Continued .................................21 TV Menu Explanations Continued .................................22 TV Menu Explanations Continued .................................23 Limited Warranty ....................................24 PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 5: Optional Accessories
Install the TV as recommended by the mount’s manufacturer. CV2200 SPECIFICATIONS Weight: 10 lbs Mount: 75 mm VESA, 4 mm Thread 21” x 14” x 3 ½” (WHD) Dimensions: PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 6: Pillow Speaker Connections
ANALOG DIGITAL PILLOW SPEAKER SELECTOR SWITCH SETTINGS CZ = Zenith CP = Phillips OFF = Disables Pillow Speaker CR = RCA PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 7: Tv Controls & Connections
4. VOL / Increases or decreases the volume. If a menu item is active, adjusts the menu item’s settings. 5. POWER Turns TV On and Off. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 8: Tv Connections
TV. Pillow Speaker Jack. See PILLOW PILLOW SPEAKER CONNECTIONS for details. Pillow Speaker compatibility switch. See CR-OFF-CP-CZ PILLOW SPEAKER CONNECTIONS for details. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 9: Powering The Tv
3. From the SETUP menu, select FEATURES. Position 4. In the FEATURES menu, select STANDBY POWER. Next: Exit: SETUP 5. Set Standby Power to the appropriate mode. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 10: Programming The Tv
9. Press the YES (Channel Up button) to begin Auto Programming or NO (Channel Down button) to exit. Auto Programming takes approximately 2 to 12 minutes. Yes No Exit: SETUP PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 11: Pillow Speaker Sound Setup
▪ Internal Speaker Enable ▪ HDMI Audio Port HDMI ▪ Composite / S-Video Sound Mode L + R Position Next: Exit: SETUP PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 12: Programming The Tv's Fm Radio
NOTE: FM radio signals must be present on the coax input cable for the TV’s FM radio feature to work properly. CONFIRM FM RADIO PROGRAM ▪ Confirmation Exit: SETUP PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 13: Troubleshooting
Verify that strong fluorescent lights are not flooding the TV’s IR windows • Remote Control does not work For patient remote controls, verify remote is set to the correct Bed Code. • PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 14: Cloning The Tv - Saving Settings
▪ P26LCDE ▪ P15X ▪ CV2200M ▪ CV2600M ▪ CV3200M ▪ CV3700M Position Next: Exit: SETUP PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 15: Cloning The Tv - Restoring Settings
program another television. ▪ P15X ▪ CV2200M ▪ CV2600M ▪ CV3200M ▪ CV3700M Position Next: Exit: SETUP PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 16: Tv Menu Navigation
Enabled WHIO WX Enabled Sample channel listing shown for 16-1 16HD Enabled 16-2 16Again Enabled illustrative purposes. Actual channel listing 16-3 16Life Enabled will vary. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 17: Tv Menu Navigation Continued
▪ Auto Program ▪ Confirmation ▪ Frequency 100.7 MHz ▪ Add/Delete Added Position Yes Next: No Exit: SETUP Exit: SETUP PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 18: Tv Menu Navigation Continued
▪ R ▪ NC-17 ▪ X ▪ No Rating Position Next: Exit: SETUP CHANGE PASSWORD Enter Password ---- Confirm Password ---- Exit: SETUP PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 19: Tv Menu Explanations
Audio Ports HDMI, PC-ANALOG, and COMPONENT can be selected as an HDMI Audio port. Composite/S-Video Sound Sets sound for Stereo (L+R), Left (L+L), or Right (R+R). Mode PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 20: Tv Menu Explanations Continued
From: Sets the service level to be copied. Sets the service level to be programmed. Confirmation Menu to before copying service levels. Confirm Copy PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 21: Tv Menu Explanations Continued
TV in a 2 television room. Patient remote is set to corresponding Bed code. Caption Text Mode Teletext function, Normally Disabled for US. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 22: Tv Menu Explanations Continued
Disabled, Enabled/APO, Enabled/No APO FM RADIO Disabled, Enabled/APO, Enabled/No APO Slot 1 Disabled, Enabled Slot 2 Disabled, Enabled Power On Source Last, (Any Enabled Source) PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 23: Tv Menu Explanations Continued
Restore Settings to Uploads TV settings from saved to USB Flash Drive in “Save Settings to USB Disk” into another television PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 937-743-6010 FX 937-743-5664... -
Page 24: Limited Warranty
PDI’s shipment of this product. After receipt of written notice of a defect or malfunction occurring during the warranty period, PDI will repair or replace goods returned to its Springboro, Ohio location, at its discretion, free of charge to the original purchaser, the whole or any component part of any product manufactured by PDI and found by PDI to be defective.
