Bellini BDO610TCX Installation And User Manual

60cm built in oven

Hide thumbs

Quick Links

60cm Built In Oven

Installation and User manual

Content

Important Safety instructions-------------------- 2

Product description--------------------------------- 4

Installation-------------------------------------------- 7

Start using your oven------------------------------- 9

Maintenance and cleaning------------------------ 14

Warranty----------------------------------------------- 16

For warranty service call 1300 373 199 (Australia)

or 0508 123108 (New Zealand) to connect you to

the nearest authorised service centre

20130924 issue3

BDO610TCX

BDO610TCX-F

BDO610TCBG

BDO610TCBG-F

Need help?

Do you have a question about the BDO610TCX and is the answer not in the manual?

Questions and answers

Summary of Contents for Bellini BDO610TCX

Page 1: Table Of Contents
Product description--------------------------------- 4 Installation-------------------------------------------- 7 Start using your oven------------------------------- 9 Maintenance and cleaning------------------------ 14 Warranty----------------------------------------------- 16 For warranty service call 1300 373 199 (Australia) BDO610TCX or 0508 123108 (New Zealand) to connect you to BDO610TCX-F the nearest authorised service centre BDO610TCBG BDO610TCBG-F...
Page 2: Important Safety Instructions
Important Safety Instructions This manual explains the proper installation and use of your oven, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. General Warnings Child Safety If the supply cord is damaged, the cord must be...
Page 3 To reduce the risk of fire, do not place or install Do not use the door as a shelf. this unit in areas where the ventilation or Do not push down when the oven door is open. circulation ducts may become blocked. Make sure there are at least 70mm of space between the Grill back of your oven and the wall.
Page 4: Product Description

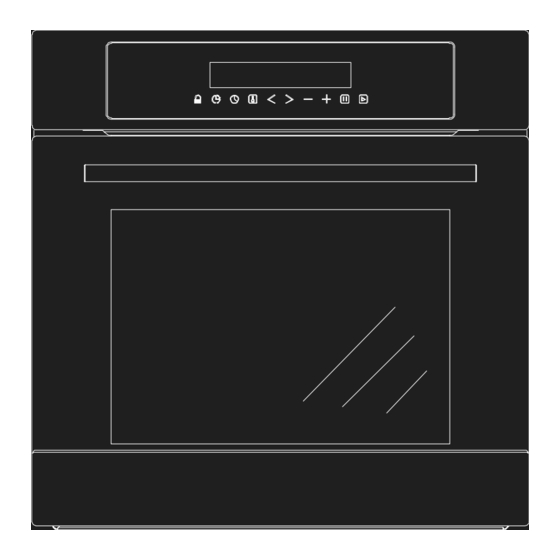

Product Description Model BDO610TCX-1, BDO610TCX-1F Model BDO610TCBG-1, BDO610TCBG-1F A. LCD display C. Oven door Handle B. Touch control panel D. Glass door Accessory Picture Quantity Name Baking tray Grill rack Grill insert Screws(ST4x35) Technical Specifications product dimensions usable electrical max. power...
Page 5 Item Description Explanation Clock display It shows 24 hour clock when time has been set up. Function choice It indicates which function is chosen. See page 9 for details of each function. indicator light Cooking duration function O’clock indicator light Operation Cooking delay start function Child lock...
Page 6: Installation
Installation WARNING! Please follow the points below when installing the appliance available from the vinyl-wrap supplier. Use An Authorized Person As stated in the local municipal building codes GSM cannot accept responsibility for damage and other relevant statutory regulations: caused by installation into low temperature Wiring connections must be in accordance with tolerant cabinets.
Page 7 Cut-out dimensions Mounting Screw CAUTION! Your appliance must be mounted on a flat surface for the full width and depth of the product. Connect power supply cord Open terminal board cover at rear panel of appliance. Connect wires as below: Close the terminal board cover.
Page 8: Start Using Your Oven
, the oven will start working; if you want to set up temperature by yourself then follow the next clause “Select the temperature and start cooking”. Model BDO610TCX(-F), BDO610TCBG(-F)(10 functions)
Page 9 Function Description Oven light By setting the button to this position the lighting inside the oven is switched on, e.g. use when washing the oven chamber. When this function is set, the oven activates the combined grill and fan function. This Fan and combined grill on function speed up the grilling process and an improve the taste of the dish.
Page 10 Select Temperature And Start Cooking This oven allow you to set temperature by yourself to cook your favorite food. After function is chosen, press + or – to set desired temperature. Then press to confirm all settings, oven starts cooking. NOTES Each pressing will cause 5 degrees add up or decreasing.
Page 11: Child Lock
Delayed Start Cooking Setting Press till “Hour” digit flash, use + or - key to adjust hour. Then press , “Minute” is on, display flash, use + or - key to adjust minutes. Press “Hour” digit flash, use + or - key to adjust hour. Then press again till is on, “Minute”...
Page 12: Troubleshooting
Troubleshooting In the event of an emergency, you should: Switch OFF all controls of the appliance Disconnect the mains plug Call the service centre Some minor faults can be fixed by referring to the instructions given in the table below. Before calling the customer support centre or the service centre check the following points that are presented in the table.
Page 13: Maintenance And Cleaning
Maintenance and Cleaning WARNING! Before cleaning your oven, or performing maintenance, disconnect it from the power supply. Do not use steam cleaners. Do not line the oven bottom with aluminium foil, as the consequent accumulation of heat could compromise the cooking and even damage the enamel. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid or sprinkle water to clean the appliance! Do not clean the appliance when it is still hot! The inside and external surface of...
Page 14 Replacement Of The Oven Light Bulb WARNING! In order to avoid the possibility of an electric shock ensure that the appliance is disconnected from the power supply before replacing the bulb. Set all control knobs to the “OFF” position (● / 0) and disconnect the mains plug .
Page 15: Warranty
Consumer until the expiry of two (2) years (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge.
Page 16 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.

This manual is also suitable for:

Bdo610tcx-f Bdo610tcbg Bdo610tcbg-f
