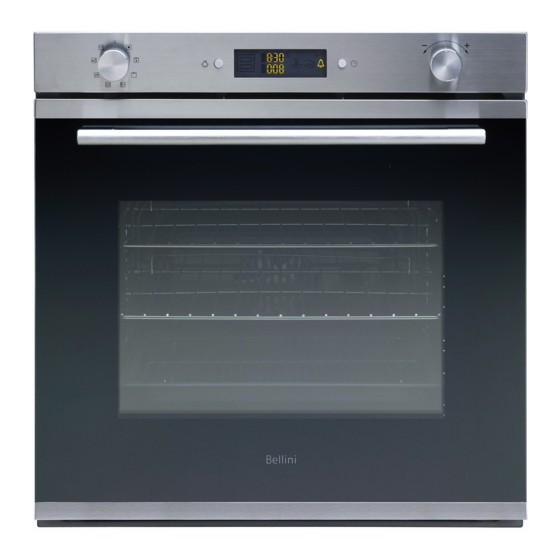

Bellini BDO610JEX Installation And User Manual

60cm built in jumbo oven

Hide thumbs

Quick Links

60cm Built In

Jumbo Oven

Installation and User manual

Content

Important Safety instructions-------------------- 2

Product description--------------------------------- 4

Installation-------------------------------------------- 7

Start using your oven------------------------------- 9

Maintenance and cleaning------------------------ 17

Warranty----------------------------------------------- 21

For warranty service call 1300 373 199(Australia)

or 0508 123108(New Zealand) to connect you to

the nearest authorised service centre

20131007 issue0

BDO610JEX

BDO610JEX-F

BDO608JTX

BDO608JTX-F

Need help?

Do you have a question about the BDO610JEX and is the answer not in the manual?

Questions and answers

Summary of Contents for Bellini BDO610JEX

Page 1: Table Of Contents
Important Safety instructions-------------------- 2 Product description--------------------------------- 4 Installation-------------------------------------------- 7 Start using your oven------------------------------- 9 Maintenance and cleaning------------------------ 17 Warranty----------------------------------------------- 21 BDO610JEX For warranty service call 1300 373 199(Australia) BDO610JEX-F or 0508 123108(New Zealand) to connect you to BDO608JTX the nearest authorised service centre...
Page 2: Important Safety Instructions
Important Safety Instructions This manual explains the proper installation and use of your oven, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. General Warnings Child Safety If the supply cord is damaged, the cord must be...
Page 3 To reduce the risk of fire, do not place or install Do not use the door as a shelf. this unit in areas where the ventilation or Do not push down when the oven door is open. circulation ducts may become blocked. Make sure there are at least 70mm of space between the Grill back of your oven and the wall.
Page 4: Product Description
Product Description Control Panel of BDO608JTX, BDO608JTX-F Function knob Display Temperature setting knob Power indicator light Heater indicator light Power indicator light will turn on when the oven is connected to power supply Heater indicator light will turn on when heating element starts working Display...
Page 5 Control Panel of BDO610JEX, BDO610JEX-F You can press “Light” button to turn on/off oven light at anytime. Display Accessory Name Picture Quantity Mounting Screws(ST4x35) Baking Pan & Rack 1 Pair Rack...
Page 6 Total grill heating el. 900+2300 Watt Shaded motor (back) 32 Watt Oven light: 15Watt Circle heating el. 2400Watt Shaded motor (top) 15Watt BDO610JEX, BDO610JEX-F product dimensions electrical min. fuse max. power max. current (L x W x D) mm connection rating...
Page 7: Installation
Installation WARNING! Please follow the points below when installing the appliance available from the vinyl-wrap supplier. Use An Authorized Person As stated in the local municipal building codes GSM cannot accept responsibility for damage and other relevant statutory regulations: caused by installation into low temperature Wiring connections must be in accordance with tolerant cabinets.
Page 8 resistant. In the case of veneered wood units, glues Cabinet Construction For Your Appliance The sizes of the unit for installing the appliance under must be resistant to a temperature of 120°C. a worktop or in a column unit are shown in figure. Fitting Your Appliance Fit the appliance into its surround (beneath a work-top or above another appliance) by inserting screws into...
Page 9: Start Using Your Oven
Do not close the oven door until the oven is completely dry . Select the functions Turn the “Function Knob” in any direction to select the desired function. BDO608JTX, BDO608JTX-F BDO610JEX, BDO610JEX-F function description BDO608JTX, BDO608JTX-F When the selector knob is in any position other than the “0”position, the oven light Oven Light comes on.
Page 10 50°C and 200°C. This function can be used Heating Element for sterilizing glass jars. BDO610JEX, BDO610JEX-F All heating elements and the fan are activated. Since the heat remains constant throughout the oven, the air cooks and browns food in a uniform manner. A Multilevel maximum of four racks may be used at the same time.
Page 11 Start the PIZZA cooking mode. This function is ideal for baking cakes. Place the food inside the oven while it is still Baked Cake cold. The dish may also be placed in a preheated oven. It will only be possible to adjust the duration by -10/+15 minutes.
Page 12 To set the temperature, turn the temperature selector in a clockwise direction to the desired setting. An indicator light above the temperature selector will come on. For BDO610JEX and BDO610JEX-F, temperature setting will appear on display when you turn the knob.
Page 13 Minute Minder Press “Function select button” until “ ” flashing. Press “Minus/Plus” to set duration which range from 0.00 to 23.59. To cancel, set the duration as 0.00 Wait for 5s no further operation then setting is confirmed. This function does not interrupt cooking and does not affect the oven, it is simply used to activate buzzer when the set amount of time has elapsed.
Page 14 Model BDO610JEX, BDO610JEX-F O’Clock Time Setting When the power is connected, the LED display shows 0:00 as default. 1. Press the button until the first numerical digit flashes on display and the icons are switched off 2. Turn the TIMER KNOB towards “+” and “-“ to adjust the hour.
Page 15 Cooking advice table for ovens with an ExtraLarge Space cavity Function Foods Cook Rack position Preheating Recommended Cooking (kg) temperature (°C) duration Rack Drip shelve (min) 2 or 3 30-40 1 to 2 3 to 5 35-45 Pies / Tarts 40-50 45-55 2 or 3...
Page 16 7*** Automatic Bread (see recipe) 7*** bread 7*** Automatic Roasts 60-90** roast 35-60** Automatic Desserts 35-60** baked cakes 23-30** 25-35** Automatic Pizza (see recipe) 30-35** pizza 35-40** * The cooking times listed above are intended as guidelines only and may be modified according to personal tastes.
Page 17: Maintenance And Cleaning
Maintenance and Cleaning WARNING! Before cleaning your oven, or performing maintenance, disconnect it from the power supply. Do not use steam cleaners. Do not line the oven bottom with aluminium foil, as the consequent accumulation of heat could compromise the cooking and even damage the enamel. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid or sprinkle water to clean the appliance! Do not clean the appliance when it is still hot! The inside and external surface of...
Page 18 Grill Always keep the grill dish and grill insert clean, as any fat deposits may catch fire. Replacement Of The Oven Light Bulb WARNING! In order to avoid the possibility of an electric shock ensure that the appliance is disconnected from the power supply before replacing the bulb. Set all control knobs to the “OFF”...
Page 19 Middle Layer Glass Removal The oven door is made up of 3 panes of glass and has vents at the top and bottom. When the oven is operating, air is circulated through the door to keep the outer pane cool. If condensation has worked its way in between the glass panes, the door can be dismantled in order to clean in between the panes.
Page 20: Troubleshooting
Troubleshooting In the event of an emergency, you should: Switch OFF all controls of the appliance Disconnect the mains plug Call the service centre Some minor faults can be fixed by referring to the instructions given in the table below. Before calling the customer support centre or the service centre check the following points that are presented in the table.
Page 21: Warranty
Consumer until the expiry of two (2) years (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge.
Page 22 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.

This manual is also suitable for:

Bdo610jex-f Bdo608jtx Bdo608jtx-f
