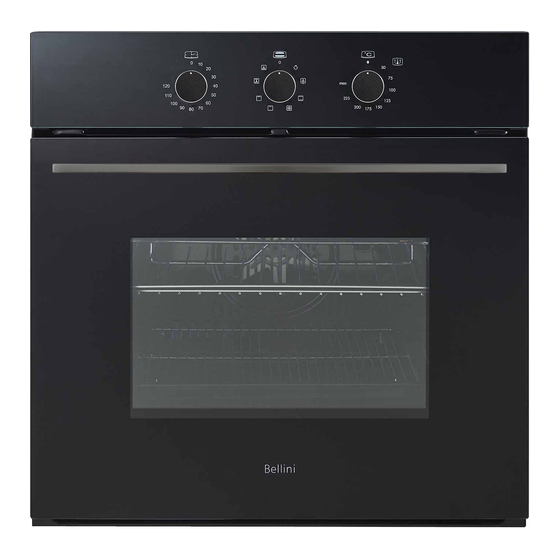

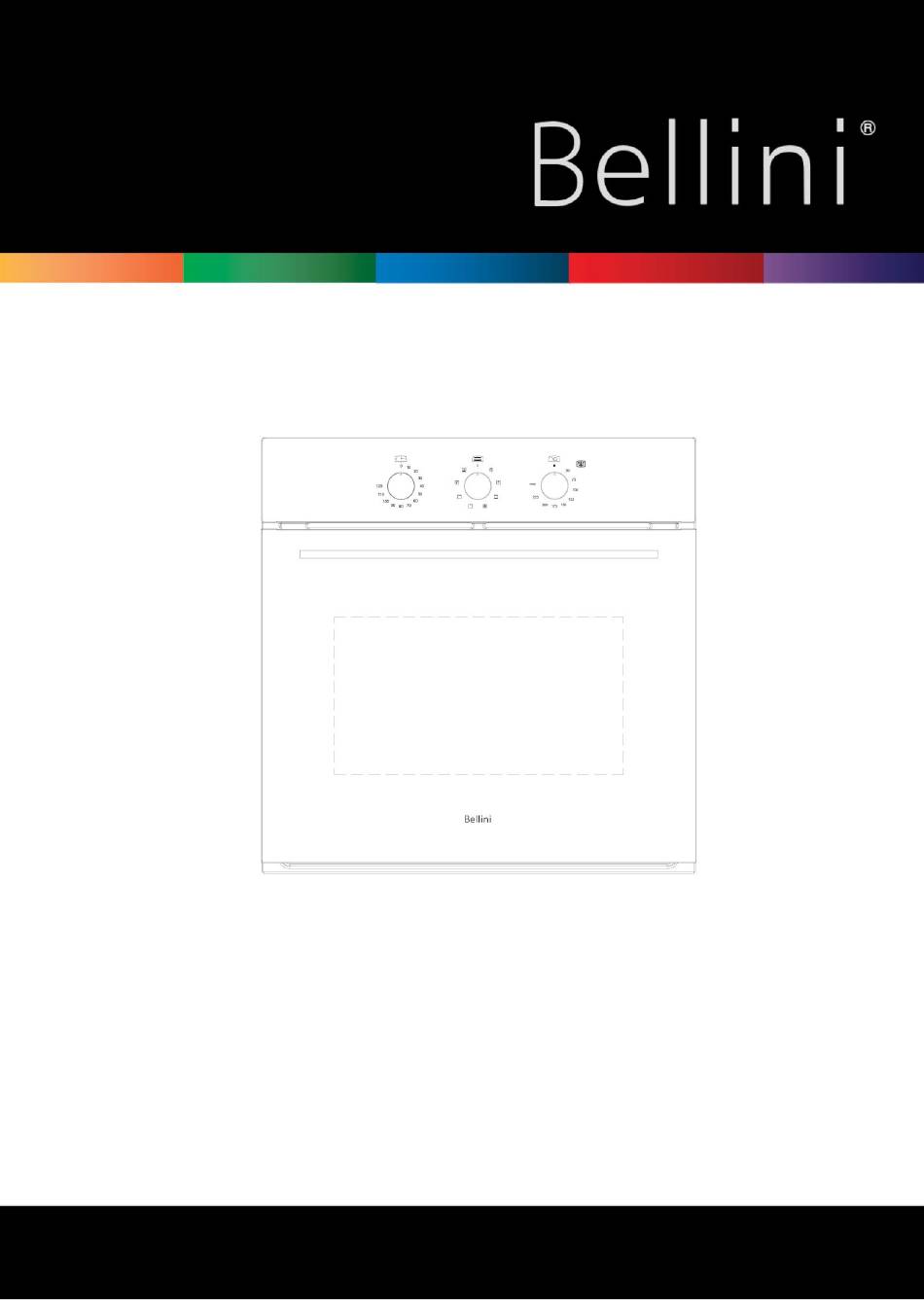

- Page 1 USER MANUAL 60cm Built In Electric Oven Model No. B OT608BK BOT608BK-F GSM Retail Australia Pty Ltd ABN: 53 007 682 475 For Warranty and technical queries: Australia 1300 373 199 V2 May 2023 For Warranty and technical queries: New Zealand 0800 764 912...
- Page 2 Thank you. Thank you for choosing Bellini Appliances. This Bellini appliance carries a 3 year in home warranty, be sure to retain your user manual and receipt. For all warranty and technical queries please phone: Australia 1300 373 199 New Zealand 0800 764 912...
-
Page 3: Table Of Contents
Contents Safety Instructions----------------------------- Product Description---------------------------- Installation---------------------------------------- Oven Setting-------------------------------------- Maintenance and Cleaning ------------------- Warranty------------------------------------------... -
Page 4: Safety Instructions
The manual should be kept in a safe place for future reference. In case of failure, only the Authorised Technical Service Agent may repair this oven. Otherwise the guarantee will be null and void. All Bellini Appliances are for domestic use only. - Page 5 General Warning concerning use of the appliance by a person responsible ◆ If the supply cord is damaged, the cord must be for their safety. ◆ replaced by the manufacturer, its service agent or Children should be supervised to ensure that they do not play with the appliance.
- Page 6 ◆ ◆ When transporting or storing the unit, keep it in a Do not place thick portions of food under the grill. Foods dry location, free from dust, excessive vibration or may curl, catch and ignite. ◆ other factors, which may damage the unit. Accessible parts may become hot when grill is in use.
-
Page 7: Product Description
Product Description A. Minute Timer Knob B. Function Select Knob C. Temperature Select Knob D. Heating Indicator Light E. Handle F. 3 Layer Glass Door Accessories Accessory Name Picture Quantity Mounting Screws(ST4x20) 2 pcs Baking Pan & Rack 1 Pair Rack 2 pcs... - Page 8 Tray handle 1 pc Technical data product dimensions electrical min. fuse max. power max. current connection rating rating rating (L x W x D) mm model 2.7 – 3.22Kw All 2 models 595x596x575 220-240V/50Hz 13.4A Heating elements Motor Oven lower heating el.: 1200Watt Oven inside heating el.
-
Page 9: Installation
◆ Where the appliance is built into a cabinet, the cabinet WARNING! must be capable of withstanding 120°C. Installation into low temperature tolerant cabinetry Installation (eg Vinyl Coated) may result in deterioration of the low Please follow the points below when installing the temperature coating by discoloring or bubbling. - Page 10 The unit panels next to the appliance must be heat resistant. Cabinet Construction For Your Appliance In the case of veneered wood units, glues must be resistant The sizes of the unit for installing the ap pliance under a worktop or i n a column unit are shown in figure. to a temperature of 120°C.
-
Page 11: Oven Setting
Oven Settings Preparing Your Oven 1. Please remove all stickers, leaflets and boxes from the door and from the floor of the oven before operation. 2. Please wipe out the oven interior prior to operation with warm soapy water and polish dry with a soft cleancloth. Do not close the oven door until the oven is completely dry Select the Functions Turn the function selector in any direction to the desired function. - Page 12 Fan Forced Both the fan and the circular heating element operate together. The hot air adjustable between 50°C and MAX°C is evenly distributed inside the oven. This is ideal for cooking several types of food (meat, fish) at the same time without affecting taste and smell.
-
Page 13: Maintenance And Cleaning
Important The desired cooking function must be selected before the oven will operate. Minute Timer Turn the knob clockwise to set the desired duration. The minute minder can be adjusted from 1 to 120 minutes. An audible signal will sound at the expiry of the set time ,this will NOT switch the oven OFF. Switching the oven OFF has to be manually conducted by turning Function Selection Knob to O Maintenance &... - Page 14 Glass ◆ Glass surfaces on doors and control panels are best cleaned immediately after soiling. ◆ A damp cloth may help remove baked on food deposits. ◆ Oven cleaners can be used to remove stubborn marks and stains. ◆ Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door since they can scratch the surface, which may result in shattering of the glass ◆...
- Page 15 Door Removal In order to obtain easier access to the oven chamber for cleaning, it is possible to remove the door. To do this, tilt the safety catch part of the hinge upwards. Close the door lightly, lift and pull it out towards you. In order to fit the door back on to the a, do the reverse.
- Page 16 Step 1 Step 2 Step 4 Step 3 Troubleshooting Faults Causes Remedies The upper crust is dark and Not enough heat from the bottom Use the natural convection position. the lower part too pale Use deeper cake tins. Lower the temperature. Put the cake on a lower shelf.
-
Page 17: Warranty
Consumer until the expiry of three (3) year (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge. - Page 18 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
