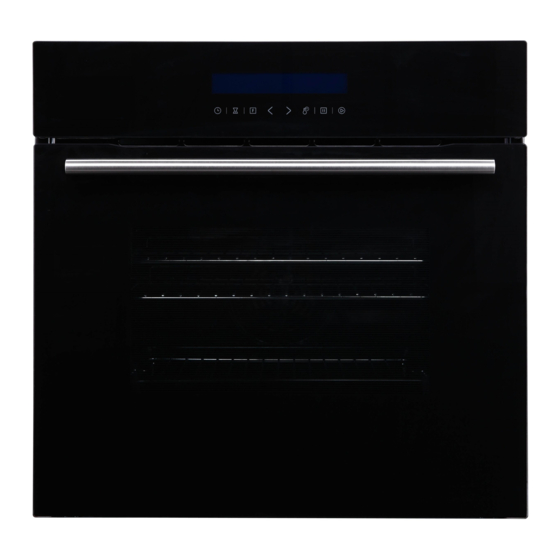

60cm Built In
Touch Oven
Installation and User manual
Content
Important Safety instructions-------------------- 2
Product description--------------------------------- 4
Installation-------------------------------------------- 7
Start using your oven------------------------------- 9
Troubleshooting --------------------------------------12
Maintenance and cleaning------------------------ 13
Warranty----------------------------------------------- 15
the nearest authorised service centre
20150428 Issue 2
BDOM609TCX
BDOM609TCX-F
1
Advertisement
Table of Contents
Related Manuals for Bellini BDOM609TCX
Summary of Contents for Bellini BDOM609TCX
-
Page 1: Table Of Contents
Product description--------------------------------- 4 Installation-------------------------------------------- 7 Start using your oven------------------------------- 9 Troubleshooting --------------------------------------12 Maintenance and cleaning------------------------ 13 Warranty----------------------------------------------- 15 For warranty service call 1300 373 199(Australia) BDOM609TCX or 0508 123108(New Zealand) to connect you to BDOM609TCX-F the nearest authorised service centre... -
Page 2: Important Safety Instructions
Important Safety Instructions This manual explains the proper installation and use of your oven, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. General Warnings Child Safety ... - Page 3 To reduce the risk of fire, do not place or install Do not use the door as a shelf. this unit in areas where the ventilation or Do not push down when the oven door is open. circulation ducts may become blocked.
-
Page 4: Product Description
Product Description LED display Function Pad Clock setting button Alarm Timer/Delay start setting button Function setting button Decrease setting button Increase setting button Temperature/Cooking Time setting button Stop button Start button Door Handle 3 Layers Glass Door... - Page 5 Accessory Name Picture Quantity Baking tray 1 pair Grill rack Distant holder Screws(ST4x3 ) Technical Specifications product dimensions usable electrical max. power (h x w x d) mm net weight capacity connection rating 595 x 595 x 575 Approx. 32Kg 65 litres 220-240V/50Hz 3.0kW...
-
Page 6: Installation
Installation WARNING! Please follow the points below when installing the appliance available from the vinyl-wrap supplier. Use An Authorized Person As stated in the local municipal building codes GSM cannot accept responsibility for damage and other relevant statutory regulations: caused by installation into low temperature Wiring connections must be in accordance with tolerant cabinets. - Page 7 Cut-out dimensions Secure the oven to cabinet Fit oven into the cabinet recess. Open the oven door. Secure the oven to the kitchen cabinet with two distance holders "A" which fit the holes in the oven frame and fit the two wood screws "B".
-
Page 8: Start Using Your Oven
Start Using Your Oven Notes: When using oven for the first time, you need to burn the oven in for approximately 1 Hour at 240 Degrees to remove any smells from the oven. During this time light smoke may emit from the oven( This is normal ), so please ventilate kitchen by opening windows during this time. - Page 9 Function Description Switch off function Oven Light Enables the user to observe the progress of cooking without opening the door The circulation of air at room temperature enables quicker thawing of frozen food, Defrost (Without the use of any heat). It's a gentle but quick way to speed up the defrosting time and thawing of ready-made dishes and cream filled produce etc.
- Page 10 Cooking setting Only when oven in standby mode, one can set cooking function follows below steps: 1. Press function setting button “ ” to set the cooking function you want. Press Function setting button “ ” successively, you can switch for different function, follows sequence 2.
- Page 11 5. Press start button “ ” to confirm delay start function. The delay start function icon “ ” and clock time will illuminate on display. Note: -The time set for auto start, must be after current clock time! -After delay start setting, you can check the setting auto start time, by press clock time button “ ”, the auto start time will illuminate for 3 seconds.
-
Page 12: Troubleshooting
Troubleshooting In the event of an emergency, you should: Switch OFF all controls of the appliance Disconnect the mains plug Call the service centre Some minor faults can be fixed by referring to the instructions given in the table below. Before calling the customer support centre or the service centre check the following points that are presented in the table. -
Page 13: Maintenance And Cleaning
Maintenance and Cleaning WARNING! Before cleaning your oven, or performing maintenance, disconnect it from the power supply. Do not use steam cleaners. Do not line the oven bottom with aluminium foil, as the consequent accumulation of heat could compromise the cooking and even damage the enamel. ... - Page 14 Replacement Of The Oven Light Bulb WARNING! In order to avoid the possibility of an electric shock ensure that the appliance is disconnected from the power supply before replacing the bulb. Set all control knobs to the “OFF” position (● / 0) and disconnect the mains plug .
-
Page 15: Warranty
Consumer until the expiry of two (2) years (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge. -
Page 16: For Warranty Service Call 1300 373 199(Australia)
1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent. - Page 17 P/N:291800201684...
