Bellini BDC644X Installation And User Manual

60cm built in combi oven

Hide thumbs

Quick Links

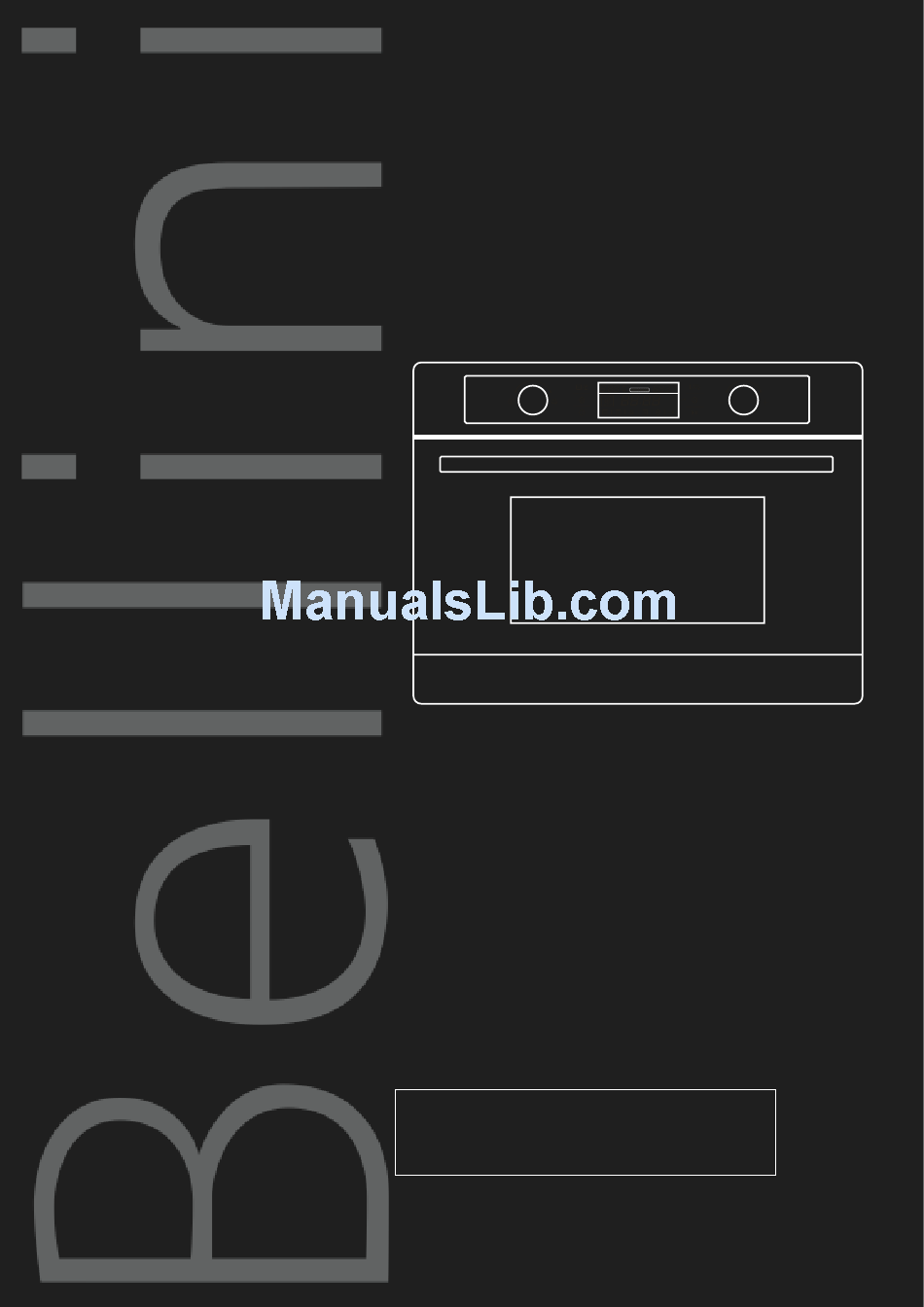

60cm Built In Combi

Installation and User manual

Content

Important Safety instructions-------------------- 2

Product description--------------------------------- 5

Installation-------------------------------------------- 6

Start using your oven------------------------------- 8

Maintenance and cleaning------------------------ 17

Warranty----------------------------------------------- 18

For warranty service call 1300 373 199(Australia)

or 0508 123108(New Zealand) to connect you to

the nearest authorised service centre

Oven

20111211 issue1

BDC644X

BDC644X-F

BDC644G

BDC644G-F

Need help?

Do you have a question about the BDC644X and is the answer not in the manual?

Questions and answers

Summary of Contents for Bellini BDC644X

Page 1: Table Of Contents
Product description--------------------------------- 5 Installation-------------------------------------------- 6 Start using your oven------------------------------- 8 Maintenance and cleaning------------------------ 17 Warranty----------------------------------------------- 18 For warranty service call 1300 373 199(Australia) or 0508 123108(New Zealand) to connect you to the nearest authorised service centre BDC644X BDC644X-F BDC644G BDC644G-F...
Page 2: Important Safety Instructions
Important Safety Instructions This manual explains the proper installation and use of your oven, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. Warnings should not be heated in microwave ovens since If the supply cord is damaged, the cord must be...
Page 3 tamper with the safety interlocks. The panels adjacent to the oven must be made of Do not place any object between the oven front heat-resistant material. face and the door or allow soil or cleaner residue The oven should be cleaned regularly and any to accumulate on sealing surfaces.
Page 4 To maintain safe operation, it is recommended that the product be inspected every five years by an authorised service person. Microwave Oven During use the appliance becomes hot. Care should be taken to avoid touching the hot surfaces inside the oven. To avoid an accident, ensure that oven shelves and fittings are always inserted into the appliance in accordance with the instructions.
Page 5: Product Description
Model Rated input Rated input Rated Output product Approx. Oven Electrical power(Grill or power power dimensions capacity connection Convection) (Microwave) (Microwave) (w x h x d) mm weight BDC644X(-F) 594x459.5x568 37Kg 44 litres 240V/50Hz 1750W 1650W 900W BDC644G(-F) 594x459.5x568 41Kg...
Page 6: Installation
Installation WARNING! Please follow the points below when installing the appliance Use An Authorized Person After installation, test and ensure the appliance As stated in the local municipal building codes operates correctly before handing it over to the and other relevant statutory regulations: customer.
Page 7 WARNING! Danger! Do not disassemble this appliance. Touching internal components of this appliance can cause serious personal injury or death. Place the microwave oven on a firm, flat surface. Make sure that there is sufficient ventilation around the microwave oven. At the rear and sides keep at least 10 cm free.
Page 8: Start Using Your Oven
Start Using Your Microwave Oven WARNING! DO NOT RUN THE UNIT WITHOUT ANY FOOD INSIDE. THE ACCESSIBLE SURFACE MAY BE HOT DURING OPERATION. Material to be avoided use in microwave oven Utensils May cause arcing. Transfer food into microwave-safe dish. Aluminium tray Food carton with metal May cause arcing.
Page 9: Operation Instruction
Operation Instruction 1. Function knob 5. Temperature/auto-menu button 2. Power/Weight button 6. Clock button 3. Quick preheating button 7. Start/Pause button 4. On/Off Button 8. Selection knob Function Mode Microwave Microwave To cook and reheat vegetables, potatoes, rice, fish and meat Heating Hot air...
Page 10 O’ Clock Setting When the microwave oven is electrified, the LED will display "0:00", buzzer will ring once. Turn " ” to knob to set the right time(between 00:00 and 23:59.) Press to confirm. NOTE: To change O’clock time already set, press and hold for 3 seconds and repeat above procedure.
Page 11 Grill Cooking Press the " ” to activate the microwave function. Turn " " until indicator light on. Turn " " until indicator light on to select grill mode. Press the “ ” and then turn " " to select grill power level(from 1 to 3) Press and then turn "...
Page 12 Press " " button to activate the microwave function. Turn " " until indicator light on. Turn " " until indicator light on. Press " " and then turn “to select temperature(100 to 230 degrees). Each turning step will cause 5 degrees temperature increase or decrease. Press and then turn "...
Page 13 Press " " button and turn " " to select power, you can choose 100W, 300W, 450W or 700W. Press and then turn " ” to knob to set cooking duration.(Max duration is 90min) Press " " button to start cooking. Microwave + Grill Fan Cooking Press "...
Page 14 There are 15 automatic cooking programs. You only need to choose the program and set the weight. The power, the time and the temperature are already set. Press " " button to activate the microwave function. Turn " " to select the cooking mode." "...
Page 15 Convection, Grill fan, bottom -convection, MW-convection, MW-Grill fan and Microwave -Bottom-convection. Press " " button. The preheat icon appears in the display. Press " "button to start preheating. 3 beeps will sound when right temperature is reached. You can stop the preheating by opening the oven door or by pressing the " "...
Page 16: Maintenance And Cleaning
Maintenance and Cleaning WARNING! Before cleaning your oven, or performing maintenance, disconnect it from the power supply. Do not use steam cleaners. Do not line the oven bottom with aluminium foil, as the consequent accumulation of heat could compromise the cooking and even damage the enamel. To protect against the risk of electrical shock, do not immerse the unit, cord in water or other liquid or sprinkle water to clean the appliance! Do not clean the appliance when it is still hot! The inside and external surface of...
Page 17: Warranty
Consumer until the expiry of one (1) year (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge.
Page 18 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
