INSTALLATION & OPERATION
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au

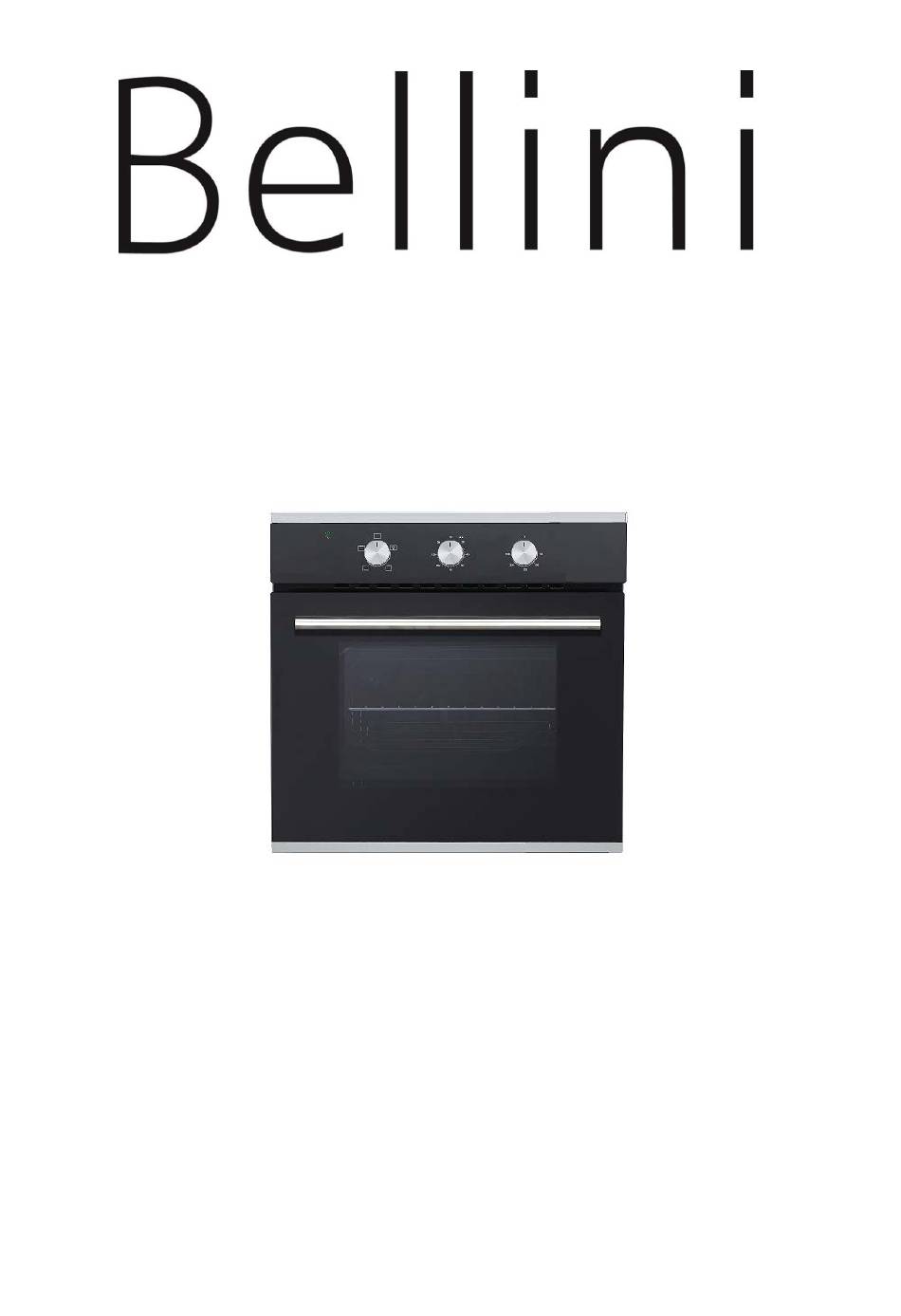

Model: BOA605P-W FINELINE: , BOA605P-F, BOA605P 60cm Black 5 Function Oven
INSTRUCTIONS
60cm Black 5 Function Oven
Model No.
BOA605P-W
BOA605P-F
BOA605P
FINELINE:81480
V.1 OCT18
Advertisement
Related Manuals for Bellini BOA605P-W
Summary of Contents for Bellini BOA605P-W
- Page 1 FINELINE:81480 BOA605P-W BOA605P-F BOA605P V.1 OCT18 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au Model: BOA605P-W FINELINE: , BOA605P-F, BOA605P 60cm Black 5 Function Oven...
- Page 2 For all warranty and technical queries please contact 1300 373 199 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au Model: BOA605P-W FINELINE: , BOA605P-F, BOA605P 60cm Black 5 Function Oven...
-
Page 3: Table Of Contents
Content 3-6…………………………………..…………………Important safety information 7-8…………………………………..…………………Installation 9…………………………………..…………………….Prior to start up of the appliance 9-13…………………………………..………………..Your new oven 13…………………………………..…………………..Before using the oven for the first time 14…………………………………..…………………..How to operate the oven 15…………………………………..…………………..Troubleshooting 16-17…………………………………..……………..Baking and grilling tips 18-19…………………………………..……………..Maintenance and cleaning 20…………………………………..…………………..Environmental note... - Page 4 Important safety information This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance.
- Page 5 unless necessary for cooking or cleaning purposes. ertain types of vinyl or laminate ● nly use utensils that are suitable for kitchen furniture are particularly prone ● use with ovens. to heat damage or discolouration at temperatures below the guidelines given above.
- Page 6 In case of malfunction, repairs are to be General Safety conducted by qualified personnel only. o avoid damaging the cord, do not o not place heavy objects on the oven ● ● squeeze, bend or chafe it on sharp door or lean them on the oven door edges.
- Page 7 herefore, it should handle the product onnect the incoming positive, neutral ● ● with the greatest care to avoid shocks and earth cables to the terminals of the and twists, especially during installation. switched fused connection unit. Ensure connections are tight. void installing this type of product in ●...
- Page 8 Installation Before installation The appliance should be installed built in the cabinet . It should be keep safety distance with appliance and the kitchen walls. Detail pls check below picture . (values in mm). Surfaces, synthetic laminates and adhesives used must be heat resistant(100℃ minimum), and neighboring unit fronts up to 70℃.
- Page 9 This appliance must be earthed! Bellini shall not be held responsible for any damage caused by using the appliance without an earthed socket. Risk of electric shock, short circuit or fire by unprofessional installation! The appliance may be connected to the mains supply only by an authorized qualified person and the appliance is only guaranteed after correct installation.
-
Page 10: Prior To Start Up Of The Appliance
Prior to start up of the appliance Once this simple operation has been carried out the oven is ready to use for cooking. This appliance is exclusively for domestic use. Use the oven to cook food only. ... - Page 11 B. Technical specifications 220-240V～50Hz Voltage/frequency Total power consumption 1.850KW Cable type/section H05VV-F 3*1.5mm Cable length 1.2m External dimensions(height/width/depth) 595/595/575(mm) Main oven Multifunction oven Energy efficiency class Oven lamp 25W/300°C Grill power consumption 1.850KW Electrical principle diagram...
- Page 12 C. Your accessories The accessories supplied with your appliance are suitable for making many meals. Ensure that you always insert the accessories into the cooking compartment the right way round. There is also a selection of optional accessories, with which you can improve on some of your favorite dishes, or simply to make working with your oven more convenient.
- Page 13 D. Control panel Here, you will see an overview of the control panel. Depending on the appliance model, individual details may differ. E. The oven timer and On-OFF selector 1. To turn the oven ON, please select ON; To turn the oven OFF, please select 0. 2.To use the timer,select a time between 0-120, the oven will switch off when the timer has reached 0.
-
Page 14: Before Using The Oven For The First Time
Function selector Use the function selector to set the type of heating. This appliance have 5 grill functions available. OVEN LIGHT: Separate light control which allows the light to be switched on, even when the oven is not cooking. DEFROST: The fan runs without heat to reduce the defrosting time of frozen foods. -
Page 15: How To Operate The Oven
2. While cooking your dishes, perform a preheating operation if it is advised in the user manual or cooking instructions. 3. Do not open the door of the oven frequently during cooking. 4. Try to cook more than one dish in the oven at the same time, whenever possible . You can cook by placing two cooking vessels onto the wire grill. -
Page 16: Troubleshooting
Troubleshooting In the event of the oven breaking down please refer to the trouble shooting guide below before telephoning the service department. Some problems can be resolved without requiring an engineer visit. Normal operation： When oven working, you may hear some noises caused by the expansion of the metal. Foods with high moisture content will produce steam. - Page 17 Baking and grilling tips Baking tips 1. How to establish whether sponge cake is baked through. Approximately 10 minutes before the end of the baking time specified in the recipe, stick a cocktail stick into the cake at the highest point. If the cocktail stick comes out clean, the cake is ready. 2.
- Page 18 Grilling tips When grilling, preheat the oven for approx. 4 minutes, before placing the food into the cooking compartment. Always grill with the oven door closed. As far as possible, the pieces of food you are grilling should be of equal thickness. This will allow them to brown evenly and remain succulent and juicy.
- Page 19 Maintenance and cleaning The oven should be cleaned after every use. When cleaning the oven the lighting should be switched on to enable you to see the surfaces better. The oven chamber should only be washed with warm water and a small amount of washing-up liquid.
- Page 20 Remove the door Full open the door. Fold up the right and left side of locking rod. (Fig A) Close the door until reach to stop step, hold on both left and right sides of the door, then reclose the door, upward and downward and pull out the door.
-
Page 21: Environmental Note
Regular inspections Besides keeping the cooker clean, you should: 1. Carry out periodic inspections of the control elements and cooking units of the cooker. After the guarantee has expired you should have a technical inspection of the cooker carried out at a service centre at least once every two years. 2. - Page 22 Consumer until the expiry of three (3) year (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge.
- Page 23 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
