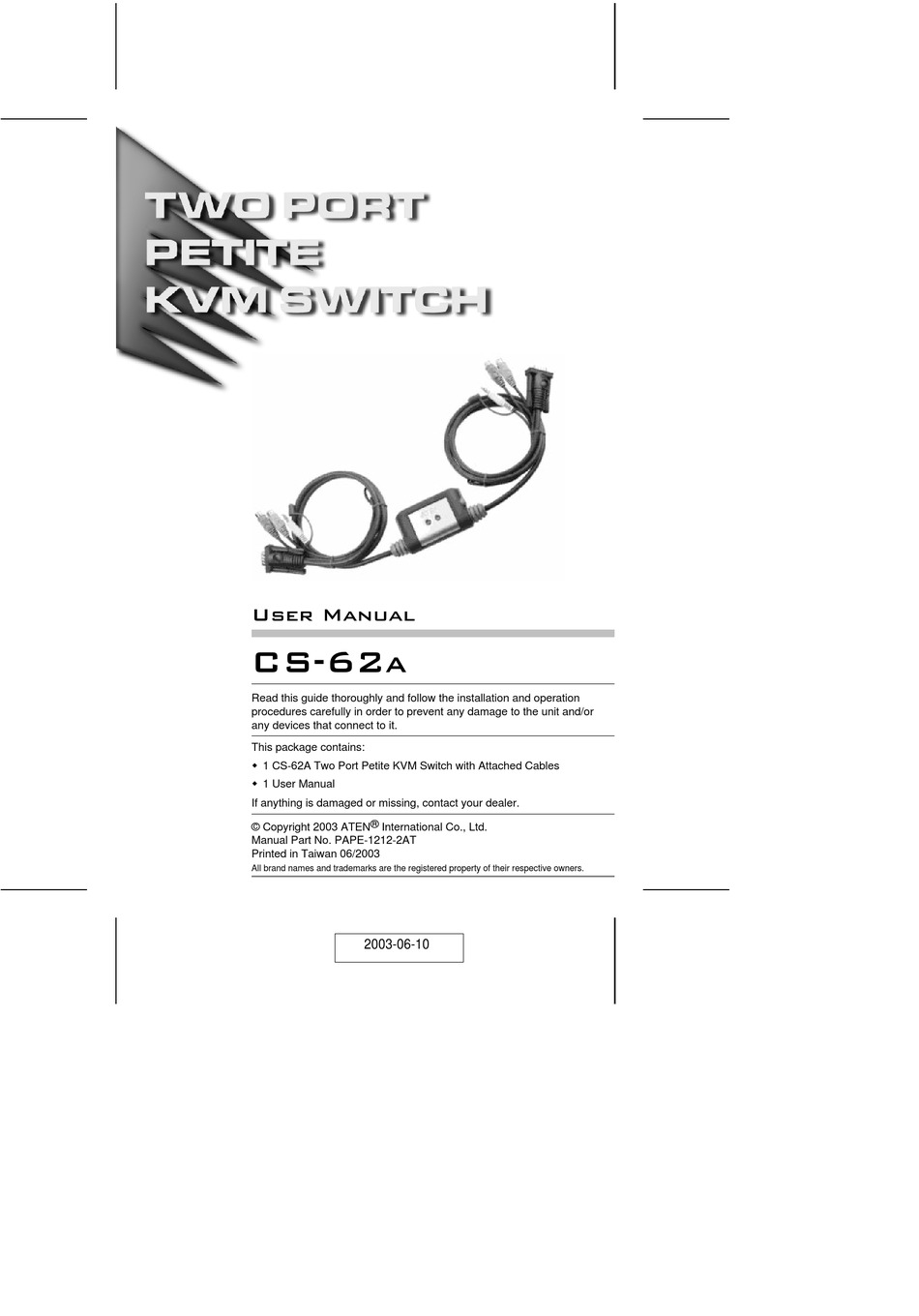

User Manual
CS-62
A
Read this guide thoroughly and follow the installation and operation
procedures carefully in order to prevent any damage to the unit and/or
any devices that connect to it.
This package contains:
M 1 CS-62A Two Port Petite KVM Switch with Attached Cables
M 1 User Manual
If anything is damaged or missing, contact your dealer.
© Copyright 2003 ATEN ® International Co., Ltd.
Manual Part No. PAPE-1212-2AT
Printed in Taiwan 06/2003
All brand names and trademarks are the registered property of their respective owners.
2003-06-10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ATEN CS-62A
Summary of Contents for ATEN CS-62A
-
Page 1: User Manual
This package contains: M 1 CS-62A Two Port Petite KVM Switch with Attached Cables M 1 User Manual If anything is damaged or missing, contact your dealer. - Page 2 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 Overview The CS-62 Petite KVM Switch is a control unit that allows access to two computers from a single console (keyboard, monitor, and mouse). Before the development of the CS-62 the only way to control multiple computer configurations from a single console was through a complex and costly network system.
- Page 4 Features M One console controls two computers M Compact design features two attached KVM (keyboard, video, mouse, and speaker) cables M Speaker enabled M Easy to install - no software required - connecting cables to the computers is all it takes M Easy to operate - computer selection via Hotkeys - Auto Scan function to monitor computer operation M Hot pluggable - add or remove computers for maintenance...
-
Page 5: Hardware Requirements
Hardware Requirements Console M A VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any computer in the installation M A PS/2 Style Mouse M A PS/2 Keyboard Computers The following equipment must be installed on each computer that is to be connected to the system: M A VGA, SVGA or Multisync card. -
Page 6: Front View
Front View 1. Port LEDs A LED lights to indicate its corresponding port is the one that has the KVM focus. Depending on the port’s status, the LED may flash according to a specific pattern (see the LED Display Table, p. 8, for details). 2. -
Page 7: Installation
Installation Before you begin, make sure that power to all the devices you will be connecting up have been turned off. You must unplug the power cords of any computers that have the Keyboard Power On function. Otherwise, the switch will receive power from the computer. - Page 8 - 6 - 2003-06-10...
-
Page 9: Operation
Operation Accessing both of your computers from a single console could not be easier. The CS-62 uses Hotkey combinations to provide KVM focus to the computers. The Hotkey combinations allow you to: M Select the Active Port M Invoke Auto Scan Mode M Set the Auto Scan Time Interval Selecting the Active Port You can toggle the KVM focus between the two computers by... - Page 10 Changing the Scan Interval Before you invoke Auto Scanning you can change the amount of time Auto Scan dwells on each port. To do so, use the following Hotkey combination. [Left shift] [Right shift] [S] [n] Where n represents a number from 1 to 4 that specifies the desired scan interval time, as shown in the table below: Scan Interval 3 secs...
-
Page 11: Specifications
Specifications Function Specification Computer Connections Port Selection Hot Keys LEDs Selected Console Ports Keyboard 1 x 6 pin mini-DIN female (purple) Mouse 1 x 6 pin mini-DIN female (green) Video 1 x HDB-15 female (blue) Audio 1 x Earphone Jack CPU Connectors Keyboard 2 x 6 pin mini-DIN male (purple) Mouse... -
Page 12: Troubleshooting
Troubleshooting Symptom Possible Cause Action Keyboard Not Loose cables. Check all keyboard cable connections Responding to make sure they are completely seated in their sockets. Keyboard needs to be Unplug the keyboard from the Console reset. Keyboard Port, then plug it back in. Switch needs to be Turn off the computers. - Page 13 Symptom Possible Cause Action Mouse Not Switch needs to be Turn off the computers and unplug the Detected, or reset. KVM cables. Wait five seconds; then Does Not plug the cables back in and turn the Respond computers on. Correctly Mouse set to Serial Some mice can be set to act as either Mode.
-
Page 14: Limited Warranty
Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR’S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM THE DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and specially disclaims its quality, performance, merchantability, or fitness for any particular purpose. - Page 15 Notes: - 13 - 2003-06-10...
- Page 16 Notes: - 14 - 2003-06-10...
