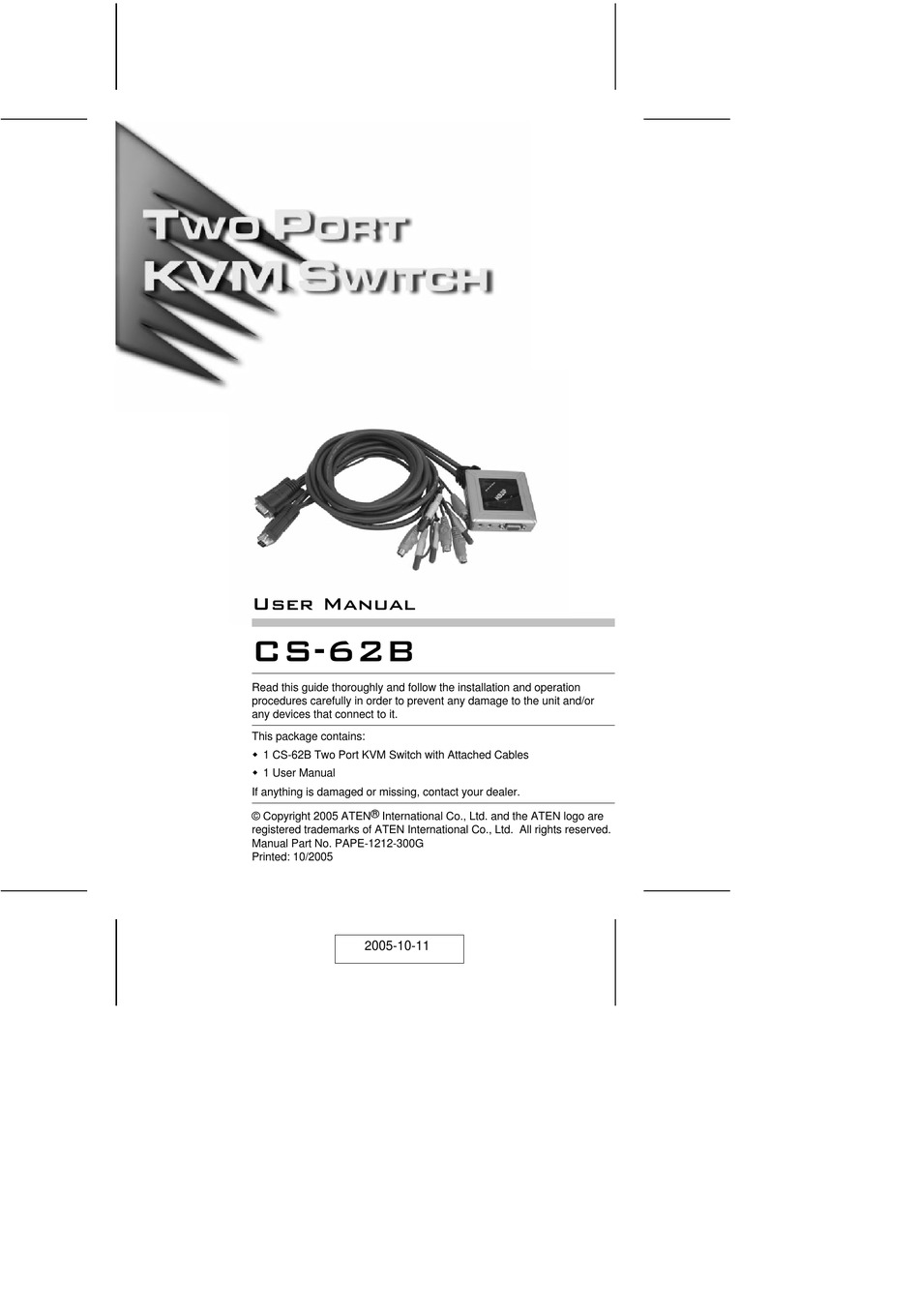

User Manual
CS-62B
Read this guide thoroughly and follow the installation and operation
procedures carefully in order to prevent any damage to the unit and/or
any devices that connect to it.
This package contains:
M 1 CS-62B Two Port KVM Switch with Attached Cables
M 1 User Manual
If anything is damaged or missing, contact your dealer.
© Copyright 2005 ATEN ® International Co., Ltd. and the ATEN logo are
registered trademarks of ATEN International Co., Ltd. All rights reserved.
Manual Part No. PAPE-1212-300G
Printed: 10/2005
2005-10-11
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ATEN CS-62B
Summary of Contents for ATEN CS-62B
-
Page 1: User Manual
M 1 User Manual If anything is damaged or missing, contact your dealer. © Copyright 2005 ATEN ® International Co., Ltd. and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. Manual Part No. PAPE-1212-300G... - Page 2 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 Overview The CS-62B KVM Switch is a control unit that allows access to two computers from a single console (keyboard, monitor, and mouse). Before the development of the CS-62B, the only way to control multiple computer configurations from a single console was through a complex and costly network system.
- Page 4 Features M One console controls two computers M Audio (microphone and speaker) enabled M Compact design features two attached KVM/Audio (keyboard, video, mouse, microphone and speaker) cables M Independent switching of the KVM and Audio focus - one computer can have the KVM focus while the other has the Audio focus M Easy to install - no software required - connecting cables to the computers is all it takes...
-
Page 5: Hardware Requirements
M Speaker and microphone ports (optional) Cables For optimum signal integrity and to simplify the layout, two high quality ATEN Custom KVM cables are integrated the CS-62B KVM Switch. There is no need to purchase cables separately. - 3 -... - Page 6 Components Component Microphone Jack Speaker Jack Monitor Port Mouse Port Keyboard Port Port LEDs: M The Port LED lights GREEN when the computer attached to the corresponding port has the KVM focus. M The Port LED flashes when the corresponding port is accessed during Auto Scan Mode (see p.
-
Page 7: Installation
1. Plug your keyboard, monitor, and mouse into the appropriate ports on the CS-62B KVM Switch. Each port is color coded and labeled with an identifying icon. 2. (Optional) Plug your microphone and speakers into the CS-62B’s microphone and speaker jacks. -
Page 8: Installation Diagram
Installation Diagram - 6 - 2005-10-11... -
Page 9: Operation
Operation Accessing both of your computers from a single console could not be easier. The CS-62B uses Hotkey combinations to provide KVM focus to the computers. Entering Hotkey combinations requires pressing keys on the keyboard in a specified order, which performs a function on the KVM switch. -
Page 10: Auto Scan Mode
Auto Scan Mode The Auto Scan feature automatically switches the KVM focus between the two computers at regular intervals. It allows you to monitor activity on both computers without manually switching the focus. The default time interval is 5 seconds. Enter the following Hotkey combination to invoke Auto Scan Mode: [Scroll Lock] [Scroll Lock] [a] [Enter] Once scanning begins, it continues until you press either the... - Page 11 Toggle KVM or Audio Individually To toggle only the KVM focus, enter the following Hotkey combination: [Scroll Lock] [Scroll Lock] [k] [Enter] To toggle only the audio focus, enter the following Hotkey combination: [Scroll Lock] [Scroll Lock] [s] [Enter] LED Display Table Activity Indication Port is not selected.
-
Page 12: Specifications
Specifications Function Specification Computer Connections Port Selection Hotkeys Port LEDs Console Keyboard 1 x 6 pin mini-DIN female (purple) Connectors Mouse 1 x 6 pin mini-DIN female (green) Video 1 x HDB-15 female (blue) Speakers 1 x mini stereo jack female (green) Microphone 1 x mini stereo jack female (pink) Computer... -
Page 13: Troubleshooting
Troubleshooting Symptom Possible Cause Action Keyboard Not Loose cables. Check all keyboard cable connections Responding. to make sure that they are completely seated in their sockets. Keyboard needs to be Unplug the keyboard from the Console reset. Keyboard Port,and then plug it back in. Switch needs to be Turn off the computers. - Page 14 Bandwidth set too bandwidth. high. The CS-62B is designed to work with PS/2 keyboards. Some Notebooks, such as the IBM Thinkpad and Toshiba Tecra, have trouble when their mouse and keyboard ports are used simultaneously. To avoid this problem, only connect the mouse port or the keyboard port.
-
Page 15: Limited Warranty
Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR’S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM THE DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and specially disclaims its quality, performance, merchantability, or fitness for any particular purpose. - Page 16 Notes: - 14 - 2005-10-11...
