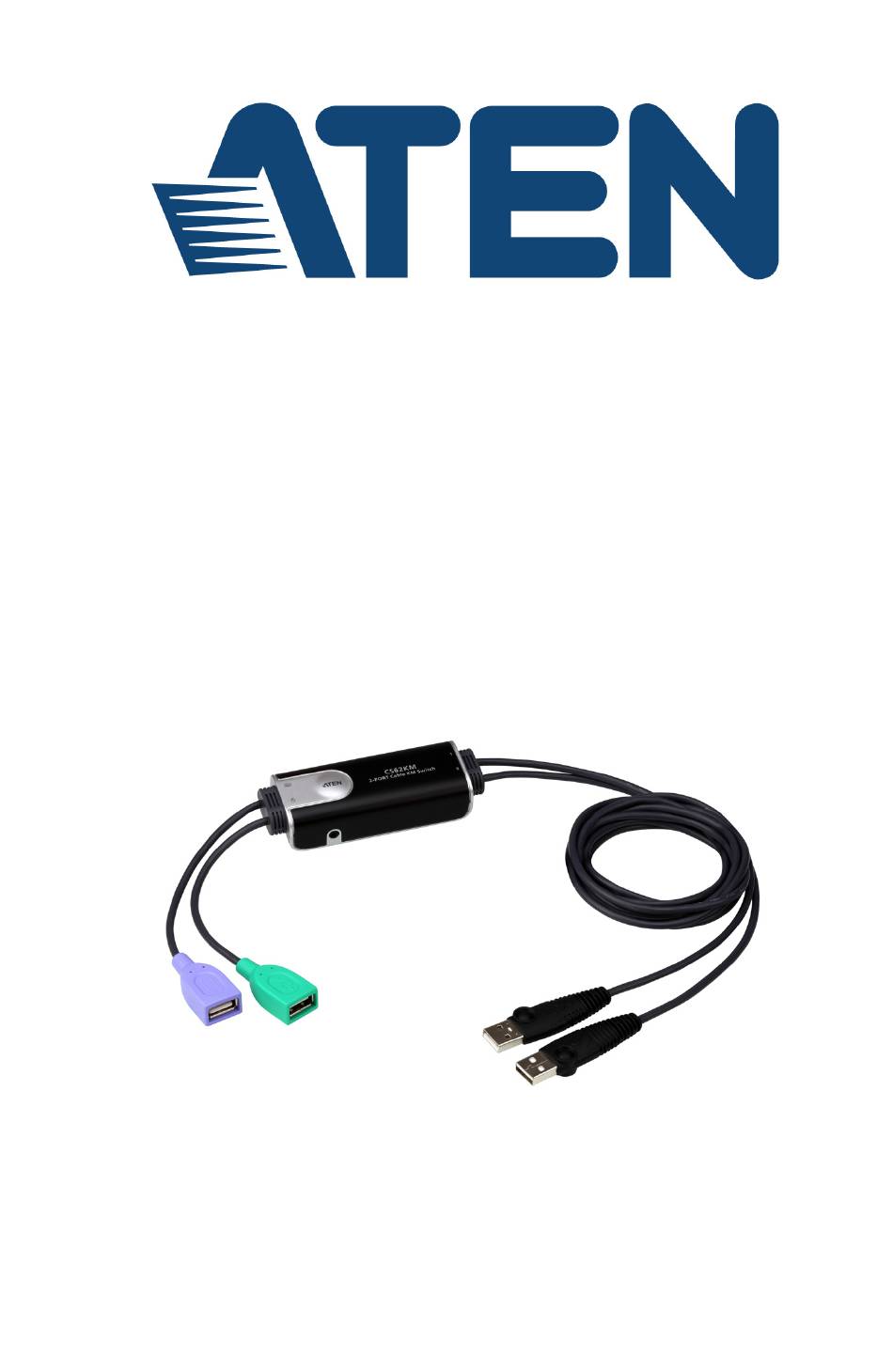

- Page 1 2-Port USB Boundless Cable KM Switch CS62KM User Manual www.aten.com...
-
Page 2: Emc Information
CS62KM User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: Rohs
CS62KM User Manual RoHS This product is RoHS compliant. V M + 多 電 腦 切 換 器 類 產 品 CS62KM 備 名 稱 埠 U SB 鍵 盤 / 滑 鼠 無 邊 快 切 型 號 ( 型 式 ) -
Page 4: User Information
CS62KM User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 5: Package Contents
Note:*Features may have been added to the CS62KM since this manual was printed. Please visit our website to download the most up-to-date version of the... -
Page 6: Table Of Contents
Components ..........4 CS62KM Hardware View ........4 2. - Page 7 CS62KM User Manual Alternate Port Switching Keys ....... 13 Keyboard Operating Platform ....... 14 List Switch Settings .
-
Page 8: About This Manual
CS62KM User Manual About this Manual This user manual is provided to help you get the most from your CS62KM unit. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below. -
Page 9: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... - Page 10 CS62KM User Manual This Page Intentionally Left Blank...
-
Page 11: Introduction
Chapter 1 Introduction Overview The CS62KM is a 2-port USB Cable KM Switch that enables users to control up to 2 computers with a single keyboard and mouse. It features various innovative port selection methods. Users can switch between the connected computers via remote port selector, keyboard hotkey, mouse cursor, and mouse wheels. -
Page 12: Features
CS62KM User Manual Features Single USB keyboard and mouse controls up to 2 computers Boundless Switching – simply move the mouse cursor across the display border and onto the corresponding display of the target computer to switch the keyboard/mouse operations from one computer to the next ... -
Page 13: Requirements
Chapter 1. Introduction Requirements Console A USB mouse A USB keyboard Computers The following equipment must be available on each computer: Video Display USB Type A port Operating Systems Version Windows 2K / XP / 2003 / 2008 / Vista (x64 / x86) / 7 / 10 and higher... -
Page 14: Components
CS62KM User Manual Components CS62KM Hardware View Component Description Port Selection Press the port selection button to toggle the KM and focus Button between the two computers. Port 1 LED Lights when the corresponding computer port has the KM focus. - Page 15 Chapter 1. Introduction Component Description PC 2 USB Connects the second computer here. Cable Remote Port Plugs the remote port selector cable here if you choose to Selector Jack use the remote port selector.
- Page 16 CS62KM User Manual This Page Intentionally Left Blank...
-
Page 17: Hardware Setup
Chapter 2 Hardware Setup 1. Important safety information regarding the placement of this device is provided on page 27. Please review it before proceeding. 2. To prevent damage to your installation from power surges or static electricity. It is important that all connected devices are properly grounded. - Page 18 Remote Port Selector Jack, located on the side of the unit. Note: The switch can be operated with hotkeys alone, so connecting the remote port selector is optional. 4. Power on the computers. Note: Make sure the computers and devices that the CS62KM connects to are also properly grounded.
-
Page 19: Basic Operation
Chapter 3 Basic Operation Port Selection There are four convenient methods to switch between the computers: Manual – by pressing the port selection button; Mouse – by double-clicking the scroll wheel; Hotkey – by entering key combinations on the keyboard; and Boundless Switching–... -
Page 20: Port Id Numbering
Powering Off and Restarting If it becomes necessary to power off the CS62KM unit, before powering it back on, you must do the following: 1. Shut down all the computers that are attached to the switch. -
Page 21: Hotkey Operation
Chapter 4 Hotkey Operation The switch provides an extensive, easy-to-use, hotkey function that makes it convenient to control and configure your KM installation from the keyboard. Port Switching All port switches begin with tapping the [Scroll Lock] key twice. The tables below describe the actions that each key combination performs. -
Page 22: Hotkey Setting Mode
CS62KM User Manual Hotkey Setting Mode Hotkey Setting Mode is used to configure the CS62KM. All operations begin with invoking Hotkey Setting Mode (HSM). Invoking HSM To invoke HSM, do the following: 1. Press and hold down the [Num Lock] key. -
Page 23: Alternate Hsm Invocation Keys
Chapter 4. Hotkey Operation Alternate HSM Invocation Keys An alternate set of HSM invocation keys is provided in case the default set conflicts with programs running on the computers. To switch to the alternate HSM invocation set, do the following: 1. -
Page 24: Keyboard Operating Platform
CS62KM User Manual Keyboard Operating Platform The CS62KM’s default port configuration is for a PC compatible keyboard operating platform. To set the keyboard operating platform to work under special operating system as a standard (104 key) keyboard, or automatically detect and set the keyboard operating platform, follow the steps below: 1. -
Page 25: Keyboard Language
Chapter 4. Hotkey Operation Keyboard Language To change the keyboard language, do the following: 1. Invoke HSM (see page 12). 2. Press [F6] [nn] [Enter]. Note: nn is a two-digit number that represents the keyboard language code (US English: 33; French: 08; Japanese: 15; German: 09). Port Switching Keys To enable or disable the port switching activation keys, do the following:... -
Page 26: Power On Detection
CS62KM User Manual Power on Detection With Power on Detection, if the focus computer is powered off, the switch will automatically switch to the next powered-on computer. Power on Detection can be enabled or disabled. The default setting is enabled. To disable Power on Detection, do the following: 1. -
Page 27: Screen Size
Chapter 4. Hotkey Operation Screen Size Sets the screen size of each monitor so that the CS62KM knows to switch computers when the mouse cursor moves from one computer's screen to the next. To set the screen size, do the following: 1. - Page 28 CS62KM User Manual number in order as it appears in the layout, left-to-right, beginning with Row A. The number represents the computer connected to a port # on the CS62KM. Examples are provided below with different layouts and arrows showing where the mouse cursor can cross display borders to switch computers.
-
Page 29: Hsm Summary Table
Chapter 4. Hotkey Operation HSM Summary Table After invoking HSM (see page 12), key in one of the following keys to perform the corresponding function: Function Enable/Disable the Power on Detection feature. Toggles between the default and alternate HSM invocation keys. Start screen size configuration mode. - Page 30 CS62KM User Manual This Page Intentionally Left Blank...
-
Page 31: The Firmware Upgrade Utility
1. From a computer that is not part of your KM installation, go to our Support & Download → Downloads site and choose the model name that relates to your device (CS62KM) to get a list of available Firmware Upgrade Packages. 2. Choose the Firmware Upgrade Package you want to install (usually the most recent), and download it to your computer. - Page 32 Connector to a USB port on the computer you have downloaded the Firmware Upgrade Packages to. 6. The CS62KM now enters Firmware Upgrade Mode. The two ports LEDs flash together to indicate Firmware Upgrade Mode is in effect. Note: While the CS62KM is in Firmware Upgrade Mode, normal keyboard and mouse functions are suspended.
-
Page 33: Starting The Upgrade
6. The Firmware Upgrade Utility Starting the Upgrade 1. Run the downloaded Firmware Upgrade Package file – either by double clicking the file icon, or using a command line to enter the full path. The Firmware Upgrade Utility Welcome screen appears: 2. - Page 34 CS62KM User Manual 4. As you select a device in the list, its description appears in the Device Description panel.After you have made your device selection(s), click Next to perform the upgrade. If you enabled Check Firmware Version, the Utility compares the device’s firmware level with that of the upgrade files.
-
Page 35: Upgrade Successful
After the upgrade has completed, a screen appears to inform you that the procedure was successful: Click Finish to close the Firmware Upgrade Utility. After a successful completion, the CS62KM exits Firmware Upgrade Mode, and resets itself. Upgrade Failed If the Upgrade Successful screen does not appear, it means that the upgrade failed to complete successfully, and you should repeat the upgrade procedure from the beginning. - Page 36 CS62KM User Manual This Page Intentionally Left Blank...
-
Page 37: Appendix
Appendix Safety Instructions Read all of these instructions. Save them for future reference. This device is for indoor use only. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 38 CS62KM User Manual To help protect your system from sudden, transient increases and decreases in electrical power, use a surge suppressor, line conditioner, or un-interruptible power supply (UPS). Position system cables and power cables carefully; Be sure that nothing rests on any cables.
-
Page 39: Technical Support
Appendix Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, see Telephone Support on page iv. North America Email Support support@aten-usa.com Online Troubleshooting http://eservice.aten.com Technical Documentation Support Software Updates... -
Page 40: Specifications
CS62KM User Manual Specifications Function CS62KM Computer Connections Port Selection Hotkey, Mouse Wheel*, Mouse Cursor, Remote Port Selector Connectors Console Ports 2 x USB Type A Female KVM (Computer) Ports 2 x USB Type A Male Remote Port Selector 1 x 2.5mm Audio Jack Female... -
Page 41: Troubleshooting
Appendix Troubleshooting Operation problems can be due to a variety of causes. The first step in solving them is to make sure that all cables are securely attached and seated completely in their sockets. In addition, updating the product’s firmware may solve problems that have been discovered and resolved since the prior version was released. -
Page 42: Hotkey Default Settings
CS62KM User Manual Hotkey Default Settings The hotkey factory default settings are as follows: Setting Default Port Switching [Scroll Lock] [Scroll Lock] Invoking HSM [Num Lock] [-] Mouse Emulation Enabled Keyboard Language English Keyboard Mapping Auto Detect Mouse Wheel Switching... -
Page 43: Limited Warranty
ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product. - Page 44 CS62KM User Manual MEMO...
- Page 45 Appendix MEMO...
- Page 46 CS62KM User Manual MEMO...
- Page 47 Appendix MEMO...
- Page 48 All other brand names and trademarks are the registered property of their respective owners. ATEN International Co., Ltd., 3F, No. 125, Sec. 2, Datung Rd., Sijhih District, New Taipei City 221, Taiwan Phone: 886-2-8692-6789 Fax: 886-2-8692-6767 TECHNICAL SUPPORT CENTER: 886-2-8692-6959...
