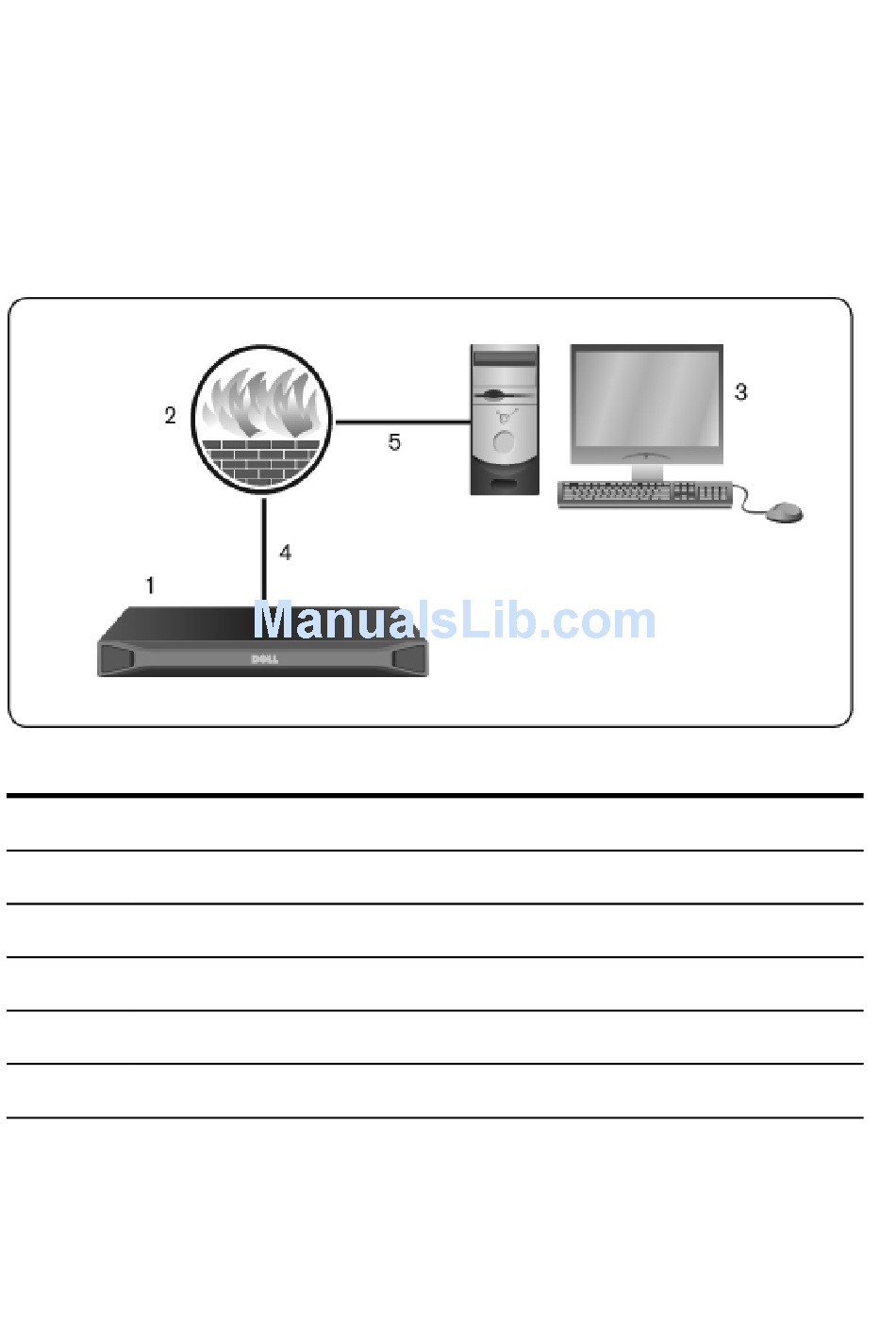

The following figure and table provide a typical configuration where the user's
computer is located outside of the firewall and the switch resides inside the
firewall.
Figure 2.13: Typical SCS Firewall Configuration
Table 2.7: Descriptions for Figure 1
Number Description
1 Server Console Switch.
2 Firewall.
3 User's computer.
4 Firewall forwards HTTP requests and KVM traffic to the switch.
5 User browses to IP address outside the firewall.
