Appendix B: Setup Port Pinouts

The SCS 10101 setup port is an 8-pin modular jack. The setup port pinouts and
descriptions are provided in the following figure and table.

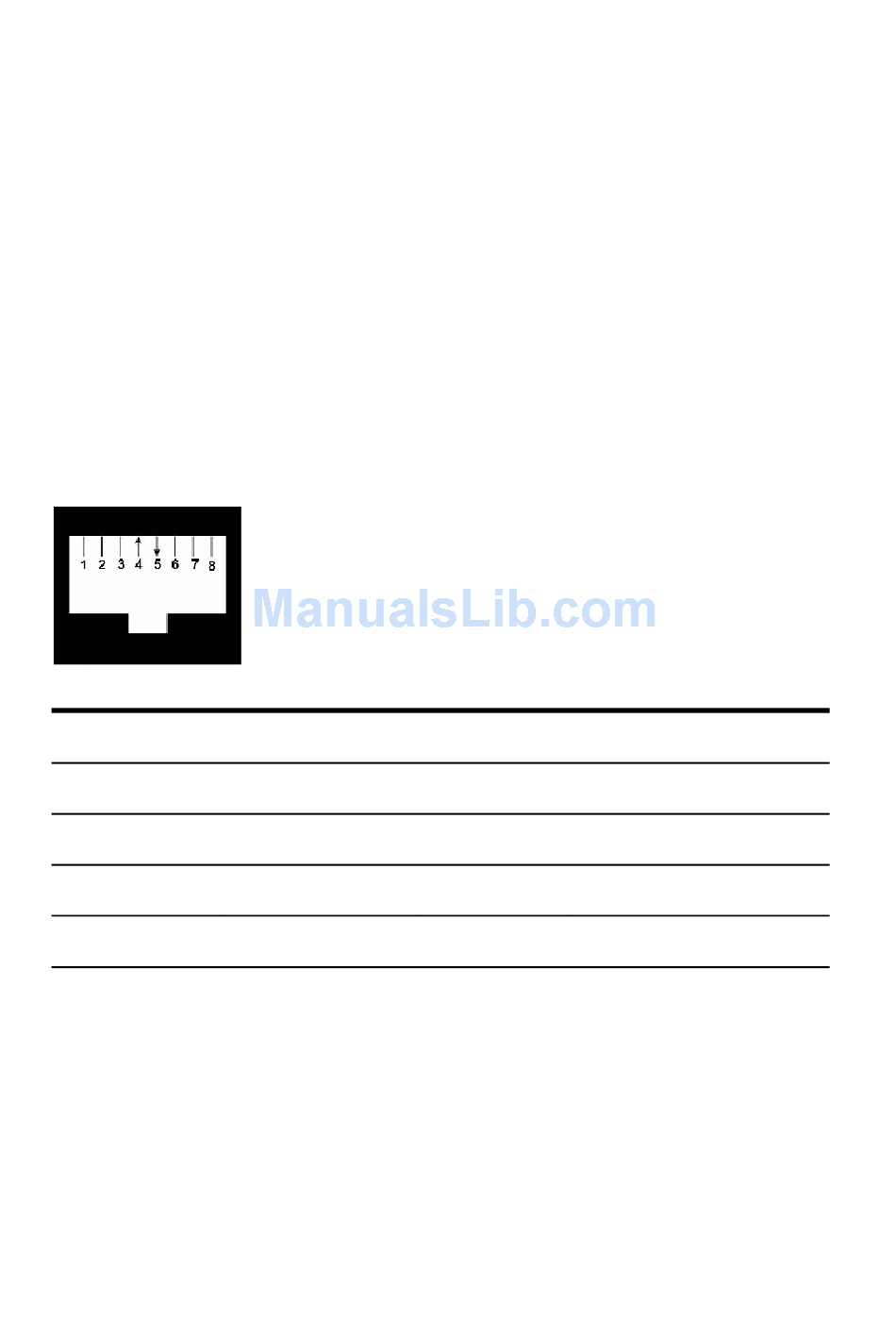

Figure B.1: Setup Port Pinouts
Table B.1: Console/Setup Port Pinout Descriptions
Pin Number
1
2
3
4
Description
No Connection
No Connection
No Connection
Receive Data (RXD)
Pin Number Description
5 Transmit Data (TXD)
6 Signal Ground (SG)
7 No Connection
8 No Connection
