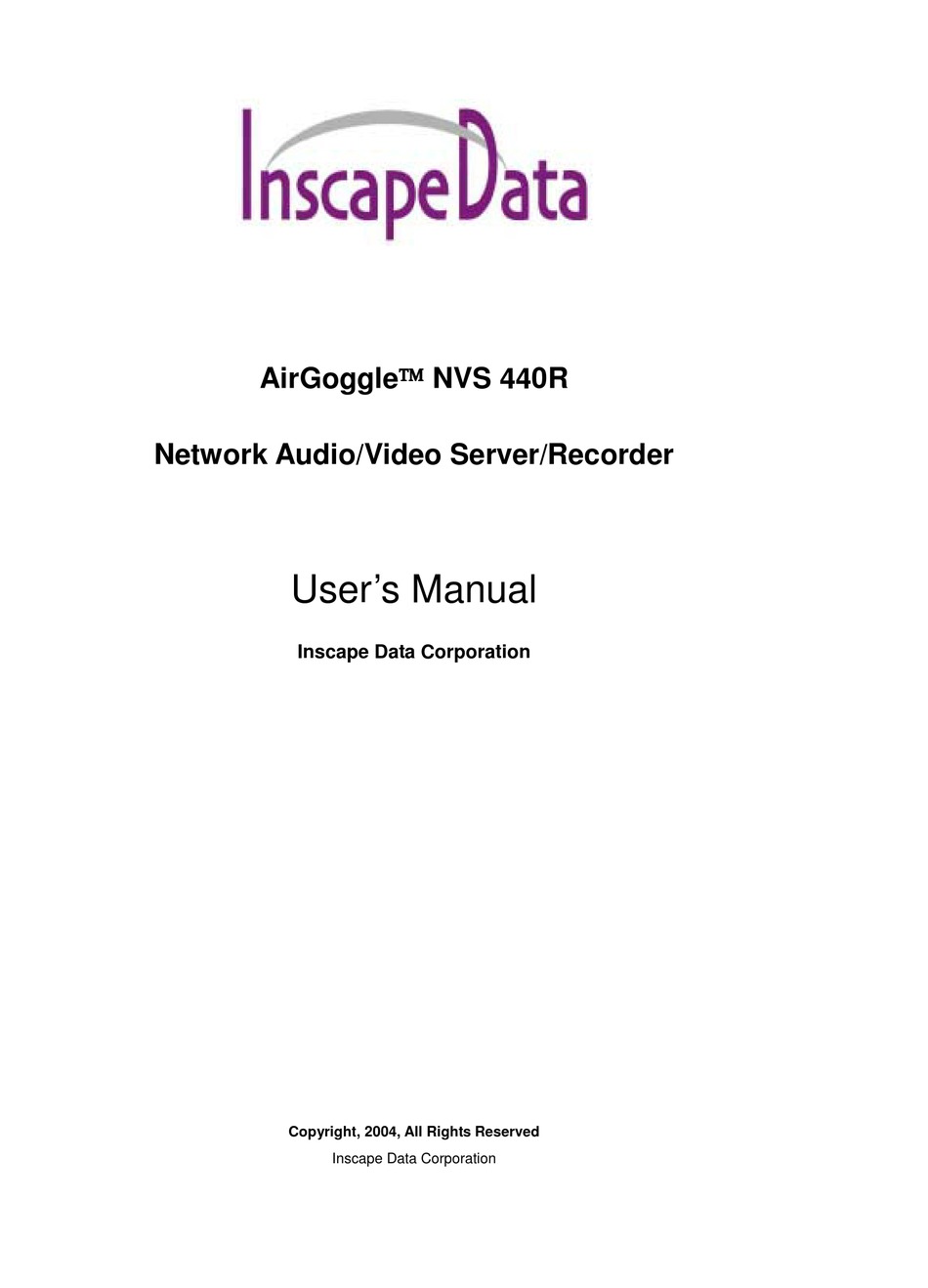

AirGoggle    NVS 440R
Network Audio/Video Server/Recorder
User's Manual
Inscape Data Corporation
Copyright, 2004, All Rights Reserved
Inscape Data Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AirGoggle NVS 440R and is the answer not in the manual?

Questions and answers

Related Manuals for Inscape Data AirGoggle NVS 440R

Summary of Contents for Inscape Data AirGoggle NVS 440R

  • Page 1 AirGoggle    NVS 440R Network Audio/Video Server/Recorder User’s Manual Inscape Data Corporation Copyright, 2004, All Rights Reserved Inscape Data Corporation...
  • Page 2 NVS440R User’s Guide Directions NVS440 is designed for indoor use only. When using NVS440R outdoors or in an environment that exceeds the limited range, you must separately use a water-resistant case. Be careful not to cause any physical damage by dropping or throwing the NVS440R A/V Server. Especially keep the A/V server out of reach from children.
  • Page 3 NVS440R User’s Guide Caution Any changes or modifications in construction of this device that are not expressly approved by Inscape Data could void the user’s authority to operate the equipment. Caution None of the parameters in administrative page should be changed while NVS440R is recording video or while you are playing back recorded video from NVS440R.

  • Page 4: Table Of Contents

    NVS440R User’s Guide Table of Contents 1. Introduction..............................6 1.1. Overview........................... 6 1.2. Features of NVS440R......................6 1.3. Applications of NVS440R ..................... 7 2. Product Description............................8 2.1. Contents ........................8 2.2. Content Preview........................ 8 2.3. Physical description......................9 2.4. PC Requirements ......................11 2.5 Quick Installation Guide....................
  • Page 5 NVS440R User’s Guide 6.3. How To Upgrade Your NVS440R System ................. 41 6.4. How to Replace Hard Disk on NVS440R ................42 - - - - 5 5 5 5 - - - -...

  • Page 6: Introduction

    NVS440R User’s Guide 1. Introduction 1.1. Overview The NVS440R is a state-of-the-art 4-channel network DVR and A/V server. It is a culmination of standard A/V codec technologies such as MPEG4 and ADPCM, embedded web server, embedded streaming server, various network protocols and Hard Disk manipulation technology. NVS440R offers premium grade DVR and A/V server.

  • Page 7: Applications Of Nvs440R

    NVS440R User’s Guide Compact size : World’s smallest size 4 channel DVR Time-Search-Slider Control for moving to arbitrary time during playing back mode. High data compression ratio. Quadplex feature - Simultaneous operation of recording, playback, search, and on-line Download and store feature of recorded A/V data Dual simultaneous streaming video feature: To provide high quality video recording on local HDD while providing low speed on-line streaming video to users connected through low speed network.

  • Page 8: Product Description

    NVS440R User’s Guide 2. Product Description 2.1. Contents Open the package and check for the following items: Contents Description Remarks Main Unit with HDD NVS440R DVR and A/V server (120Gbytes) Input : 100~250V 50-60Hz AC Power Adapter Output : +12V, 2.0A AC Power Cable AC 250V, 10A~16A For direct connection...

  • Page 9: Physical Description

    NVS440R User’s Guide 2.3. Physical description 2.3.1. Front panel Figure 2-1. Front panel of NVS440R " Status indicator: As shown in Figure 2-1, there are three status indicator LEDs. From left to right they are HDD, LAN and Power. HDD : HDD access indicator, LED turn on when HDD is being busy. LAN : Link indicator, continuous green light means that LAN is in normal state.
  • Page 10 NVS440R User’s Guide 2.3.2. Rear panel Figure 2-2. Rear Panel of NVS440R " Ethernet : 10/100 Mbps Ethernet connector (RJ-45). " Line/Mic In: They are used to connect external audio source or microphone to NVS440R. There are 4 Line/Mic. In connectors. Use Standard stereo earphone jack for the connection.

  • Page 11: Pc Requirements

    NVS440R User’s Guide shorts the two terminals providing a complete electrical path. Two Relay output interface, A and B, are provided. " Alarm Input : The 4 port alarm sensor input connections provides external alarm sensors such as infrared, heat, or magnetic sensors. "...
  • Page 12 NVS440R User’s Guide Cable modem you will need supplementary information provided by your ISP. 3. Connect to NVS440R in Administrator Mode for initial parameter set-up. All parameters are set to factory default state when NVS440R is delivered to you. Detailed information of using administration mode can be found in section 5 [5.
  • Page 13 NVS440R User’s Guide Connecting Alarm Example: IR sensor, Motion Sensor, Smoke Alarm IN 1 to 4 Sensor Detector, and Many more type of sensor. Connecting Alarm RLY Output Example: Siren, Beacon, External Relay. 1 to 2 alerting device RS485 PTZ device control Output signal controlling an PTZ device 5.

  • Page 14: Connecting The Nvs440R

    NVS440R User’s Guide 3. Connecting the NVS440R NVS440R supports LAN, xDSL, and Cable modem. It also support shared IP network where single public IP address is shared by many internal network clients. Refer to [IP-Installer User’s Guide] for details of setting the IP address for the NVS440R.

  • Page 15: Connecting To Xdsl Modem

    NVS440R User’s Guide ② ② ② ② 3.2. Connecting to xDSL Modem 1. After power on, connect the NVS440R to a PC or Notebook via a crossover CAT 5 network cable provided with the system. 2. Setup network parameters by running “IP-Installer.” NVS440R Figure 3-2.

  • Page 16: Connecting To Cable Modem

    NVS440R User’s Guide In most cases when connecting the NVS440R to a xDSL Modem, a standard Ethernet network cable is required. But since a few xDSL Modems uses crossover connections, please verify the interface with your Modem manufacturer. 3.3. Connecting to Cable Modem 1.
  • Page 17 NVS440R User’s Guide Regular LAN cable or crossover cable NVS440R Figure 3-5 Connecting the NVS440R to a Cable Modem In most cases when connecting the NVS440R to a Cable Modem, a standard Ethernet network cable is required. In some cases a crossover connection may be needed. Please verify the interface with your Cable Modem manufacturer.

  • Page 18: Ip-Installer

    NVS440R User’s Guide 4. IP-Installer NVS440R is IP addressable therefore needs an IP address for connection to the network. Inscape Data’s IP- Installer is a PC program developed to assign IP addresses and network parameters to digital video security network products such as Network Video Camera and Network Video Server from Inscape Data. IP-Installer is contained in the CD supplied with your product or it can be downloaded from www.InscapeData.com.

  • Page 19: Configuring The Nvs440R In Administrative Mode

    NVS440R User’s Guide 5. Configuring the NVS440R in Administrative Mode 5.1. Log On There are 2 methods of login into the NVS440R administrative console. One is through standard internet browser and the other is through “NVR100 Software” program. 5.1.1. Using Internet Explorer You can log on to the server by clicking admin mode button or from your internet browser.

  • Page 20: Controlling The Dvr

    NVS440R User’s Guide 5.1.3. Controlling the DVR When the NVS440R is connected through NVR100 Software or internet browser, it is connected as an A/V server. In this mode, the NVS440R functions as a real-time A/V streaming server to the client. A user having the privilege of administrator can enter into DVR control mode by pressing button.

  • Page 21: Basic Setup

    NVS440R User’s Guide 5.2. Basic Setup Setup the basic parameters of the NVS440R. The web interface is shown below in Figure 5-3. Figure 5-3. Basic Setup " Language Selection: You can select a language in the admin page. - Supported languages : English, Korean, Japanese, Chinese, Spanish "...
  • Page 22 NVS440R User’s Guide " Audio Input Selection Select the type of input audio for each channel. Line In is used for connecting audio output from audio devices. Mic is used for connecting the output of microphone. Input Gain : Set the gain of the input audio. "...
  • Page 23 NVS440R User’s Guide " Check After you finish set up of video and audio for all the channels, click on this button to obtain the possible maximum number of users (Possible Max Users) and network bandwidth margin (Remained) remaining. The Check tool will calculate the number of users able to view the video stream without any quality degradation or network congestion.

  • Page 24: Network Configuration

    NVS440R User’s Guide 5.3. Network Configuration Setup the network parameters appropriately in accordance with your network environment. Many of the parameters in this page is the same as those used by “IP-Installer”. Figure 5-4. Network Configuration " IP Assign Type : The network connection types supported by the NVS440R are Static, PPPoE, and DHCP.
  • Page 25 NVS440R User’s Guide Typically xDSL or broadband service providers will need this setting. Fill in the ‘User Name’ and ‘Password’ fields with the values assigned by the internet service provider. - When the network connection type is “automatic IP allocation by DHCP”, select ‘DHCP’ in the network type.

  • Page 26: User Admin & Time Setup

    NVS440R User’s Guide " IP Filtering : You can restrict the access to the administrator page utilizing IP address filtering. - Restrict Administrator Access : Check this box to restrict administrative log on priviledges. - Base IP Address : Input an IP address of the PC which will be used for administrative access. - Mask : This is same as subnet mask.
  • Page 27 NVS440R User’s Guide Password : Admin password. The default password is “dw2001”. Confirm Password : Enter the password once more to confirm the password. If you have forgotten the Administrator’s ID and password, the only means of recovery is to reset the settings to factory default. Doing so will lose your previous settings. Add User Username : Enter the user ID you want to add.

  • Page 28: Sensor & Capture Setup

    NVS440R User’s Guide " Time Setup - Current Time: It displays the current time of NVS440R. - Time Settings : Options for setting the time manually or synchronize to the PC. Options Description “Synchronize With Computer Time” Synchronize the time with the PC time. “Set Manually”...

  • Page 29: Alarm Device Setup

    NVS440R User’s Guide 2. Motion-detected : Motion triggered event from the video channel NOTE: Both conditions are mutually independent in operation. 5.6. Alarm Device Setup The configuration of alarm device output when triggered by an alarm device input(senor or motion detection) can be configured in this page, including output device port test and triggered condition.

  • Page 30: Motion Region Setup

    NVS440R User’s Guide 5.7. Motion Region Setup Set the motion detection regions. Up to 3 separate regions can be defined. After setup the motion detection region, the corresponding selection in “Sensor & Capture Setup” ->“Video Capture Condition” -> “Motion Detection Select” should be enabled, to activate the motion detection and generate the alarm condition. Figure 5-9.
  • Page 31 NVS440R User’s Guide . You can set the region by pressing the “START” button, and click one corner of region in the left viewing. It will show the coordinate value automatically. Next you press the “END” button, and click the opposite diagonal corner. Regions are shown in three different transparent colors for easy identification: red(region 1), green(region 2), blue(region3) “RESET”...

  • Page 32: Ptz Setup

    NVS440R User’s Guide 5.8. PTZ Setup Setup and test the P/T/Z(Pan, Tilt, Zoom) devices. Figure 5-10. PTZ Setup " Channel Selection : Choose the channel having PTZ device. " PTZ Model Selection : Choose the PTZ model for each channel. Different PTZ model can be applied for each channel.
  • Page 33 NVS440R User’s Guide " PTZ Position Setup : You can set up the PTZ limitation & preset positions if the PTZ device supports it. - Panning Limitation : set the left/right limitation and test. - Preset Position : set the preset position and test. NOTE : “PTZ Position Setup”...

  • Page 34: Upgrade & Reset

    NVS440R User’s Guide 5.9. Upgrade & Reset You can upgrade the NVS440R via the network. Figure 5-11. Upgrade & Reset The upgrade software, after release, may be downloaded from Inscape Data’s web site. (Refer to [6.3. How To Upgrade Your NVS440R System] "...
  • Page 35 NVS440R User’s Guide " " " " NOTE: To apply Factory Default Setting, you should reset the system. Once the NVS440R is re-initialized to factory default state, it should be set-up again using IP-Installer. " System Reset : Perform remote reset by clicking the “CONFIRM” button. All users logged on to the NVS440R will be disconnected upon reset.

  • Page 36: Status Report

    NVS440R User’s Guide 5.10. Status Report It reports the system records since the system started. Figure 5-12. Status Report You can use the status report page to troubleshoot or diagnose the NVS440R or to monitor the software versions and event status of the whole system. - - - - 36 36 - - - -...

  • Page 37: Tips For Using Nvs440R

    NVS440R User’s Guide 6. Tips for Using NVS440R 6.1. Alarm Input/Output The Alarm In/RLY OUT Connector is used to connect the various sensing and alerting devices. Examples of sensing devices are infrared sensors, motion sensors, heat/smoke sensors, and magnetic sensor. Examples of alerting devices are Sirens or Beacons.
  • Page 38 NVS440R User’s Guide Figure 6-2. Alarm input circuit of NVS440R 2. Alarm Output(RLY OUT) Alarm output is configured as a relay circuit. Relay circuit in normal operation is open and circuit is closed upon input trigger from motion or external sensor. The relay is capable of switching 30V/2A electrical signal.

  • Page 39: Trouble Shooting

    NVS440R User’s Guide 6.2. Trouble Shooting • NVS440R in viewing mode, neither channel name nor video is display and eventually timeout message is shown up. Check the power and network connection of NVS440R. To check if the network is properly operating, open the browser and try to connect to any server. Example) http://www.InscapeData.com Or open the MS-DOS Prompt and type the following.
  • Page 40 NVS440R User’s Guide 400Kbps, set the total “Max. Bandwidth” of the 4 channels to 384Kbps. If you set it higher, the video image can be corrupted with artifacts. Ask your network manager or ISP for maximum uploading bandwidth of the network. Check whether dual streaming mode is enabled and NVS440R is recording video.
  • Page 41 NVS440R User’s Guide 6.3. How To Upgrade Your NVS440R System 1. Log on to administration mode and select “Update & Reset” menu. 2. Click "Browse..." to find the files you want to use for upgrade. This will open a "Choose file" dialogue window.
  • Page 42 NVS440R User’s Guide 6.4. How to Replace Hard Disk on NVS440R NVS440R has a hard disk that can be replaced when needed. To replace the hard disk follow the procedures described below. 1. Remove the 4 screws joining the front panel to the body of NVS440R. 2.
  • Page 43 NVS440R User’s Guide 4. Carefully slide the Hard Disk Drive out from the chasis. NOTE: Any shock induced to the Hard Drive may result in damage. 5. Unplug the IDE cable from the Hard Disk. - - - - 43 43 - - - -...
  • Page 44 NVS440R User’s Guide 6. Install a new hard disk and follow the reverse procedure from step 5 back to step 1. 7. Format the New Hard drive by using the format command of NVR100 Software. If the Hard Drive has already been previously formatted by NVR100, then this is not necessary.
