Baumatic ISLW5SS User Manual

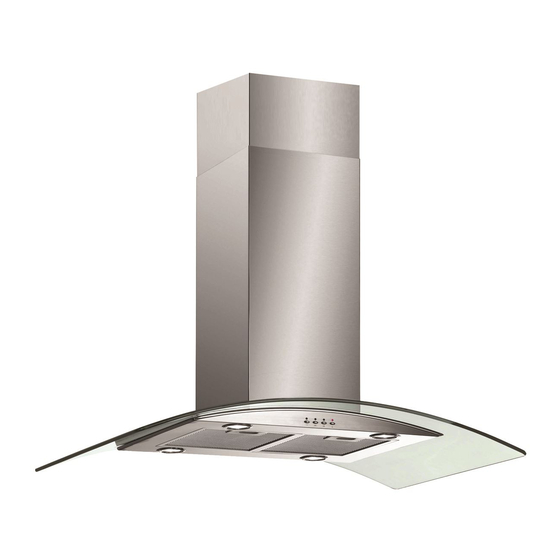

90 cm glass island cooker hood in stainless steel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual for your
90 cm Glass island cooker hood in
NOTE
: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
ISLW5SS
Cooker Hood

stainless steel

DD 08/05/09
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISLW5SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baumatic ISLW5SS

Summary of Contents for Baumatic ISLW5SS

  • Page 1: Stainless Steel

    User Manual for your ISLW5SS Cooker Hood 90 cm Glass island cooker hood in stainless steel NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...

  • Page 2: Table Of Contents

    Contents Page Environmental note IMPORTANT SAFETY INFORMATION 5 – 7 Specifications of your cooker hood Using your cooker hood 9 - 10 Before first use To use your cooker hood 9 – 10 Cleaning your cooker hood The grease filters Maintenance 11 - 14 Removing and cleaning the grease filters...

  • Page 3: Environmental Note

    ENVIRONMENTAL NOTE Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person.

  • Page 4: Important Safety Information

    IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to us. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained this booklet, please contact the Advice L ine.
  • Page 5 o The edges of the cooker hood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS! o If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.
  • Page 6 o Remember that when in extraction mode, your cooker hood is removing air from your room. Ensure that proper ventilation measures are being observed. o Note that it removes odours from your room, not steam. o Warning - Always ensure that the cooker hood has been disconnected from the power supply before carrying out any work on the hood, including replacing light bulbs.

  • Page 7: Specifications Of Your Cooker Hood

    Specifications of your cooker hood Congratulations on purchasing a cooker hood! PRODUCT DIMENSIONS Height: 690 mm * – 1190 mm Width: 900 mm Depth: 600 mm DIMENSIONS OF CHIMNEY SECTION 270 mm x 285 mm o Superior extraction tangential motor o Electronic pushbutton operation o 3 Speeds o 2 Metallic grease filters...

  • Page 8: Using Your Cooker Hood

    Using your cooker hood Before first use IMPORTANT: THIS PROCESS MUST BE FOLLOWED BEFORE THE COOKER HOOD IS USED FOR THE FIRST TIME. o You should use a good quality stainless steel cleaner and polish on ALL of the stainless steel areas of your cooker hood, before it is used for the first time.

  • Page 9: Cleaning Your Cooker Hood

    = Light on/off button IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR HOOD TEN MINUTES BEFORE YOU START TO COOK, OR AT THE VERY LEAST WHEN YOU BEGIN COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR TEN MINUTES AFTER YOU HAVE FINISHED COOKING. Cleaning your cooker hood IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT YOU HAVE SWITCHED YOUR...

  • Page 10: Maintenance

    The grease filters o Your cooker hood includes two grease filters which help to absorb grease particles to protect your kitchen & furniture from greasy residues. o The metallic filters may become inflammable if they become saturated with this greasy residue. o To prevent this fire hazard, the filters should be cleaned regularly.

  • Page 11: Changing A Light Bulb

    o Refit the grease filters once it has dried. o IMPORTANT: Let the grease filters dry thoroughly before refitting them in the cooker hood. Changing a light bulb IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY.

  • Page 12: Fitting The Carbon Filter

    o IMPORTANT: Defective bulbs should be replaced immediately. o If the lights still do not work, make sure that the bulbs are fitted properly into their housings before you call for technical assistance. o Refit the grease filters. Fitting the carbon filter If the appliance is going to be used in recirculation mode then it is necessary to fit a carbon filter.

  • Page 13: Installation

    3) After inserting the front edge of the carbon filter into the slot on the cooker hood. Lower the back edge of the carbon filter, until it clicks into place at the rear of the rectangular hole. Raise the two fixing bars, until they are horizontal over the carbon filter.

  • Page 14: Electrical Connection

    Electrical connection YOUR COOKER HOOD IS INTENDED FOR FITTED AND PERMANENT INSTALLATION. o The cooker hood’s power cable must be fitted upstream from the electrical connection, using an omni-polar switch with a contact distance of at least 3 mm. THE FUSE MUST BE RATED AT 3 AMPS.

  • Page 15: Before Beginning Installation

    Before beginning installation o Check that the product purchased is of a suitable size for the chosen installation area. In addition check whether there is an electrical socket available that will be accessible once the hood is mounted. If the product is going to be used in extraction mode, then there should also be space to connect a ducting hose to the outside.

  • Page 16: Positioning

    Positioning Height of the appliance Total height of the kitchen Height of the worktop Distance between the hob and the hood 9 cm = Height of the hood canopy o To work out the height of the appliance, you need to use the following formula: X = A –...

  • Page 17: Installing Your Cooker Hood

    IMPORTANT: Although the minimum height of the appliance can be set at 690 mm. During the installation process you will need to move the lower chimney section upwards, to allow you to attach the main body of the hood to the framework. To achieve this you will require a vertical gap of no less than 1000 mm.

  • Page 18: Supplied Installation Components

    Supplied installation components 1) Position the hanging plate on the ceiling and then mark the position of the screw holes. o The hanging plate should be securely fixed to the ceiling, using the 12 x ST6 (40 mm) screws. o Depending on the surface of the ceiling that you are fixing the hanging plate to, you may need to use 8 x expansion bolts (for concrete).
  • Page 19 2) Fix the angle bars to the hanging plate, using the 8 x M4 nuts and bolts with metal washers. 3) Extend the angle bars to the required height and then fix them in position using the 16 x M4 nuts and bolts with metal washers.
  • Page 20 5) If you are going to be using the hood in extraction mode, you should fit the spigot for the duct hose onto the main body of the cooker hood, using the 4 x M4 bolts, 6) If the glass canopy has not been pre- assembled by the factory, then it should be fixed to the top of the main body of the cooker hood at this stage.

  • Page 21: Extraction Mode Or Recirculation Mode

    o Remove the hanging hook and then slide the lower chimney section downwards, until it rests against the main body of the cooker hood. o Use a stainless steel cleaner and polish on the stainless steel sections of the appliance. o If you are using the appliance in recirculation mode, then you should now fit the carbon filter.

  • Page 22: Troubleshooting

    Troubleshooting IMPORTANT: If your cooker hood appears not to be operating properly, before contacting the Customer Care Department, please refer to the checklist below. My cooker hood will not start. o Check that the hood is connected to the electricity supply o Check that the fan speed control is set correctly.
  • Page 23 IMPORTANT: If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply and then contact Customer Care on telephone number (0118) 933 6911. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. Please note that if an engineer is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge.

  • Page 24: Contact Details

    United Kingdom 6 Bennet Road, Reading, Berkshire RG2 0QX United Kingdom Sales Telephone (0118) 933 6900 Sales Fax (0118) 931 0035 Service Telephone (0118) 933 6911 Service Fax (0118) 986 9124 Spares Telephone (01235) 437244 Advice Line Telephone (0118) 933 6933...
