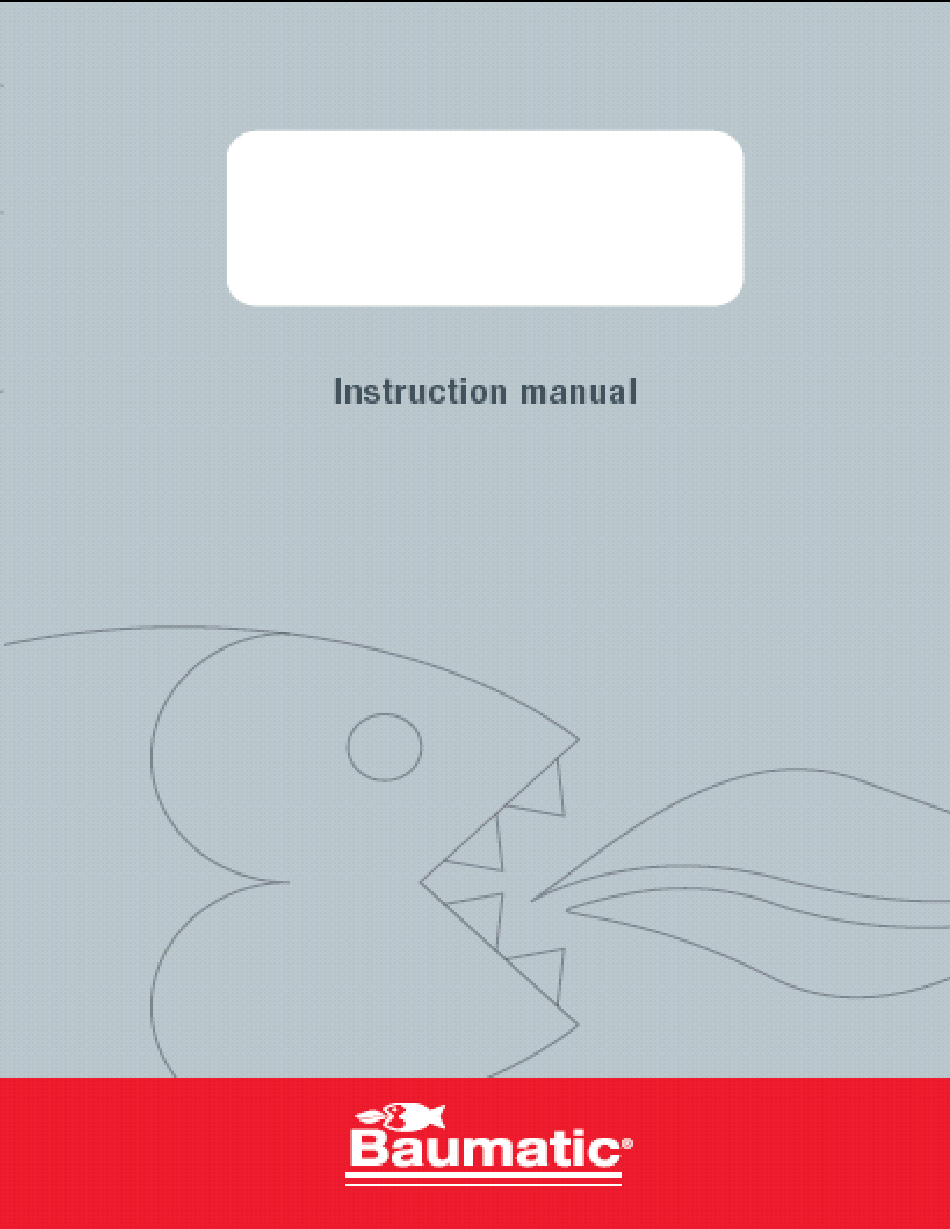

- Page 1 ISL92.1SS 90 cm Glass island hood...
- Page 2 User Manual for your Baumatic ISL92.1SS Cooker Hood 90 cm Island Chimney Hood in Stainless Steel NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference.
-
Page 3: Table Of Contents
CONTENTS YOUR COOKER HOOD’S SPECIFICATIONS ….……………..………….3 IMPORTANT SAFETY INFORMATION……………………………….…4-5 CARING FOR THE ENVIRONMENT…………………………………………6 USING YOUR COOKER HOOD………………………………..……………..7 MAINTAINING AND CLEANING YOUR COOKER HOOD ……….8-10 INSTALLATION INSTRUCTIONS ……………………….……...….11-19 CARBON FILTER …………..11 ELECTRICAL CONNECTION……………12 INSTALLING THE COOKER HOOD….….13-15 INSTALLING THE PIPE…………..16-17 INSTALLATION NOTES – EXTRACTION / PURIFYING VERSION .….18 NOTE ON INSTALLING THE VERSION WITH LOWER BRACKET..……19 TROUBLESHOOTING ……………………………………………20 CONDITIONS OF GUARANTEE……………………………………………21... -
Page 4: Your Cooker Hood's Specifications
Specifications of your ISL92.1GL Cooker Hood Congratulations on purchasing a Baumatic Cooker Hood! To fully enjoy using your appliance long into the future, please firstly familiarise yourself with its specifications, safety advice and operational instructions included in this manual. You will also need this manual to ensure that your Cooker Hood has been installed properly. -
Page 5: Important Safety Information
Important Safety Information: Please Read this before installing & using. Any installation work must be carried out by a qualified electrician or competent person. DO NOT SET YOUR * NOTE - COOKER HOOD LESS THAN The hood must be installed in 700mm ABOVE YOUR COOKER! accordance with the installation o When installed between... - Page 6 Important Safety Information: Please Read this before installing & using. o Ensure the ducting for ventilation measures are the extractor function being observed. Note has the same diameter as that it removes odours the outlet hole all the from your room, not way through.
-
Page 7: Caring For The Environment
Environmental Note Note : Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. CONFORMITY TO W.E.E.E. -
Page 8: Using Your Cooker Hood
Using your Baumatic Cooker Hood: To use your cooker hood: Make sure it has been properly installed. Find the CONTROL PANEL. It is located centrally at the front of the canopy. The CONTROL PANEL contains keys as shown in the Figure below. -
Page 9: Maintaining And Cleaning Your Cooker Hood
Using your Baumatic Cooker Hood: SPECIAL FUNCTIONS Your Baumatic Cooker Hood also has advanced features. These are: the display – meaning that Reminder to clean the your cooker hood is using Metal Grease Filters carbon filters. If it has none After every 30 hours of use, your fitted, the ‘-’... - Page 10 Cleaning your Baumatic Cooker Hood: Before cleaning, always ensure that you IMPORTANT!: have switched your cooker hood OFF at the omni-polar switch, set at the wall from the cable: Cleaning Clean the external parts with Be sure to replace the...
- Page 11 Maintenance - Cleaning the Anti-grease Filters First remove the grille by pulling down on it. Undo the side catches. You can now clean the anti-grease filter grilles. Soak them for about one hour in hot water with a grease-loosening detergent then rinse off thoroughly with hot water.
-
Page 12: Installation Instructions
Maintenance – Changing the Light Bulb and Carbon Filter Changing the light bulb Before changing the light bulb, ensure that the appliance is not live (i.e., ensure that you have switched it off so that it’s in the ‘0’ position). Remove the metal anti-grease filters (see Figure 2 below) and find the old bulb located in the light fixture up inside the exposed canopy. - Page 13 Installing / Changing the Carbon Filter ______________________________________________________________________________________ Installing / Changing the Carbon Filter. Your Baumatic Cooker Hood uses CARBON FILTERS to purify the air for the air recirculation function. You will find two filters that will attach to both sides of the fan motor (please see figures at bottom of page).
-
Page 14: Electrical Connection
INSTALLATION INSTRUCTIONS – Electrical Connection. INSTALLATION INSTRUCTIONS - Electrical Before installation and usage, read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the identification plate (found inside your Cooker Hood) and all the data inside the appliance are exactly the same as the voltage and frequency in your home. - Page 15 We recommend that at least CRUCIAL DIFFERENCES IN THESE. two people install this hood. NOTE: Your Baumatic Cooker Hood should only be fitted from a ceiling. Do NOT position it any less than 700 mm (70 cm) above the hob.
- Page 16 INSTALLATION INSTRUCTIONS – Installing your Cooker Hood 5) Attach exit connector ‘D’ to the hood using the 2 provided screws. 6) Connect to the room exhaust vent (Fig. 2). 7) Attach 2 of the 4 supporting angles ‘E’ to the motor housing ‘S’ with 2 screws each;...
-
Page 17: Installing The Pipe
INSTALLATION INSTRUCTIONS – Installing your Cooker Hood 12) Then, insert casing ‘I’ over casing ‘H’ (Fig. 4). 13) Lift the entire unit, keeping it slightly back from plate ‘A’ attached to the ceiling (see Fig. 5 & 5.1) 14) Then push it forward, supporting it so that the vents E1 and E2 of the 4 supporting angles ‘E’... - Page 18 INSTALLATION INSTRUCTIONS – Installing your Cooker Hood 15) Now attach the motor frame using 8 screws (see Fig. 6 and 6.1). Carry out the electrical and (if using as an extractor fan) air exhaust tube connection. Connect the ventilation hose and power lines.
-
Page 19: Installation Notes - Extraction / Purifying Version
INSTALLATION INSTRUCTIONS – Installing your Cooker Hood 20) Now fix the glass, screwing the 4 knobs ‘Q’ by hand. 21) Lift the casing ‘H’ up to the ceiling, so that the upper, lateral holes of the casing correspond with those of the plate. 22) Then fix them using the 4 screws provided (Fig. -
Page 20: Note On Installing The Version With Lower Bracket
Extraction / Air Purifier Modes of Operation EXTRACTION OPERATION – Installation Instructions Ensure that you have fitted the union (‘N’) to the upper part of the hood using the packaged two screws supplied inside the packing (Fig. 1 – on right). Using a 125 mm diameter pipe, connect the union (N) on the upper part of the hood (see Fig. -
Page 21: Troubleshooting
Troubleshooting If something has gone wrong with your Cooker Hood, checking against this chart might keep you from having to call for service. Symptom Solution • Check that the hood is connected to the electricity supply. The cooker hood will not start! •... -
Page 22: Conditions Of Guarantee
Baumatic appliance. * In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect that arises due to faulty materials or workmanship within a period of 5 years from the original purchase date. -
Page 23: Contact Details
+44 118 931 0035 Service Telephone +44 118 933 6911 Service Fax +44 118 986 9124 Spares Telephone +44 118 933 6922 Technical / Advice Telephone +44 118 933 6933 E-mail: sales@baumatic.co.uk technical@baumatic.co.uk Http (Internet site): www.baumatic.com Baumatic UK/cod. 1230000666...
