- Page 1 TON6.1SS Cooker Hood...

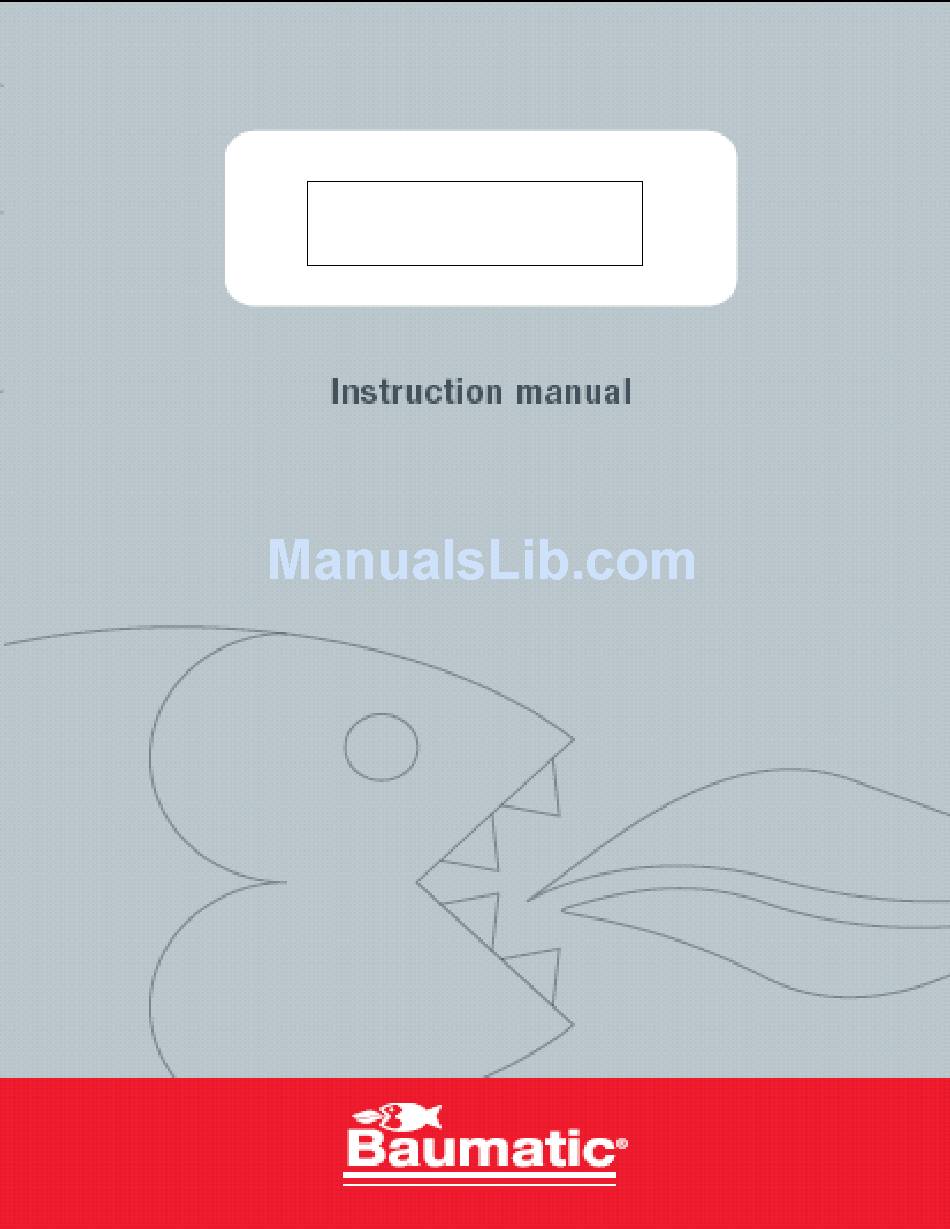

- Page 2 User Manual for your Baumatic TON6.1SS Cooker Hood 60 cm Chimney Hood in Stainless Steel NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference.
-
Page 3: Table Of Contents
YOUR COOKER HOOD’S SPECIFICATIONS ….……………..………….3 IMPORTANT SAFETY INFORMATION……………………………….…4-5 CARING FOR THE ENVIRONMENT…………………………………………6 USING YOUR COOKER HOOD………………………………..……………..7 MAINTAINING AND CLEANING YOUR COOKER HOOD ……….8-10 INSTALLATION INSTRUCTIONS ……………………….……...….11-18 INSTALLING THE COOKER HOOD….………13-14 INSTALLATION NOTES – EXTRACTION / PURIFYING VERSION .….17 NOTE ON INSTALLING THE VERSION WITH LOWER BRACKET..……18 TROUBLESHOOTING ……………………………………………19 CONDITIONS OF GUARANTEE……………………………………………20 CONTACT DETAILS…………………………………………………………..21... -
Page 4: Your Cooker Hood's Specifications
Specifications of your TON6.1SS Cooker Hood Congratulations on purchasing a Baumatic Cooker Hood! To fully enjoy using your appliance long into the future, please firstly familiarise yourself with its specifications, safety advice and operational instructions included in this manual. You will also need this manual to ensure that your Cooker Hood has been installed properly. -
Page 5: Important Safety Information
Important Safety Information: Any installation work must be carried out by a qualified electrician or competent person. The hood must be installed in accordance with the installation instructions and all measurements followed. If the cooker hood is installed for use above a gas appliance then the provision for ventilation must be in accordance with the Gas Safety Codes of Practice BS.6172,... -
Page 6: Important Safety Information
Important Safety Information: o Ensure the ducting for the extractor function has the same diameter as the outlet hole all the way through. Keep young children from using, playing with or tampering with the cooker hood. Older children and infirm persons should be supervised if they are using the cooker hood. -
Page 7: Environmental Note
Environmental Note Note : Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. CONFORMITY TO W.E.E.E. -
Page 8: Using Your Baumatic Cooker Hood
Using your Baumatic Cooker Hood: To use your cooker hood: Make sure it has been properly installed. Find the CONTROL PANEL. It is located at the bottom of the hood on the underside, at the front of the canopy. You have a Pushbutton control panel that will look like either one of those pictured below. -
Page 9: Maintaining And Cleaning Your Cooker Hood
Cleaning your Baumatic Cooker Hood: Before cleaning, always ensure that you IMPORTANT!: have switched your cooker hood OFF at the omni-polar switch, set at the wall from the cable: Cleaning Clean the external parts with mild liquid detergents on a damp cloth. - Page 10 Maintenance - Cleaning the Anti-grease Filters First remove the grille by pulling down on it. Undo the side catches. You can now clean the anti-grease filter grilles. Soak them for about one hour in hot water with a grease-loosening detergent then rinse off thoroughly with hot water.
-
Page 11: Maintenance – Changing The Light Bulb And Carbon Filter
Maintenance – Changing the Light Bulb and Carbon Filter Changing the light bulb Before changing the light bulb, ensure that the appliance is not live (i.e., ensure that you have switched it off so that it’s in the ‘0’ position). Remove the metal anti-grease filters (see Figure 2 below) and find the old bulbs located in the light fixture up inside the exposed canopy. -
Page 12: Installation Instructions
Installing / Changing the Carbon Filter ______________________________________________________________________________________ Installing / Changing the Carbon Filter. Your Baumatic Cooker Hood uses CARBON FILTERS to purify the air for the air recirculation function. You will find two filters that will attach to both sides of the fan motor (please see figures at bottom of page). -
Page 13: Electrical Connection
INSTALLATION INSTRUCTIONS – Electrical Connection. INSTALLATION INSTRUCTIONS - Electrical Before installation and usage, read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the identification plate (found inside your Cooker Hood) and all the data inside the appliance are exactly the same as the voltage and frequency in your home. -
Page 14: Installation Instructions
SEE PAGE 17 NOW TO UNDERSTAND CRUCIAL DIFFERENCES IN THESE. NOTE: Your Baumatic Cooker Hood should only be fitted on a wall. Do NOT position it any less than 700 mm (70 cm) above the hob. 1) Remove the metal anti-grease filters (See figure at right). -
Page 15: Installation Instructions – Attaching The Hood
INSTALLATION INSTRUCTIONS – Attaching the Hood -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 4) Insert the expansion fixings (rawlplugs) in the holes and then screw the support screws halfway in (see below figure, at right). 5) Hook the hood onto the screws (see above figure, at left) and fasten it onto the wall, tightening the support and anchoring screws the rest of the way in. -
Page 16: Installation Instructions – Fitting The Pipe
INSTALLATION INSTRUCTIONS FITTING THE PIPE – been installed, you can now fit the pipe. 1) Take the two casings ‘A’ and ‘B’: 2) Rest the bottom of the casing ‘A’ on the top of the hood. 3) Raise casing ‘B’ of the chimney up to the ceiling. - Page 17 INSTALLATION INSTRUCTIONS 7) Insert the expansion fixings (rawlplugs) provided, put support bracket ‘G’ (see Fig. 5 on previous page) in position and secure it with the screws provided. 8) Lift casing ‘B’ up to the ceiling and secure it to the bracket ‘G’, inserting the screws provided in the side holes of the support bracket and then tightening them.
-
Page 18: Installation Notes - Extraction / Purifying Version
Extraction / Air Purifier Modes of Operation EXTRACTION OPERATION – Installation Instructions Ensure that you have fitted the union (‘N’) to the upper part of the hood using the packaged two screws supplied inside the packing (Fig. 1 – on right). Using a 125 mm diameter pipe, connect the union (N) on the upper part of the hood (see Fig. -
Page 19: If Your Cooker Hood Comes With A Lower Bracket
(inset), the bracketed connecting area of the hood (‘N’). Hook or attach the hood to the bracket using the screws supplied and carefully check that it has been done properly. A few hoods may be supplied with specific screws for vertical or horizontal adjustment. -
Page 20: Troubleshooting
If something has gone wrong with your Cooker Hood, checking against this chart might keep you from having to call for service. Symptom The cooker hood will not start! The cooker hood is not working effectively! The cooker hood has switched off during operation! Troubleshooting •... -
Page 21: Conditions Of Guarantee
In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect that arises due to faulty materials or workmanship within a period of 5 years from the original purchase date. -
Page 22: Contact Details
Baumatic Ltd Baumatic UK/cod. 1230000666 Make-up for your kitchen Headquarters Baumatic Ltd. Baumatic Buildings, 6 Bennet Road, Reading, Berkshire RG2 0QX, United Kingdom Sales Telephone +44 118 933 6900 Sales Fax +44 118 931 0035 Service Telephone +44 118 933 6911...
