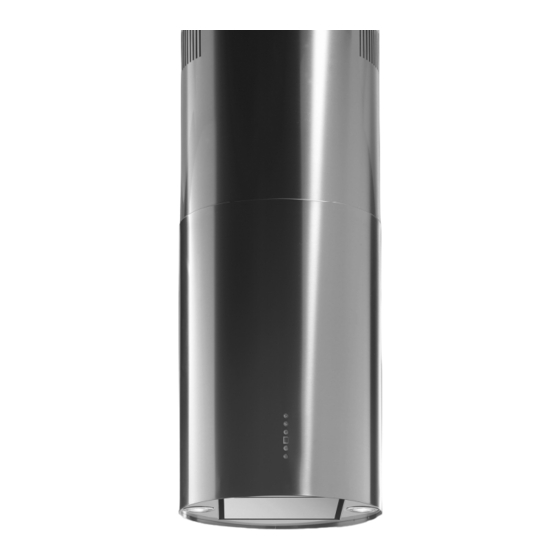

- Page 1 ISL4SS 40 cm Island hood...
-
Page 2: Island Hood
User Manual for your Baumatic ISL4SS 40 cm Island hood NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance. -
Page 3: Table Of Contents
Contents Page Environmental note IMPORTANT SAFETY INFORMATION Specifications of your cooker hood Using your Baumatic cooker hood The control panel Setting intensive or normal mode Switching on your cooker hood The timer button The light bulbs Grease filter maintenance reminder... -
Page 4: Environmental Note
Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the... -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Technical Department. - Page 6 you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTER! o If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.
- Page 7 removing air from your room. Ensure that proper ventilation measures are being observed. o Note that the cooker hood removes odours from your room, not steam. o Warning - Always ensure that the cooker hood has been disconnected from the power supply before carrying out any work on the hood, including cleaning and replacing light bulbs.
-
Page 8: Specifications Of Your Cooker Hood
Service warning indicator o 1 Metallic grease filter o 2 Halogen lights Extraction capacity: Optional extras: (Both optional extras are available from the Baumatic Spares Department). 400 mm 750 m³/hr 1 x C1 Carbon filter for air recirculation mode... -
Page 9: Using Your Baumatic Cooker Hood
Using your Baumatic cooker hood The control panel o Before using the cooker hood make sure that it has been installed by a suitably qualified person, as per the information contained in Baumatic’s installation instructions. o Find the control panel, which is located at the front of the cooker hood. -
Page 10: Setting Intensive Or Normal Mode
HOOD TEN MINUTES BEFORE YOU START TO COOK, OR AT THE VERY LEAST WHEN YOU BEGIN COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR TEN MINUTES AFTER YOU HAVE FINISHED COOKING. Setting intensive or normal mode o You can set your cooker hood to run in normal or intensive mode. -
Page 11: The Timer Button
o If you press the timer button whilst the cooker hood is in operation, then it will countdown for 15 minutes. o During the countdown the number on the LCD display will flash. o It is possible to adjust the speed that the cooker hood is operating at whilst it is on a countdown. -
Page 12: Carbon Filter Replacement Reminder
o If your cooker hood is operating in recirculation mode, then a carbon filter will need to be fitted. o After approximately 120 hours of operation, a “C” will flash on the LED display when you switch the cooker hood on. o You should follow the “Fitting the carbon filters”... -
Page 13: Cleaning Your Baumatic Cooker Hood
Cleaning your Baumatic cooker hood IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT YOU HAVE SWITCHED YOUR COOKER HOOD OFF AT THE OMNI-POLAR SWITCH, SET AT THE WALL FROM THE MAINS CABLE. Cleaning o Clean the external parts of your cooker hood with mild liquid detergent and a new damp cloth. -
Page 14: Maintenance
Maintenance Removing and cleaning the grease filter IMPORTANT: BEFORE ATTEMPTING TO CLEAN THE GREASE FILTER, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY. o Soak the grease filter in hot water and washing up liquid for about an hour. -
Page 15: Changing A Light Bulb
IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY. o Prior to touching the light bulbs ensure they are cooled down. o Find the bulb that requires replacement, you will find it located in the light fixture which is on the underneath of the cooker hood. -
Page 16: Fitting The Carbon Filters
If the appliance is going to be used in recirculation mode then it is necessary to fit a carbon filter. This will help to absorb unpleasant odours caused by cooking. IMPORTANT: BEFORE ATTEMPTING TO FIT OR REMOVE THE CARBON FILTER, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY. -
Page 17: Installation
5) Squeeze the clips on one side of the carbon filter, until it clicks firmly into place. o To remove the carbon filter in future, you will need to press the clips and then pull the carbon filter downwards away from the rectangular opening. -
Page 18: Electrical Connection
YOUR COOKER HOOD IS INTENDED FOR FITTED AND PERMANENT INSTALLATION. o If not supplied the power cable must be connected to the terminals marked L (live) and N (neutral) in the hood and fixed with a cable clamp. o The cooker hood’s power cable must be fitted upstream from the electrical connection, using an omni-polar switch with a contact distance of at least 3 mm. -
Page 19: Before Beginning Installation
o Check that the product purchased is of a suitable size for the chosen installation area. In addition check whether there is an electrical socket available that will be accessible once the hood is mounted. If the product is going to be used in extraction mode, then there should also be space to connect a ducting hose to the outside. -
Page 20: Installing Your Cooker Hood
IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR COOKER HOOD WHETHER TO USE IT IN EXTRACTION MODE OR RECIRCULATION MODE. PLEASE TURN TO PAGE 28 NOW TO UNDERSTAND THE DIFFERENCES BETWEEN THESE TWO MODES. o The cooker hood should not be exposed to a direct heat source from the cooking device underneath it, i.e. - Page 21 Please note that in future diagrams the securing plate will be shown w squared ends, however the one supplied with the ISL4SS is as shown in this diagram. IMPORTANT- THE SECURING PLATE MUST BE INSTALLED THIS WAY UP WHEN BEING PLACED AGAINST THE CEILING.
- Page 22 3a) IMPORTANT: The securing plate will only secure to the frame in one position (see diagram 3a). You should position the securing plate on the ceiling so that when the frame (and eventually the cooker hood) are fixed to it, the control panel will face the direction that you require.
- Page 23 5) Take the 4 corner pieces and using a screwdriver; securely tighten one corner piece to each corner of the cooker hood’s motor. 6) Take the 4 frame sections and then screw through them into the bracket which connects them together. The bracket should be fixed approximately halfway down the frame sections, although some minor adjustment may be required depending on your specific installation needs.
- Page 24 on each frame section; otherwise the bracket will not be level. o IMPORTANT: Please take care to make sure that the clip on each frame section faces the direction shown in the diagram below. They must face outwards to be able to locate over the cut outs in the securing plate, later in the installation.
- Page 25 IMPORTANT: From this step onwards, the hood must be fully supported from underneath UNTIL step 9 has been completed and the cooker hood is fully secured to the framework. 8) Lift the cooker hood fully upwards to the inside of the securing plate and then slide it over.
- Page 26 9) With a screwdriver, fasten the frame to the securing plate on each corner. You must make sure that these screws are tightened fully. 10) Raise the upper chimney section upwards towards the securing plate. With a screwdriver, fasten the upper chimney section to the end of the triangular section on either side of the securing plate.
-
Page 27: Connecting To External Ducting
It should have a cross section of at least 150 cm² (please note that the ducting hose is not supplied with the appliance but is available from the Baumatic Spares Department). o The maximum distance between the coupling and your discharge outlet should be 3 metres, with one 90 degree bend. -
Page 28: Completing The Installation
Do I need a charcoal filter? All cooker hoods have a grease filter but if you are using your cooker hood in recirculation mode, then a charcoal filter must be fitted in addition to the grease filter. -
Page 29: Troubleshooting
Troubleshooting IMPORTANT: If your cooker hood appears not to be operating properly, before contacting the Baumatic Service Department, please refer to the checklist below. My cooker hood will not start. o Check that the hood is connected to the power supply and whether you have selected any of the fan speeds. -
Page 30: Baumatic Ltd. Conditions Of Guarantee
Baumatic appliance. * In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect that arises due to faulty materials or workmanship within a period of 5 years from the original purchase date. -
Page 31: Contact Details
Headquarters Baumatic Ltd. Baumatic Buildings, 6 Bennet Road, Reading, Berkshire RG2 0QX, United Kingdom Sales Telephone +44 118 933 6900 Sales Fax +44 118 931 0035 Service Telephone +44 118 933 6911 Service Fax +44 118 986 9124 Spares Telephone... - Page 32 32 32...
