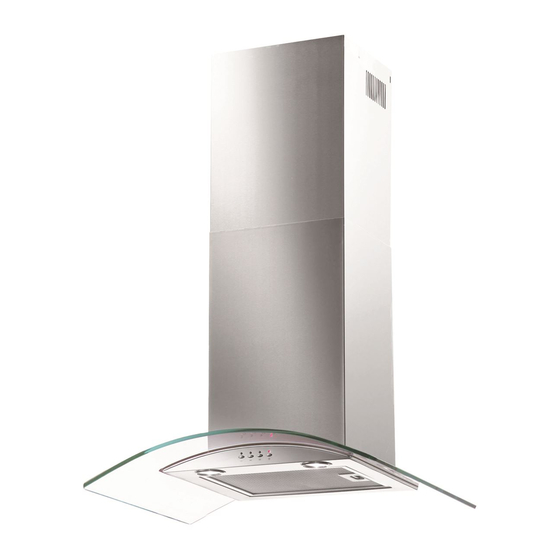

70 cm chimney hood in stainless steel
Hide thumbs Also See for BT7.3GL:
Table of Contents

Advertisement

Quick Links

BT7.3GL
Cooker Hood

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT7.3GL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baumatic BT7.3GL

Summary of Contents for Baumatic BT7.3GL

  • Page 1 BT7.3GL Cooker Hood...
  • Page 2 User Manual for your Baumatic BT7.3GL Cooker Hood 70 cm Chimney Hood in Stainless Steel NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it...

  • Page 3: Table Of Contents

    CONTENTS YOUR COOKER HOOD’S SPECIFICATIONS ….……………..………….3 IMPORTANT SAFETY INFORMATION……………………………….…4-5 CARING FOR THE ENVIRONMENT…………………………………………6 USING YOUR COOKER HOOD………………………………..……………..7 MAINTAINING AND CLEANING YOUR COOKER HOOD ……….8-10 INSTALLATION INSTRUCTIONS ……………………….……...….12-19 ELECTRICAL CONNECTION……………12 INSTALLING THE COOKER HOOD………13-15 FITTING THE CHIMNEY…………………16-17 ATTACHING THE GLASS…..18 INSTALLATION NOTES – EXTRACTION / PURIFYING VERSION .….19 NOTE ON INSTALLING THE VERSION WITH LOWER BRACKET..……20 TROUBLESHOOTING ……………………………………………21 CONDITIONS OF GUARANTEE……………………………………………22...
  • Page 4 Specifications of your BT7.3GL Cooker Hood Congratulations on purchasing a Baumatic Cooker Hood! To fully enjoy using your appliance long into the future, please firstly familiarise yourself with its specifications, safety advice and operational instructions included in this manual. You will also need this manual to ensure that your Cooker Hood has been installed properly.

  • Page 5: Important Safety Information

    Important Safety Information: Please Read this before installing & using. Any installation work must be DO NOT SET YOUR * NOTE - carried out by a qualified COOKER HOOD LESS THAN electrician or competent person. 700mm ABOVE YOUR COOKER! o When installed between The hood must be installed in adjoining wall cabinets, accordance with the installation...

  • Page 6: Important Safety Information

    Important Safety Information: Please Read this before installing & using. o Ensure the ducting for ventilation measures are the extractor function being observed. Note has the same diameter as that it removes odours the outlet hole all the from your room, not way through.

  • Page 7: Environmental Note

    Environmental Note Note : Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. CONFORMITY TO W.E.E.E.

  • Page 8: Using Your Baumatic Cooker Hood

    = mid speed, = high speed. ‘U’ – Light ‘on/off’ button-This button controls the light PLEASE NOTE THAT YOUR BAUMATIC COOKER HOOD CAN BE USED EITHER IN RECIRCULATION MODE OR IN EXTRACTION MODE. TO USE THE HOOD IN RECIRCULATION MODE, YOU WILL...

  • Page 9: Cleaning Your Baumatic Cooker Hood

    Cleaning your Baumatic Cooker Hood: Before cleaning, always ensure that you have IMPORTANT: switched your cooker hood OFF at the omni-polar switch, set at the wall from the cable: Cleaning Clean the external parts with Be sure to replace the...
  • Page 10 Maintenance - Cleaning the Anti-grease Filters First remove the grille by pulling down on it. Undo the side catches. You can now clean the anti-grease filter grilles. Soak them for about one hour in hot water with a grease-loosening detergent then rinse off thoroughly with hot water.

  • Page 11: Maintenance – Changing The Light Bulb And Carbon Filter

    Maintenance – Changing the Light Bulb and Carbon Filter Changing the light bulb Before changing the light bulb, ensure that the appliance is not live (i.e., ensure that y ou have switched it off at the wall switch). Remove the metal anti-grease filters (see Figure 2 below) and find the old bulb locate d in the light fixture up inside the exposed canopy.

  • Page 12: Installing / Changing The Carbon Filter

    Installing / Changing the Carbon Filter Installing / Changing the Carbon Filter. Your Baumatic Cooker Hood uses a pair of CARBON FILTERS to purify the air for the air recirculation function. You will find that the filters will attach to both sides of the fan motor (please see figures at bottom of page).
  • Page 13 INSTALLATION INSTRUCTIONS – Electrical Connection. Before installation and usage, read all the instructions and make sure that voltag e (V) and the frequency (H z) indicated on the identification plate (found inside your Cooker Hood) and all the data inside the appliance are exactly the same as the voltage and frequency in your home.

  • Page 14: Installation Instructions

    SEE PAGE 18 NOW TO UNDERSTAND two people install this ho CRUCIAL DIFFERENCES IN THESE. NOTE: Your Baumatic Cooker Hood shou ld only be fitted on a wall. Do NOT posi tion it any less than 700 mm (70 cm) above the hob.
  • Page 15 INSTALLATION INSTRUCTIONS – Attaching the Hood Rear view of your cooker hood. -------------------------------------------------------------------------- 3) Using a drill bit with a 6 mm diameter, make holes in the wall where you have marked these positions (see below). -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 4) Insert the expansion fixings (rawlplugs) in the holes and then screw the support screws halfway in (see below figure, at right).

  • Page 16: Installation Instructions – Attaching The Hood

    INSTALLATION INSTRUCTIONS – Attaching the Hood -------------------------------------------------------------------------- ----------------- ------------------------------------------------------------------------------------------- 6) (EXTRACTION FUNCTION ONLY) Connect the coupling to the top of the cooker hood (see below). Then connect the discharge pipe to the coupling as shown below. Remember that your ducting will have to match the specifications shown in the notes on Extraction / Air Purifier (Recirculation) Modes on p.18.
  • Page 17 STALLATION INSTRUCTIONS – Fitting the Chimney FITTING THE PIPE – Once your Cooker Hood has been installed, you can now fit the pipe. 1) Take the two casings ‘A’ and ‘B’: 2) Rest the bottom of the casing ‘A’ on the top of the hood, taking care to position the tabs of the casing correctly on the back of the hood as shown as part ‘X’...

  • Page 18: Fitting The Chimney

    INSTALLATION INSTRUCTIONS – Fitting the Chimney 6) T ake the fixing bracket ‘G’ (Fig. 4 – previous page), centre it ith respect to the mark you previously made, keeping it in ontact with the ceiling, and then mark the anch oring holes (‘H’).

  • Page 19: Attaching The Glass

    ATTACHING THE GLASS Remove the metal grease filters from the hood Slac ken both anchoring screws “F” Place the glass ‘Q’ on the upper shelf of the hood, pushing it towards the wall. Tightening the screws ‘F’ again in the hole and connecting them to the unit.
  • Page 20 Extraction / Air Purifier Modes of Operation EXTRACTION OPERATION – Installation Instructions Ensure t hat you have fitted the union (‘N’) to the upper part of the hood usi ng the packaged two screws supplied inside the packing (Fig. – on right).

  • Page 21: If Your Cooker Hood Comes With A Lower Bracket

    If your Cooker Hood comes with a Lower Bracket * Note on what to do if your Cooker Hood is the version that comes with a BRACKET. Please note that your cooker hood may include a lower bracket. If this is the case, you will need to have it installed as such.

  • Page 22: Troubleshooting

    Troubleshooting If something has gone wrong with your Cooker Hood, checki against this chart might keep you from having to call for service. Symptom Solution • Check that the hood is connecte to the electri city supply. cooker hood will not start! •...

  • Page 23: Conditions Of Guarantee

    *In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect that arises due to faulty materials or workmanship within a period of 5 years from the original purchase date.
  • Page 24 +44 118 931 0035 Service Telephone +44 118 933 6911 Service Fax +44 118 986 9124 Spares Telephone +44 118 933 6922 Technical / Advice lephone +44 118 933 6 E-mail: sales@baumatic.co.uk technical@baumatic.co.uk Http (In ternet site): www.baumatic.com Baumatic UK/cod. 1230000666...
