Installing the Tower onto the Floor Stand

Full High
Range Pass
VIEWING CUP IN BOTTOM
OF SPEAKER TOWER
S 1
– When using the tower as a surround speaker,
TEP
set Toggle Switch in tower cup to "Full Range. " When using as
a front channel, set Toggle Switch in tower cup in bottom to
the "Full Range" position. Please consult the Prelude MTS
Subwoofer manual for exceptions to this setting.

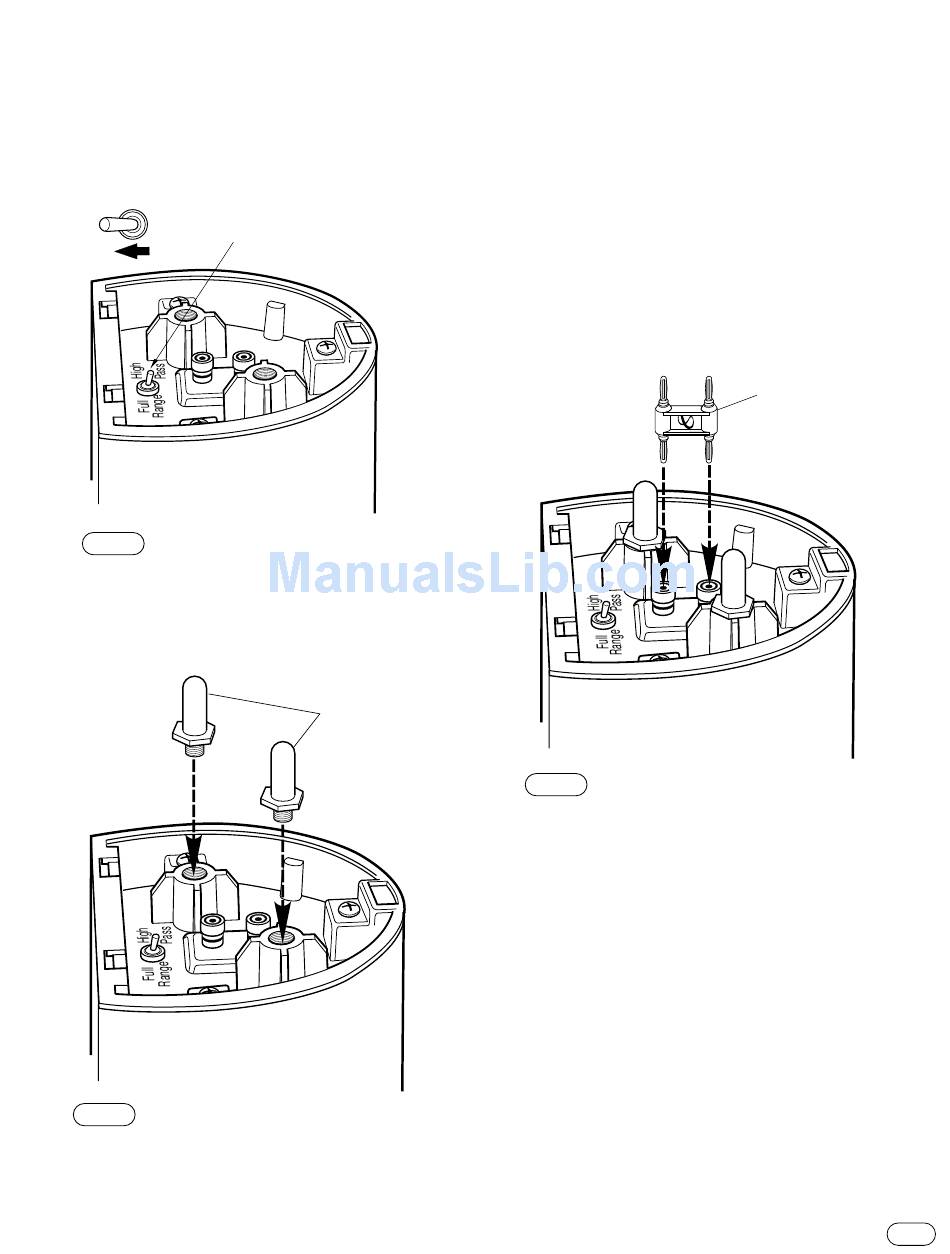

S 2 – Screw alignment pins into cup in bottom of tower.
TEP
Use two per tower. Screw threaded ends into holes and tighten
until snug. DO NOT overtighten.
TOGGLE SWITCH
ALIGNMENT PINS
( )
INCLUDED WITH
STAND
VIEWING CUP IN BOTTOM
OF SPEAKER TOWER
VIEWING CUP IN BOTTOM
OF SPEAKER TOWER
S 3
– Insert double-ended Audio Banana Plug into tower
TEP
as shown.
DOUBLE-ENDED
BANANA PLUG
( INCLUDED WITH )
STAND
PRELUDE MTS TOWER
