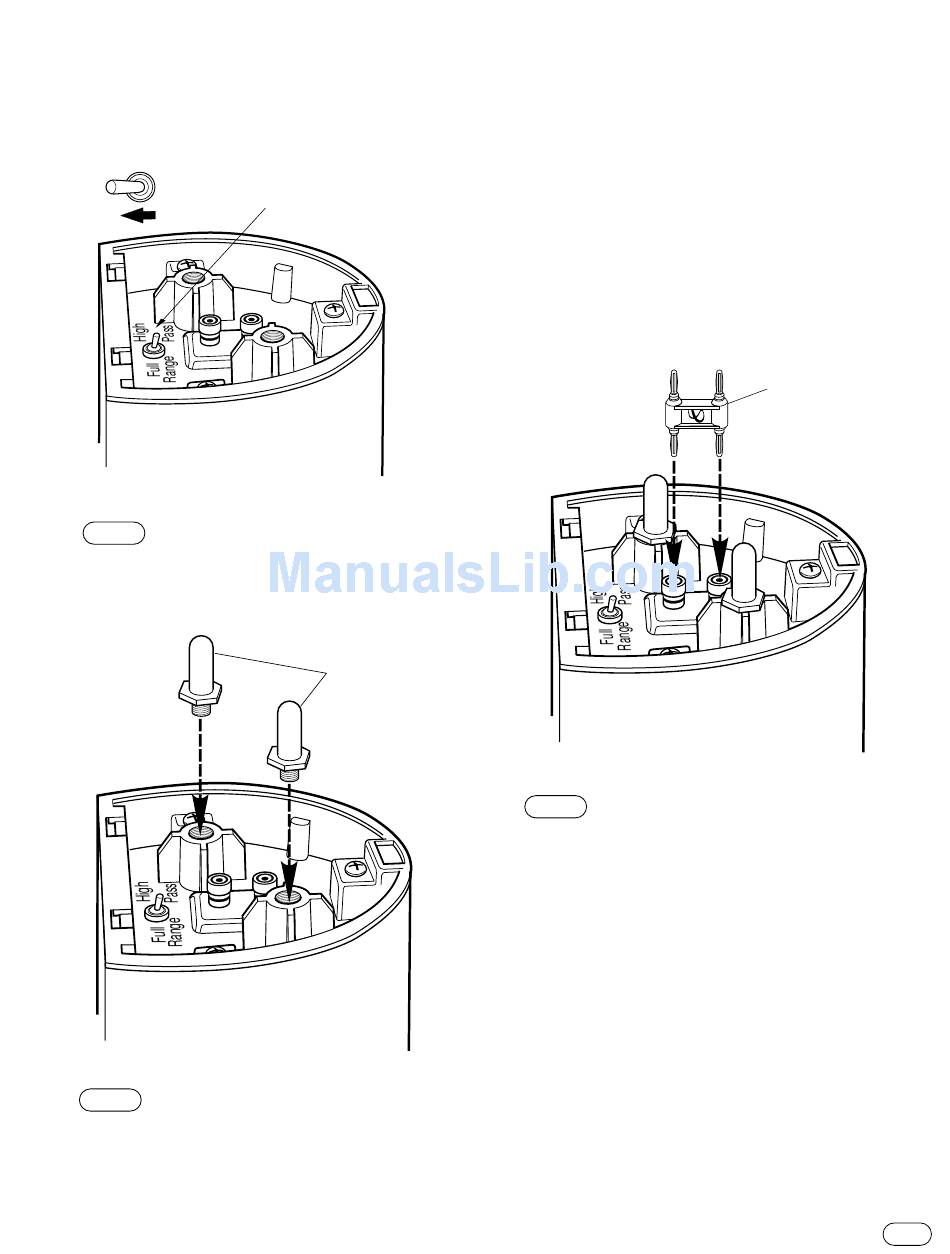

S 4 – Set Toggle Switch in tower cup in bottom to the
TEP
"Full Range" position. Please consult the Prelude MTS Subwoofer
manual for exceptions to this setting.
S 5
– Screw alignment pins into cup in bottom of tower,
TEP
using two per tower. Screw threaded ends into holes and tighten
until snug. DO NOT overtighten.
TOGGLE SWITCH
ALIGNMENT PINS
( )
INCLUDED WITH
SUBWOOFER
VIEWING CUP IN BOTTOM
OF SPEAKER TOWER
VIEWING CUP IN BOTTOM
OF SPEAKER TOWER
S 6
– Insert double-ended Audio Banana Plug into tower
TEP
as shown.
DOUBLE-ENDED
BANANA PLUG
( INCLUDED WITH )
SUBWOOFER
