Infinity Primus P252 Troubleshooting/Repair Tips

Most customers prefer to do simple loudspeaker repairs themselves. By following the steps below, a majority of loudspeakers can be returned to
their original factory performance with minimum effort. Choose the example that best describes the problem you are experiencing.
Problem 1: No sound or distorted sound from one loudspeaker in a pair (or set)
Connect the dead/distorting loudspeaker to a different amplifier channel (one that had a functioning loudspeaker connected to it). If it functions
normally, the problem is not loudspeaker-related. If the loudspeaker still makes no sound or sounds distorted, a wire may have become loose
or disconnected, the network (also known as a crossover) may be defective, the drivers (woofer, tweeter, etc.) may be defective or, in very rare
cases, all may be defective.
Refer to the wiring diagram and exploded view below. The network is a small circuit board found on the inside of the terminal cup, or mounted to
an inside wall of the enclosure. It sends low-frequency sounds to the woofer, high-frequency sounds to the tweeter and, if applicable, mid-frequency
sounds to the midrange driver. Make sure all wires are secure and connected. Look for components on the network that look burnt, "bulged,"
or abnormal. If everything looks normal, connect the network to the drivers from another matching loudspeaker. MAKE SURE you attach the
correct wires to each driver – mid- and low-frequency sounds can damage the tweeter! If there is still no sound or distorted sound, the network
is defective. If there is clean undistorted sound, the drivers are defective.
Problem 2: No sound or distorted sound from one or more (but not all) drivers in an enclosure
Remove the problem driver(s) from the enclosure and make sure all wires are secure and connected. If they are, proceed with the following test:
Woofer or midrange driver – Connect the driver's + and – input terminals directly to the loudspeaker wires from your receiver/amplifier and play
some music at a reasonable volume. If the driver now sounds normal (produces a clean, undistorted sound), the network is most likely defective.
Tweeter – Replace the tweeter with a functioning tweeter from another loudspeaker. If the tweeter now functions normally (produces clean,
undistorted sound), the original tweeter is defective. If the replacement tweeter also sounds distorted or produces no sound, the network is
most likely defective.
Problem 3: Loudspeakers distort, rattle or pop at higher volumes
This is usually NOT a loudspeaker problem. Common causes are too much power (playing the loudspeakers too loud and causing them to distort),
an amplifier with not enough power (the amplifier can't produce the required volume without distorting), excessive equalization (turning the tone
controls too far clockwise, and/or engaging the loudness/bass boost button on your receiver) or some combination of the above. If only one
loudspeaker is exhibiting the problem, and you're confident that it's not caused by too little power/too much power/excessive equalization, see
solutions for Problems 1 and 2.

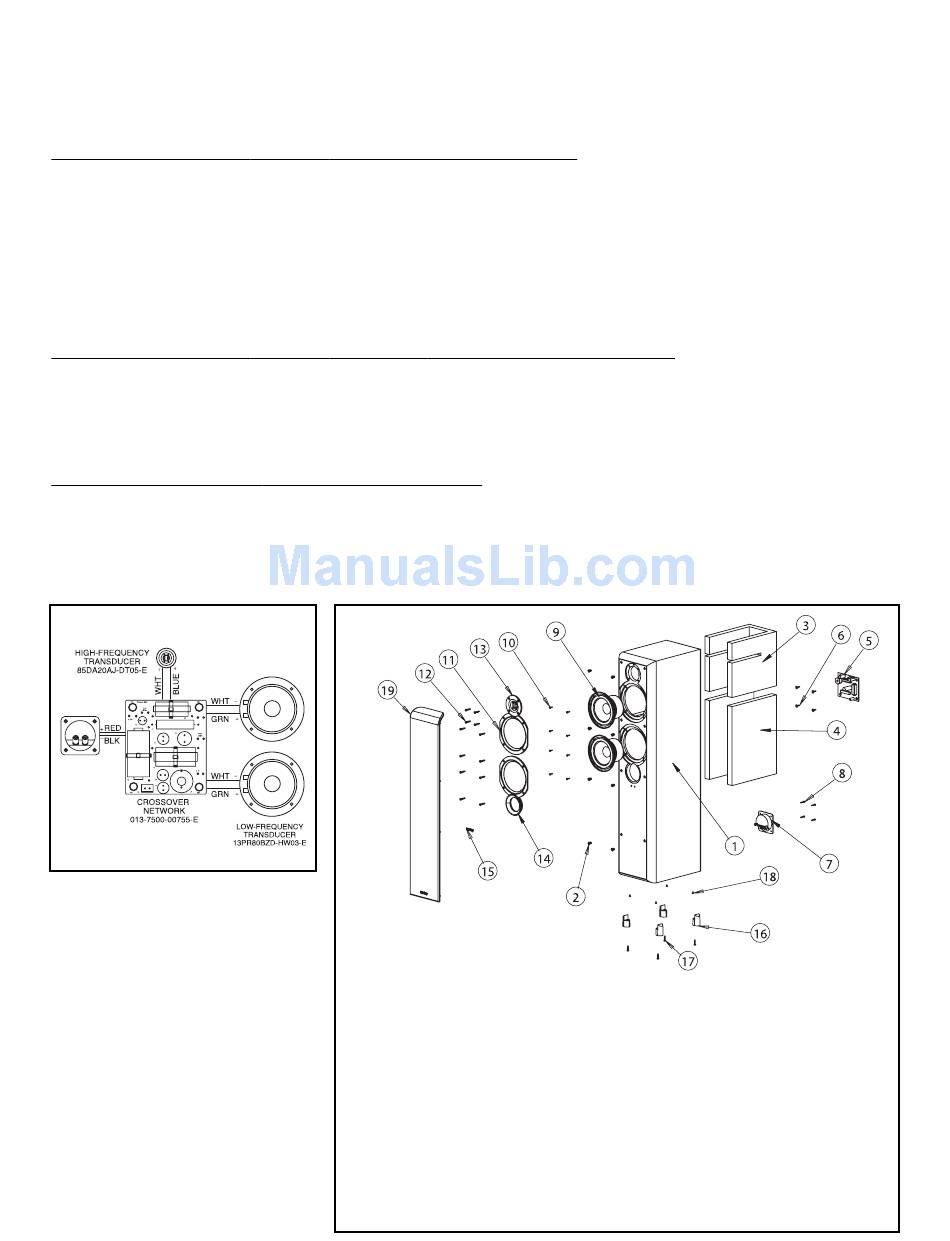

WIRING DIAGRAM

Note: A Phillips screwdriver and "Torx" bit
screwdriver T20 size are required to service
this product.
Primus P252
Infinity Loudspeaker Troubleshooting/Repair Tips
EXPLODED VIEW
ITEM
NO. DESCRIPTION
1. P252 CABINET BE/BK/CH
2. GRILLE CUP
3. ACOUSTIC DAMPING FILLER
4. ACOUSTIC DAMPING FILLER
5. CROSSOVER NETWORK
6. SCREW, CROSSOVER NETWORK
7. TERMINAL CUP
8. SCREW, TERMINAL CUP
9. 5-1/4" WOOFER
10 SCREW, WOOFER
11. 5-1/4" TRIM RING
12. SCREW, TWEETER AND TRIM RING 12 352-DM04525D597-E
13. TWEETER W/FACEPLATE
14. PORT TUBE
15. INFINITY LOGO
ITEM
QTY. PART NO. NO. DESCRIPTION
1 Not for Sale 16. PLASTIC FOOT
8 327-010-00624-E 17. SCREW, PLASTIC FOOT
1 Not for Sale 18. RUBBER PLUG
1 Not for Sale 19. FRONT GRILLE (SILVER)
1 013-7500-00755-E FRONT GRILLE (BLACK)
4 352-HM04018D497-E 20. FOOT CUSHION
1 317-ABS-00165-E 21. RUBBER FOOT
4 352-GM03520D850-E 22. OWNER'S MANUAL
2 13PR80BZD-HW03-E 23. WARRANTY CARD
8 352-FM04014D602-E 24. TOP STYROFOAM
2 213-050-00491-0VAE 25. BOTTOM STYROFOAM
26. P252 OUTER CARTON BE
1 85DA20AJ-DT05-E P252 OUTER CARTON BK
1 249HIPS-00164-0VAE P252 OUTER CARTON CH
1 316-ABS-05218-0VAE
QTY. PART NO.
4 320-ABS-00195-E
4 352-CM04020D202-E
4 338-RUB-05046-0BAE
1 244-050-05222-0VAE
1 244-050-05222-0BAE
4 320HIPS-05040-0VAE
4 320-RUB-00199-E
1 406-000-05514-E
1 405-000-00312-E
1 431-000-05940-E
1 431-000-05941-E
1 400-000-07218-E
1 400-000-07220-E
1 400-000-07219-E
