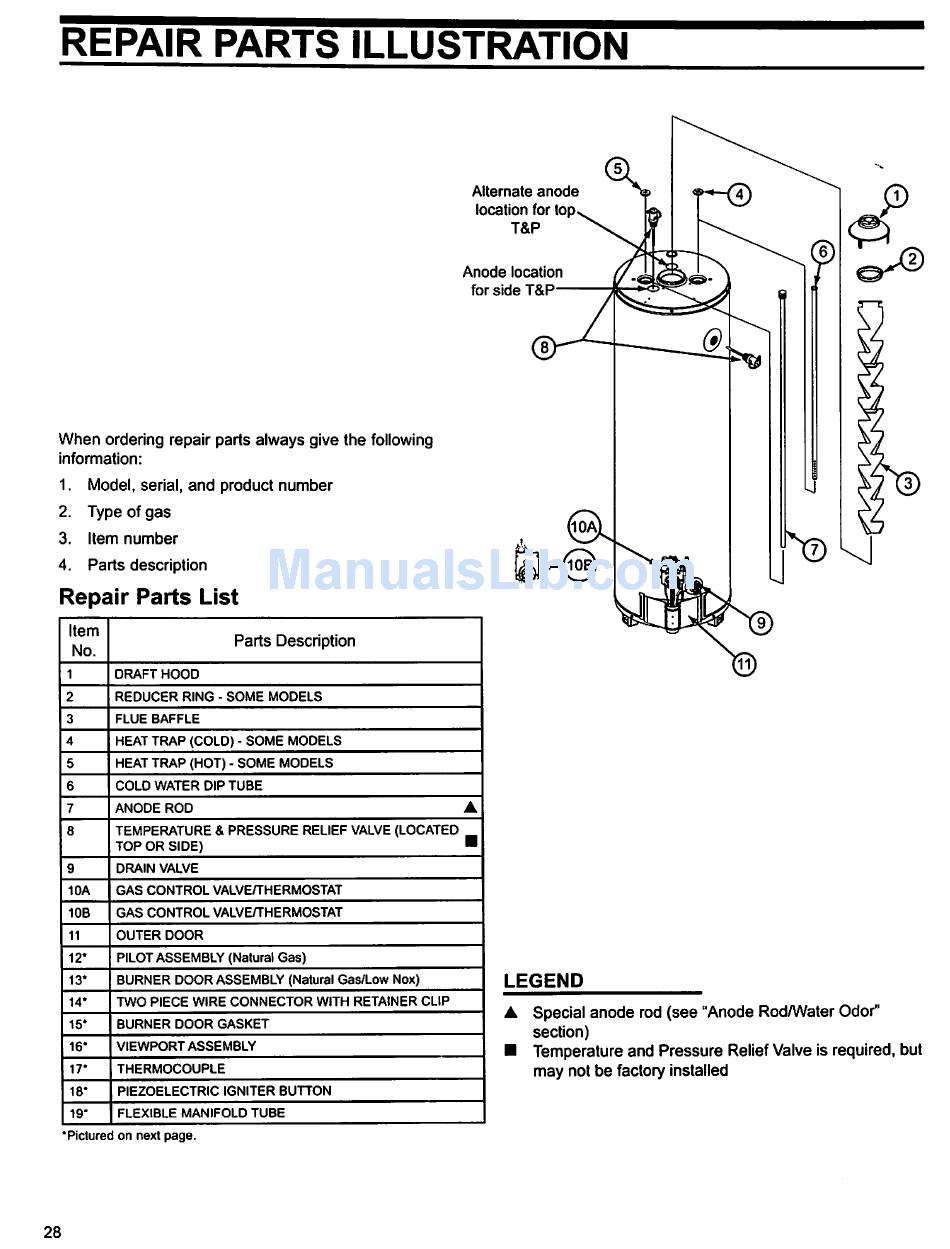

REPAIR PARTS ILLUSTRATION
Alternate anode
location for top
T&P
Anode location
for side T&P
When ordering repair parts always give the following
information:
1.
Model, serial, and product number
2.
Type of gas
3.
Item number
4.
Parts description
Repair Parts List
Item
No.
1
2
3
4
5
6
7
8
9
10A
10B
11
12*
13*
14*
15*
16"
17'
18*
19*
Parts Description
DRAFT HOOD
REDUCER RING - SOME MODELS
FLUE BAFFLE
HEAT TRAP (COLD) - SOME MODELS
HEAT TRAP (HOT) - SOME MODELS
COLD WATER DIP TUBE
ANODE ROD
A
TEMPERATURE & PRESSURE RELIEF VALVE (LOCATED
TOP OR SIDE)
■
DRAIN VALVE
GAS CONTROL VALVE/THERMOSTAT
GAS CONTROL VALVE/THERMOSTAT
OUTER DOOR
PILOT ASSEMBLY (Natural Gas)
BURNER DOOR ASSEMBLY (Natural Gas/Low Nox)
TWO PIECE WIRE CONNECTOR WITH RETAINER CLIP
BURNER DOOR GASKET
VIEWPORT ASSEMBLY
THERMOCOUPLE
PIEZOELECTRIC IGNITER BUTTON
FLEXIBLE MANIFOLD TUBE
LEGEND
Special anode rod (see "Anode Rod/Water Odor"
section)
Temperature and Pressure Relief Valve is required, but
may not be factory installed
'Pictured on next page.
28
