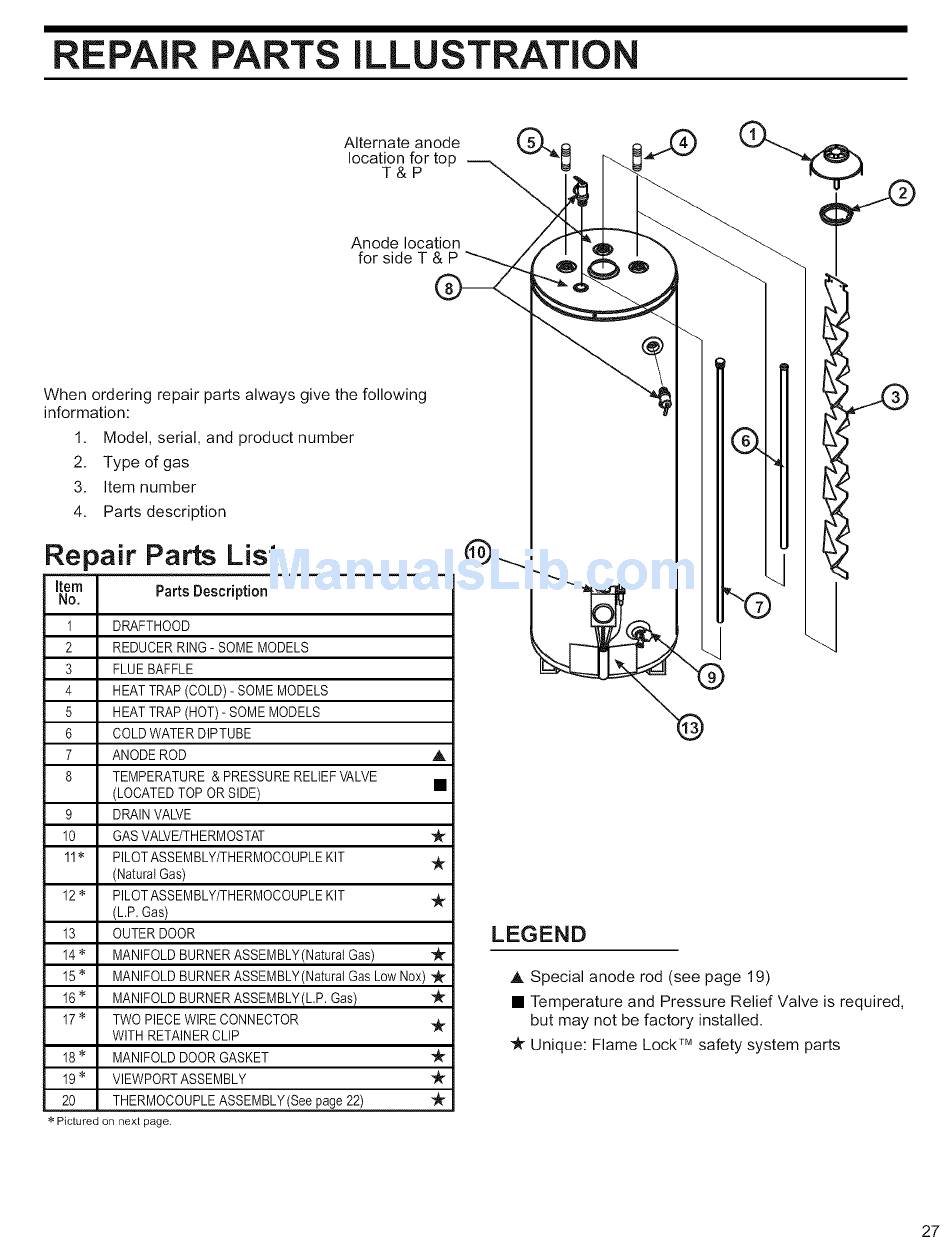

PARTS ILLUSTRAT!
Alternate anode ___
location for top
T&P
Anode location
for side T & P
When ordering repair parts always give the following
information:
1. Model, serial, and product number
2. Type of gas
3. Item number
4. Parts description
Repair Parts List
item Parts Description
No.
1 DRAFTHOOD
2 REDUCERRING - SOMEMODELS
3 FLUEBAFFLE
4 HEATTRAP(COLD)- SOMEMODELS
5 HEATTRAP(HOT)- SOMEMODELS
6 COLDWATERDIPTUBE
7 ANODEROD A,
8 TEMPERATURE& PRESSURE RELIEFVALVE
(LOCATEDTOPOR SIDE) •
9 DRAINVALVE
10 GASVALVE/TH ERMOSTAT _r
11,_ PILOTASSEMBLY/THERMOCOUPLE K IT
(NaturalGas)
12_ PILOTASSEMBLY/THERMOCOUPLE K IT
(L.P.Gas)
13 OUTER DOOR
14'_ MANIFOLDBURNERASSEMBLY(Natural Gas)
15_ MANIFOLDBURNERASSEMBLY(Natural Gas LowNox)
16'_ MANIFOLDBURNERASSEMBLY(L.P.Gas)
17_ TWO PIECEWIRECONNECTOR
WITH RETAINERCLIP
18'_ MANIFOLDDOORGASKET "k
19_ VlEWPORTASSEMBLY
Pictured on next page.
LEGEND
A Special anode rod (see page 19)
• Temperature and Pressure Relief Valve is required,
but may not be factory installed.
Unique: Flame Lock
TM
safety system parts
27
