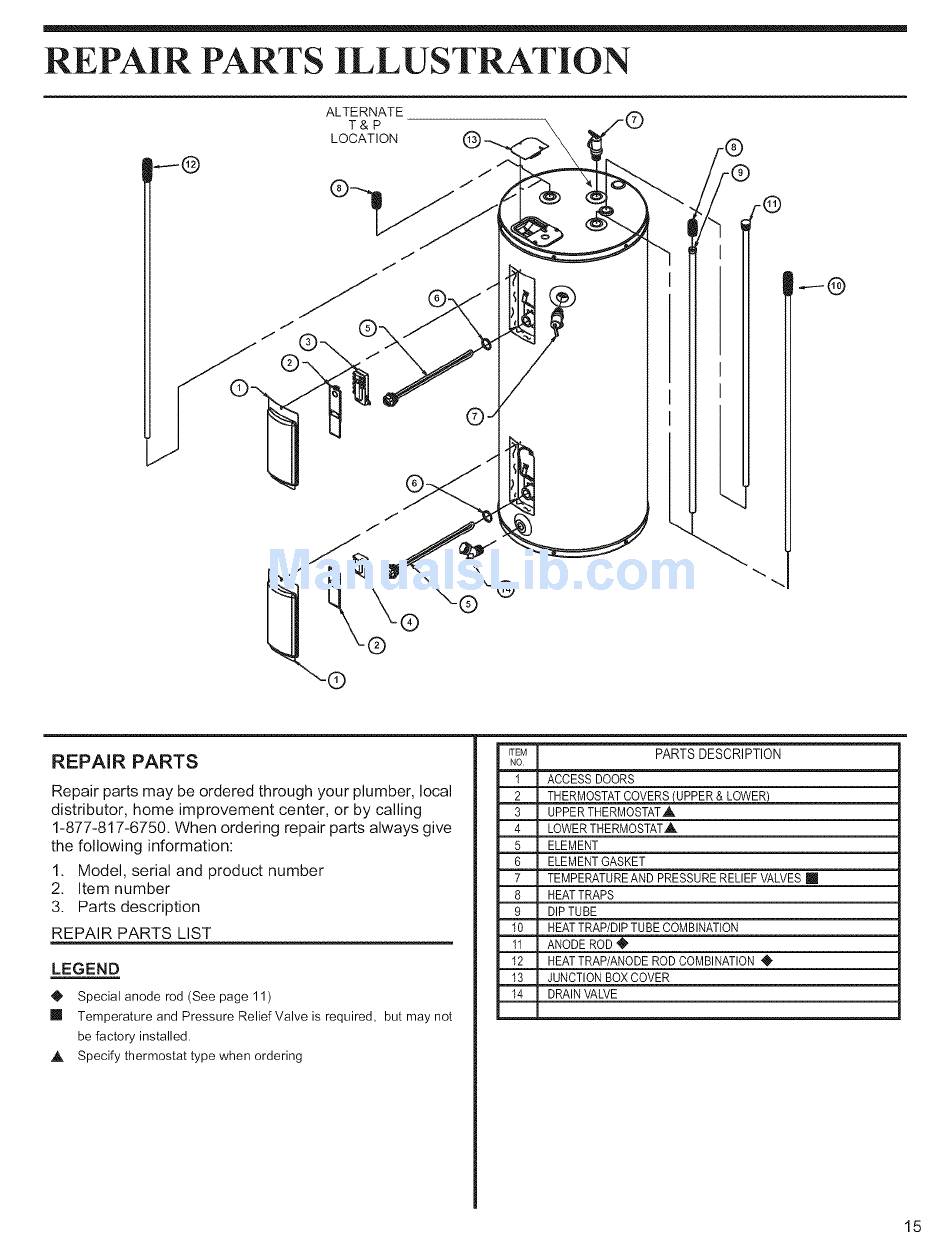

REPAIR
PARTS ILLUSTRATION
.__-@
ALTERNATE
T&P
LOCATION
REPAIR
PARTS
Repair parts may be ordered through your plumber, local
distributor, home improvement center, or by calling
1-877-817-6750. When ordering repair parts always give
the following information:
1. Model, serial and product number
2.
Item number
3. Parts description
REPAIR PARTS LIST
LEGEND
Special anode rod (See page 1 1)
[]
Temperature
and Pressure Relief Valve is required,
but may not
be factory installed.
A
Specify thermostat type when ordering
ITEM
PARTS DESCRIPTION
NO
1
ACCESS DOORS
2
THERMOSTAT COVERS(UPPER& LOWER)
3
UPPERTHERMOSTATA
4
LOWERTHERMOSTATA
5
ELEMENT
6
ELEMENTGASKET
7
TEMPERATURE AND PRESSURERELIEFVALVES []
8
HEATTRAPS
9
DIPTUBE
10
HEATTRAP/DIPTUBECOMBINATION
11
ANODE RODO
12
HEATTRAP/ANODERODCOMBINATION
13
JUNCTIONBOX COVER
14
DRAINVALVE
15
