API The BOX Operator's Manual page 95

API "The BOX"

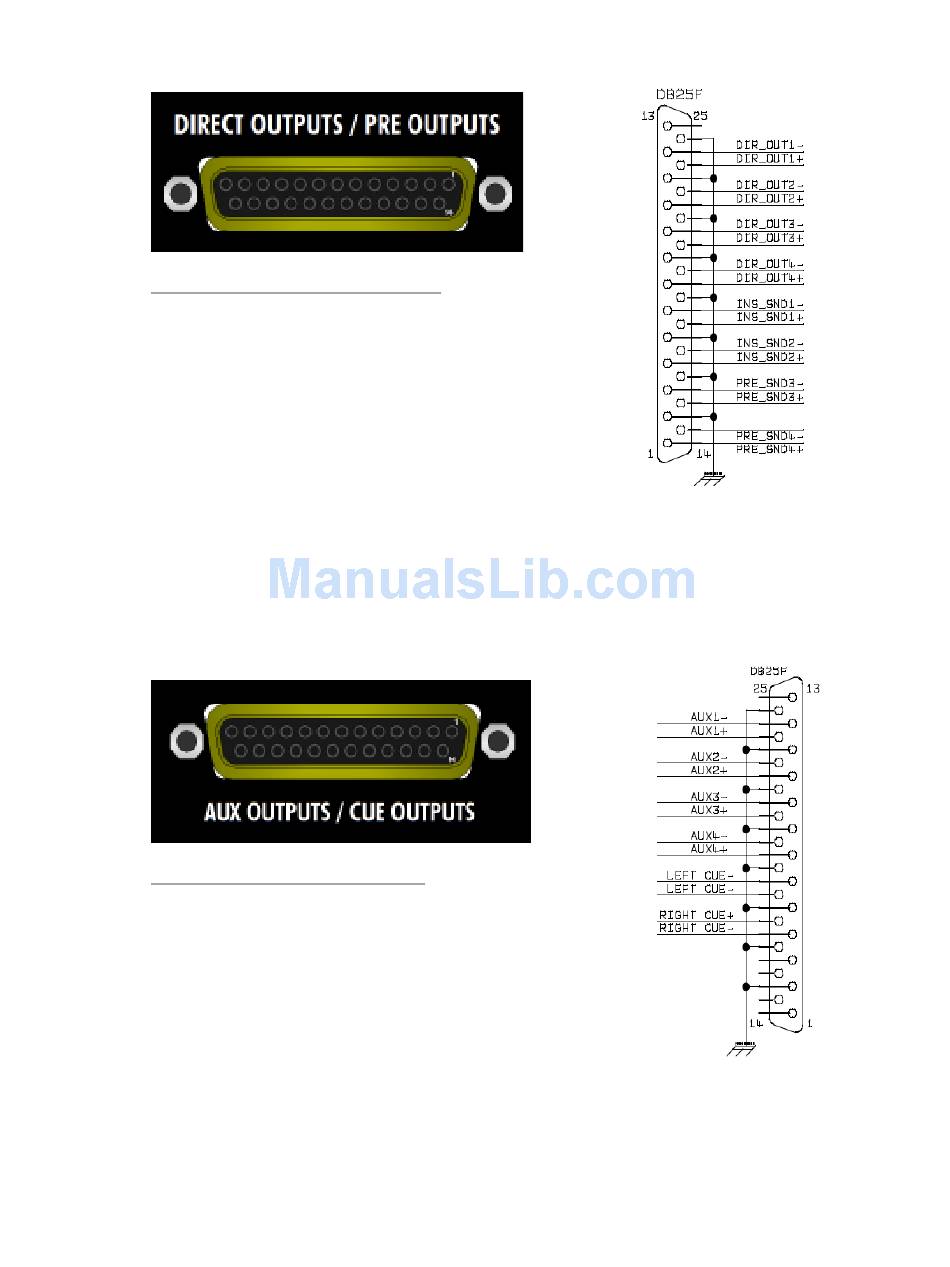

Direct/Preamp Output Connections
DIRECT OUTPUTS/PRE OUTPUTS: Standard = API
•
•
•
•
•
•
•
•
Auxiliary/Cue Output Connections
AUX OUTPUTS / CUE OUTPUTS: API = Standard
•
•
•
•
•
•
•
•
1 = Direct Output / Pre Output 1
2 = Direct Output / Pre Output 2
3 = Direct Output / Pre Output 3
4 = Direct Output / Pre Output 4
5 = Insert Send 1
6 = Insert Send 2
7 = Preamp Output 3
8 = Preamp Output 4
1 = Aux Output 1
2 = Aux Output 2
3 = Aux Output 3
4 = Aux Output 4
5 = Cue Output LEFT
6 = Cue Output RIGHT
7 =
8 =
