13.1 Input Channels 1-4 Connections

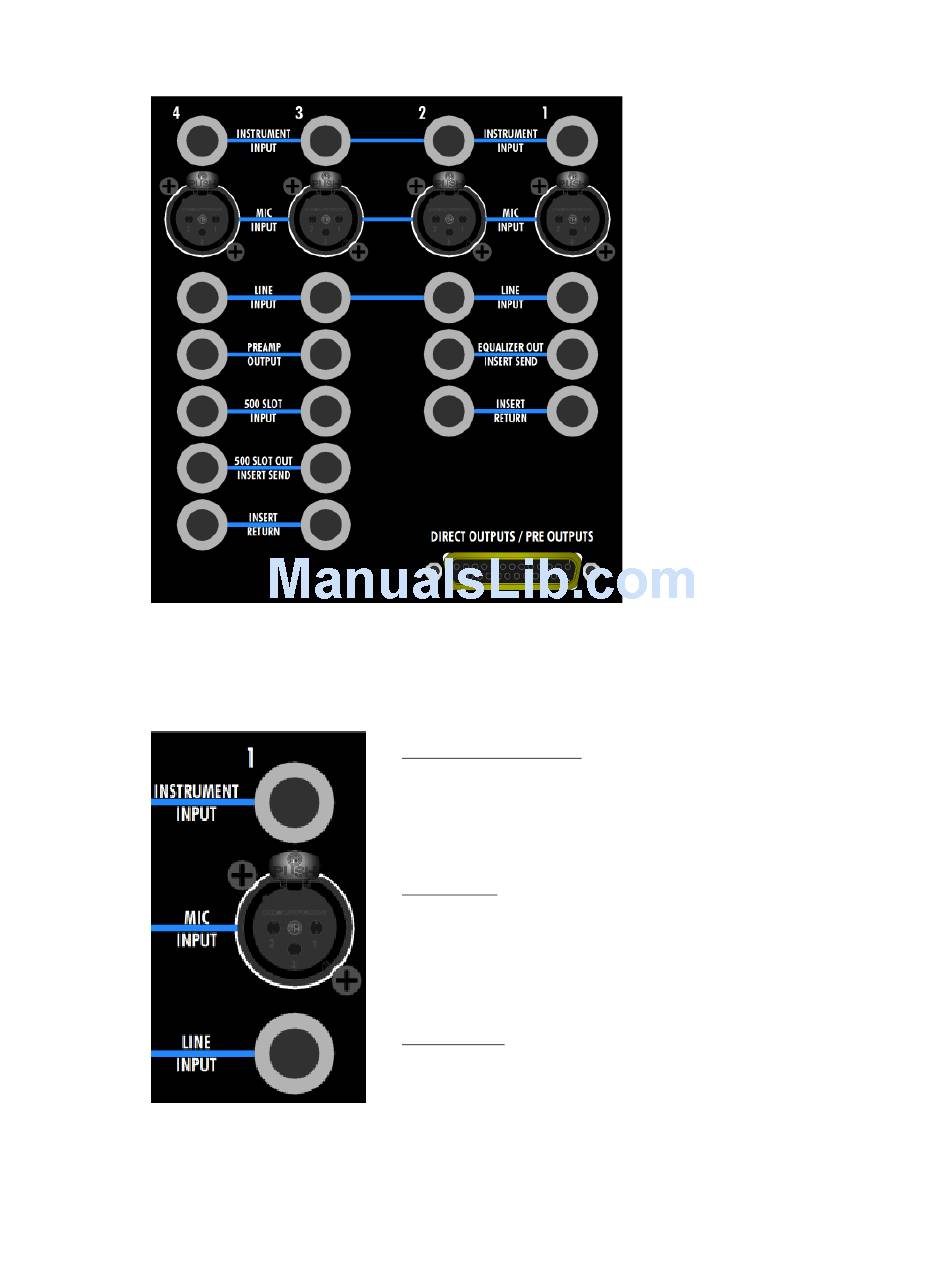

Input Channel Preamp Connections
All four input channels have the same preamp input connections on the rear panel.
INSTRUMENT INPUT: ¼" tip-sleeve, unbalanced, high-
impedance
•
MIC must be engaged to use this input
•
Replaces MIC signal as preamp input
MIC INPUT: 3-pin female XLR, balanced, low-
impedance
•
MIC must be engaged to use this input
•
Provides phantom power when the 48v switch is
engaged
LINE INPUT: ¼" tip-ring-sleeve, balanced, low-
impedance
•
MIC must be disengaged to use this input
75
Operator's Manual
The rear panel provides a
comprehensive and
set of input
connections.
Connections include:
Preamp inputs
•
instrument, and line)
Insert sends and returns
•
Direct outputs / preamp
•
outputs
Preamp output / 500 slot
•
input (channels 3 & 4
only)
flexible
channel
(mic,
