Program Bus Outputs; Program Bus Rear Panel Connections - API The BOX Operator's Manual

API "The BOX"
5.5

Program Bus Outputs

"The BOX" is equipped with stereo, balanced, low-impedance line-level program
outputs terminated with XLR connectors.
5.6

Program Bus Rear Panel Connections

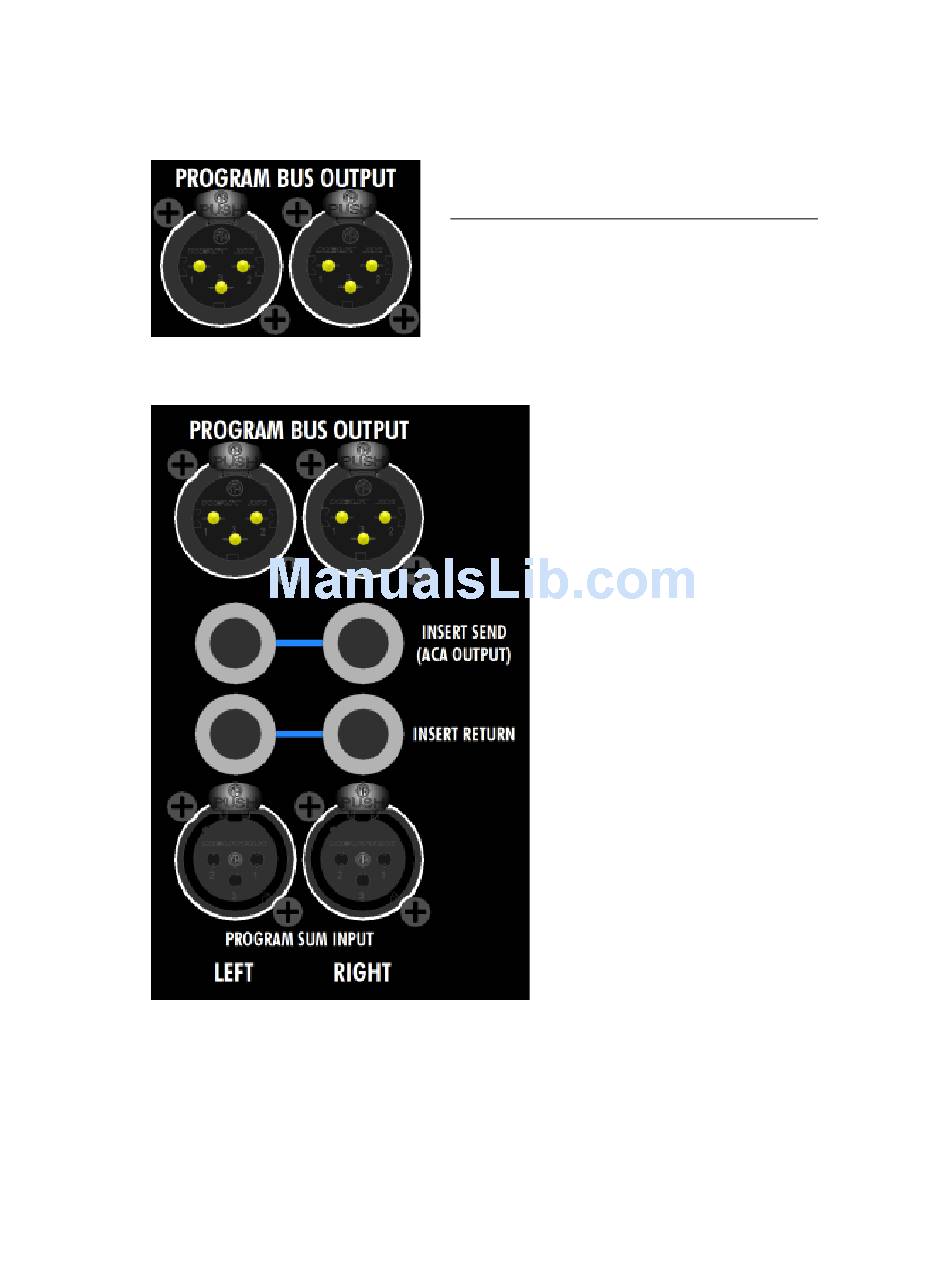

PROGRAM BUS OUTPUT (LEFT & RIGHT): 3-pin male
XLR, balanced, low-impedance, line-level
Located post-master fader
•
The rear panel provides a comprehensive
and flexible set of stereo program master
connections. LEFT and RIGHT program
bus connections include:
Program bus outputs
•
Insert sends
•
Insert returns
•
Program sum input
•
