7.1.1 Aux Master Solos

Each aux master can be soloed using either the AFL or PFL solo mode.
When AFL is the current solo mode, mono aux masters 1 & 2 feed the LEFT and RIGHT
sides of the stereo AFL solo bus in mono. Stereo aux master 3-4 feeds the output of
aux bus 3 to LEFT and aux bus 4 to RIGHT. The AFL solo bus is fed immediately after
the aux master potentiometers.
When PFL is the current solo mode, mono aux masters 1 & 2 feed the mono PFL solo
bus in mono. The stereo aux master 3-4 outputs are summed together and fed to the
PFL solo bus in mono. Even though the console is in PFL, the PFL solo bus is fed
immediately after the AUX MASTER potentiometers.
NOTE: When solo-in-place (SIP) is the current solo mode, engaging an aux master
7.2

Auxiliary Master Rear Panel Connections

AFL SOLO switch will activate the current PFL or AFL solo function. The solo
function is determined by the position of the AFL switch in the solo master
section. Engaging an aux master AFL SOLO while in SIP mode will not active
SIP mutes on channels.

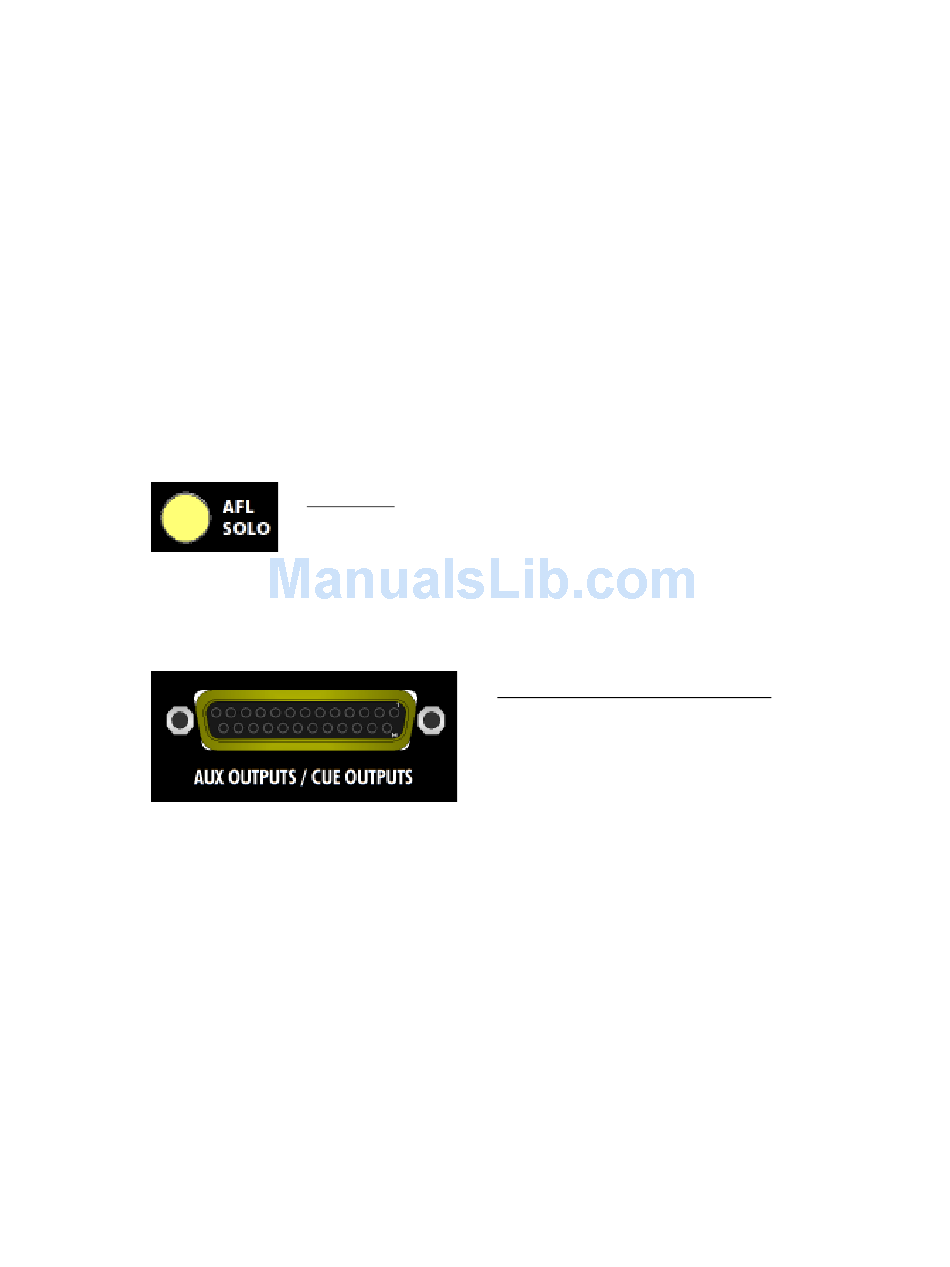

AFL SOLO: Activates the AFL or PFL solo function when engaged
Labeled AFL because the selected solo bus is always fed after
•
the aux master pot (no PFL solo function on aux masters)
Can be cleared by pressing the SOLO CLEAR button
•
Illuminates when engaged
•
AUX OUTPUTS / CUE OUTPUTS: DB-25, balanced,
low-impedance, line-level
•
Fed from the aux and cue masters
•
Standard pin-out:
5-6=cue outputs L-R
•
59
Operator's Manual
1-4=aux outputs 1-4,
