API "The BOX"
3.4

Auxiliary Sends

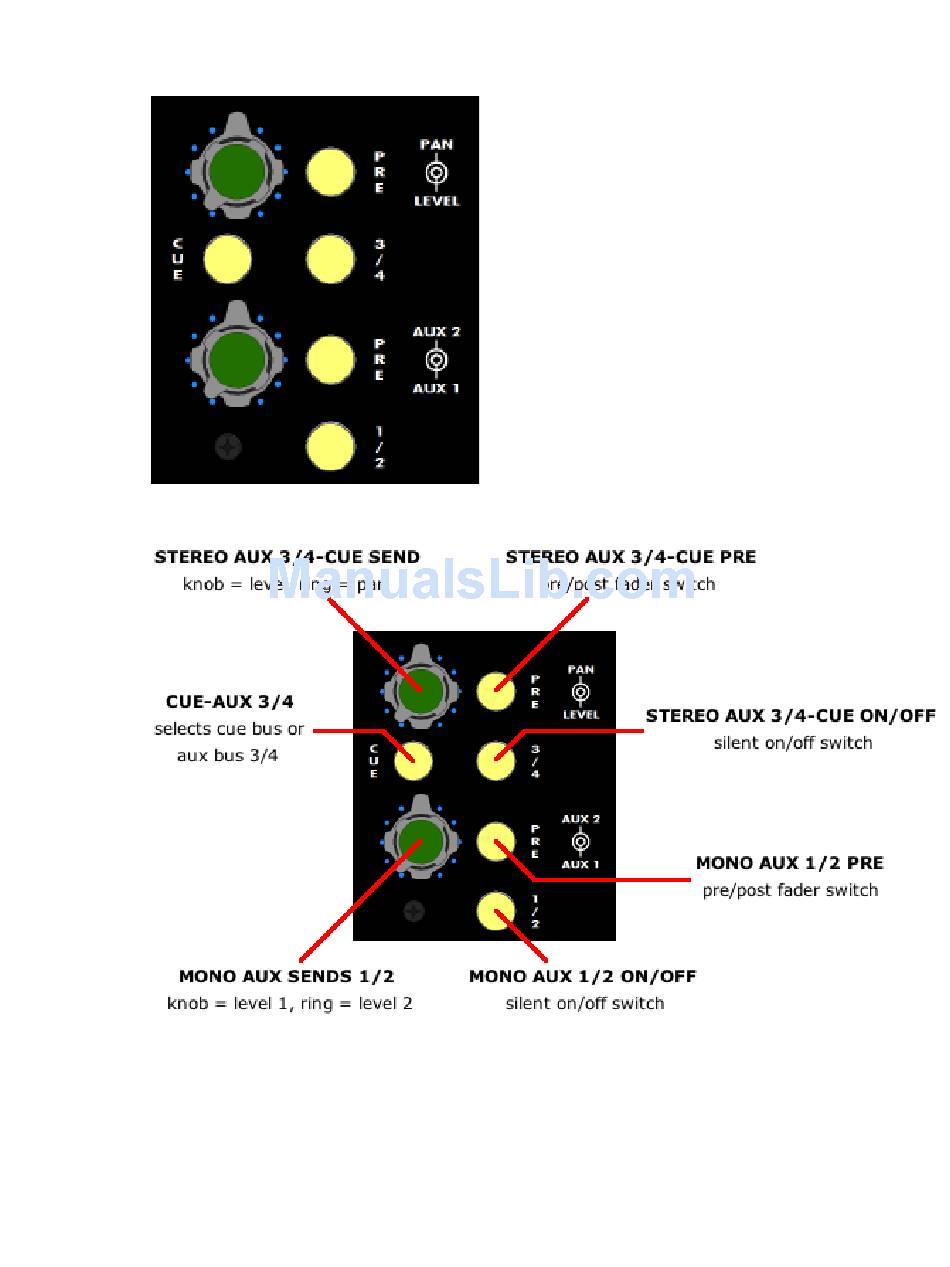

Auxiliary/Cue Controls

3.4.1 Mono Aux Sends 1/2

AUX 1 and AUX 2 are mono auxiliary sends that feed aux buses 1 and 2. These sends
are commonly used as effects sends, but can be used for additional headphone feed or
other purposes.
A common on/off switch is used to silently engage both mono sends. The post-fader
signal feeds AUX 1/2 by default, but the pair can be switched to the pre-fader signal.
"The BOX" is equipped with four (4) auxiliary
sends fed by two (2) mono auxiliary sends
(1/2), and one (1) stereo auxiliary/cue send
(3/4).
Each pair of
routing and an on/off switch. The stereo aux
send (3/4) can be routed to feed the stereo
cue bus instead of aux buses 3 & 4.
To support these sends,
equipped with four auxiliary buses, a stereo
cue bus, and corresponding masters with
balanced outputs.
38
Operator's Manual
sends has pre/post-fader
"The BOX" is
