Control Room Monitor/Headphone Output Connections - API The BOX Operator's Manual

API "The BOX"

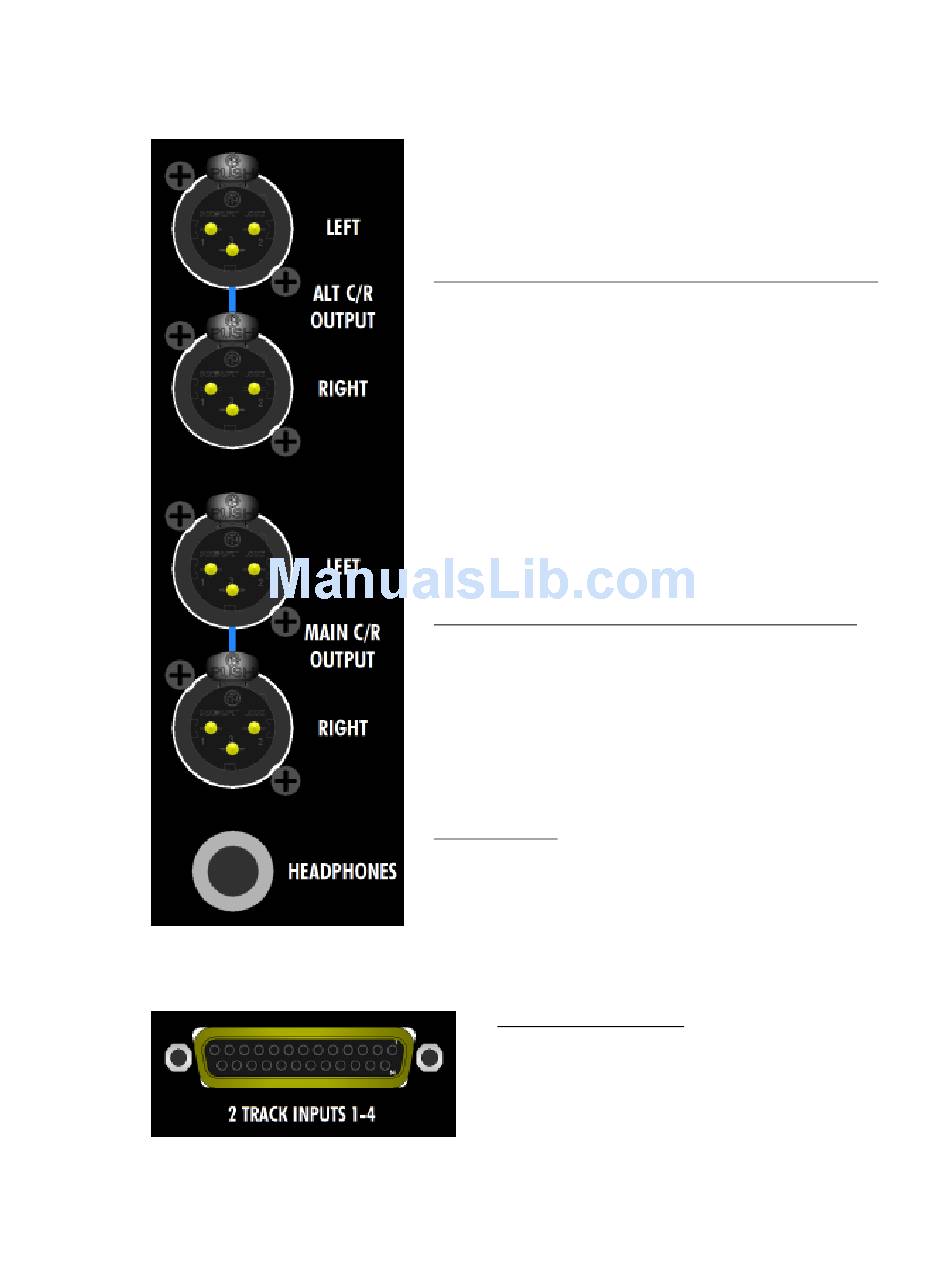

13.5 Control Room Monitor/Headphone Output Connections

Loudspeaker and Headphone Output Connections
External 2-Track Input Connections
ALT C/R OUTPUT (alternate control room outputs): 3-
pin male XLR, balanced, low-impedance, line-level
LEFT & RIGHT stereo outputs
•
Fed from the C/R LEVEL and ALT TRIM when
•
ALT is engaged
MAIN C/R OUTPUT (main control room outputs): 3-
pin male XLR, balanced, low-impedance, line-level
LEFT & RIGHT stereo outputs
•
Fed from the C/R LEVEL when ALT is not
•
engaged
HEADPHONES: ¼" tip-ring-sleeve headphone jack
LEFT & RIGHT stereo output
•
Fed from headphone amp outputs when ON is
•
engaged
Second headphone jack under armrest
•
2 TRACK INPUTS 1-4: DB-25, balanced, low-
impedance, line-level
•
Standard pin-out:
2-TRACK 2, 5-6=2-TRACK 3, 8-7=2-TRACK 4
•
Routed to the C/R SOURCE and CUE
SOURCE selectors
81
Operator's Manual
1-2=2-TRACK 1, 3-4=
