2.2.5 Meter and Meter Routing

Input channels are equipped with an 8-segment LED full-scale meter. The meter
displays the post-fader output from the channel by default, but can be switched to
display the output of the preamp. A calibration trim-pot is provided so 0dBFS on the
meter matches 0dBFS in the connected DAW.

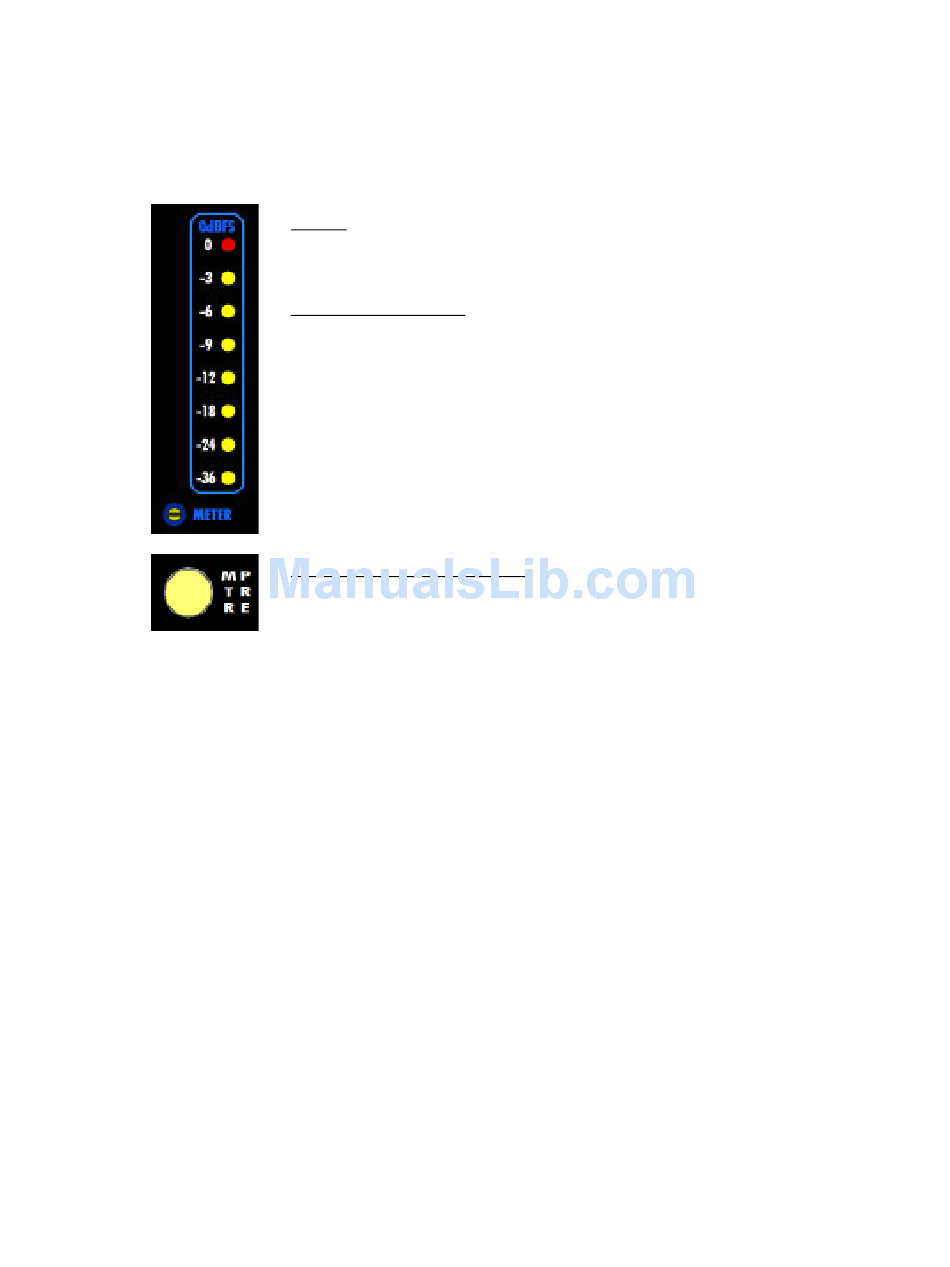

0dBFS: 8-segment LED full-scale meter
Indicates post-fader, channel output level by default
•
Indicates preamp output level when MTR PRE is engaged
•
METER (calibration): Meter calibration trim-pot
Calibrates the meter to match 0dBFS on the DAW converter
•
MTR PRE (meter preamp): Replaces the output of the fader with the
output of the preamp as the meter source
Default meter feed is post-fader, channel output if not engaged
•
Illuminates when engaged
•
