Description

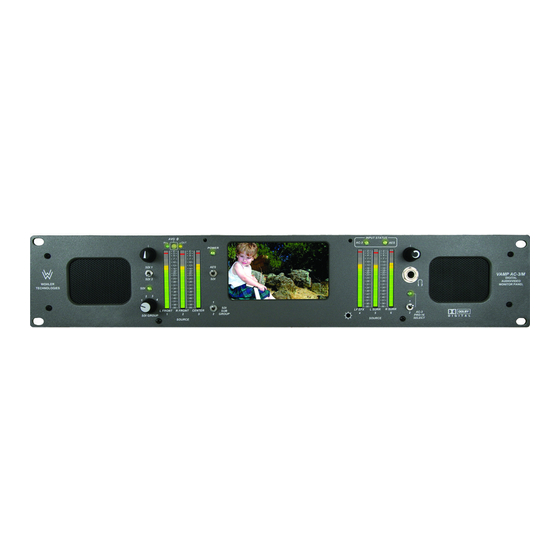

The VAMP AC-3/M is a complete integrated 6 channel
Dolby Digital audio and composite video monitoring
system as well as professional level metering in a
compact two rack space cabinet. A 4.3" widescreen
color active matrix TFT LCD displays all formats of
HD-SDI video from two auto-sensing HD/SD-SDI
inputs with re-clocked output.
The VAMP AC-3/M features six 53 segment high-
resolution tri-color LED level meters showing
simultaneous VU and PPM for superior level-
metering. Output limiter circuits are incorporated to
protect the speakers, and extensive magnetic
shielding allows placement immediately adjacent to
video monitors with no color impurities.
Features
4.3" 16:9 format color LCD video screen
Six high-resolution 53-segment level meters showing
simultaneous VU and PPM
Benefits
Hear and see up to 6 channels of audio
simultaneously
Powerful 100dB SPL at 2 feet (0.6m)
Order Part Number
VAMP AC-3M: 8003-00070
VAMP AC-3/M
6-CHANNEL HD/SD-SDI DOLBY AUDIO/VIDEO MONITOR
The unique design provides optimally focused sound
for operators in an ultra near field (1 to 3 ft.) working
environment and offers performance comparable to
that of many separate monitor pairs, yet does so
without the installation hassles, awkward speaker
placements and "added-on" look. This provides for a
higher SPL for the operator while reducing overall
ambient sound and adjacent bay crosstalk. Extended
HF response reveals potential problems with audio
whine or hiss and electronic rather than acoustic
cancellation of bass frequencies provides positive
audible detection of out-of-phase (reversed polarity)
audio feeds.
Premium quality drivers and power amplifiers
Output limiter protected speakers
Focused Sound, Reduces Adjacent Bay Crosstalk
Includes an internal Dolby Digital AC-3 decoder
